Outdoor GYTA53 2-288cores Armoured Optical Fiber Cable
Outdoor GYTA53 2-288cores Armoured Optical Fiber Cable
Outdoor GYTA53 2-288cores Armoured Optical Fiber Cable
Outdoor GYTA53 2-288cores Armoured Optical Fiber Cable
Specifications
Brand Name :
Jiqian
Model Number :
GYTA53
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union,Alipay
Supply Ability :
4500 per month
Delivery Time :
3-5 days,it depends on order quantity
Packaging Details :
Wooden drum
Laying mode :
Direct burial
Suitable temperature :
- 40℃~ +60℃
Central strength member :
metallic tape
Number of fiber :
2-288
Manufacturer :
Yes
Description

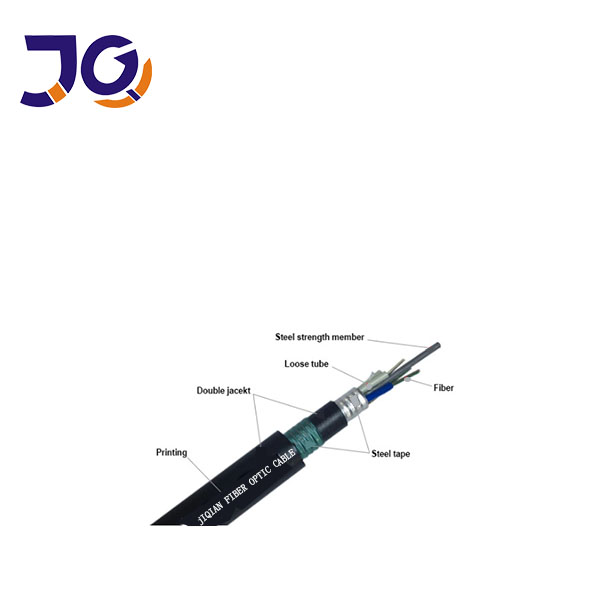

Outdoor Armoured Direct Burial Stranded Loose Tube Cable Fiber Optical Cable

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Outdoor GYTA53 2-288cores Armoured Optical Fiber Cable

Characteristics

  1. Steel wire strength filler protect tube fiber. Steel tape armord.
  2. Good ultra violet radiation resistant property.
  3. Double sheath and Double armored .
  4. Good moisture resistance.

Application

1. Direct burial

2. Underground

Item Parameters
Loose tube Material PBT
Color All colors display
Filler Material PE
Color Black
CSM Material Phosphating steel wire
Inner armoured Material Plastic coated aluminum strip
Inner jacket Material MDPE
Color Black
Outer armoured Material Plastic coated steel strip
Outer jacket Material MDPE
Color Black
Min. bending radius Static 12.5 times cable diameter
Dynamic 25 times cable diameter
Repeating bending Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Tensile performance Short term 3000N
Crush Short term 3000N/100mm
Torsion Load:250N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.


FAQ

1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
