Non-Metal GYFTY53 Underground Fiber Optic Cable
Non-Metal GYFTY53 Underground Fiber Optic Cable
Non-Metal GYFTY53 Underground Fiber Optic Cable
Non-Metal GYFTY53 Underground Fiber Optic Cable
Non-Metal GYFTY53 Underground Fiber Optic Cable
Non-Metal GYFTY53 Underground Fiber Optic Cable
Specifications
Brand Name :
JQ/OEM
Model Number :
GYFTY53-24 core
Certification :
ISO9001
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30km per day
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber count :
2-288 Cores
Fiber type :
YOFC,Fiberhome or request
Jacket :
PE
Color :
Black
Product name :
Outdoor fiber optic cable
Structure :
Loose tube
Installation :
Aerial or Duct
Strength member :
FRP
Oem :
Available
Operating temperature :
-40 ~ +60 C
Description

Fiber Optic Cable Outdoor Stranded Loose Tube GYFTY53 Non-Metal Fiber Optic Cable

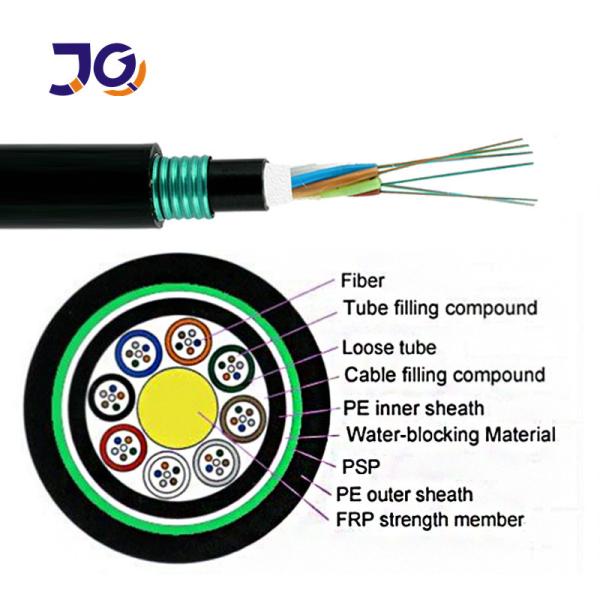

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.
Non-Metal GYFTY53 Underground Fiber Optic Cable
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof
Water-blocking material

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHz-km

2200MHz-km

@1300nm

21000MHz-km

2600MHz-km

NumericalAperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

Cable Parameters

Items Specifications
Fiber Count 24fibers
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 2.0mm±0.2mm
Material FRP
Double Outer Jacket Dimension 10.0mm±0.2mm
Material PE
Color Black

Technical Data

Fiber count

Nominal

Diameter(mm)

Nominal

weight(kg/km)

Max

Fibers per

Tube

No.of

(Tube+fillers)

AllowableTensile Load

(N/100mm)

Allowable Crush

Resistance(N/100mm)

short

Term

long

term

short

Term

long term

2~36

10.2

125

12

6

3000

1000

3000

1000

36~72

15.1

212

12

6

3000

1000

3000

1000

74~96

16.3

246

12

8

3000

1000

3000

1000

98~120

17.8

288

12

10

3000

1000

3000

1000

122~144

19.4

336

12

12

3000

1000

3000

1000

>144

Design according to the customer request
Application
Used for Interbuilding voice or data communication backbone,Installed in duct,underground conduit.
Packing

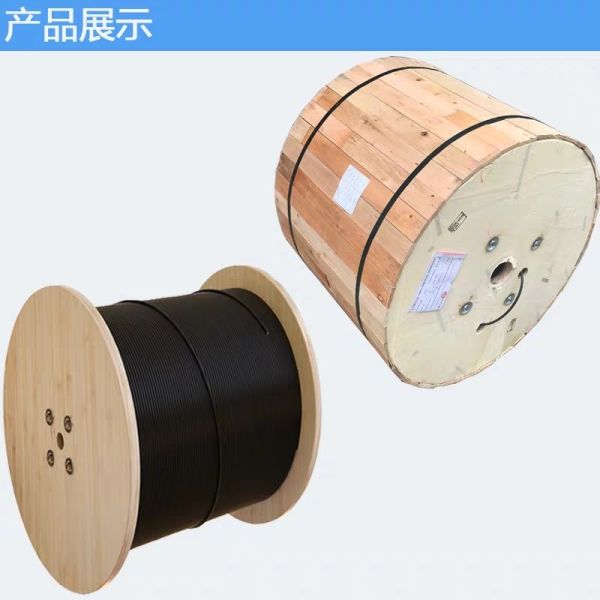

1/2/3/4km or customized length export wooden drum
Non-Metal GYFTY53 Underground Fiber Optic Cable
Non-Metal GYFTY53 Underground Fiber Optic Cable

FAQ

1.Are you tradning company or manufacturer?

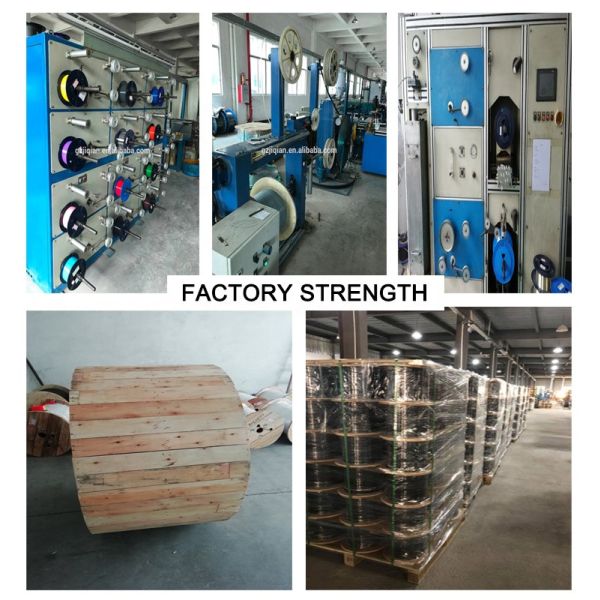

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
