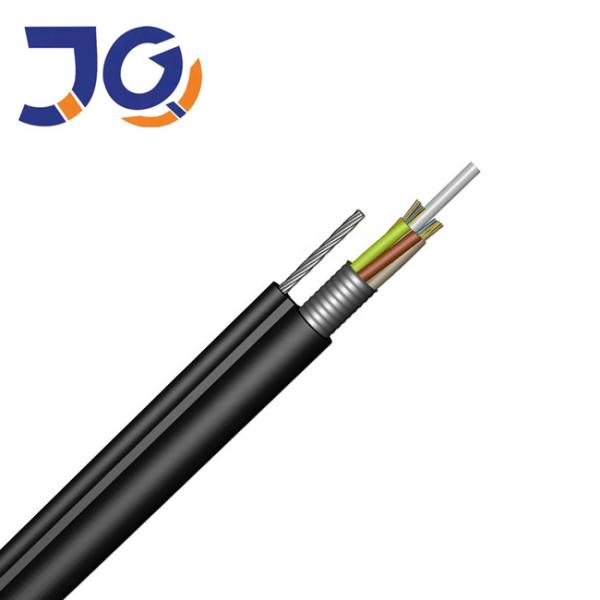

ODM Black PE Jacket Fiberhome Outdoor Fiber Optic Cable 4 6 8 12 Cores
ODM Black PE Jacket Fiberhome Outdoor Fiber Optic Cable 4 6 8 12 Cores
ODM Black PE Jacket Fiberhome Outdoor Fiber Optic Cable 4 6 8 12 Cores
ODM Black PE Jacket Fiberhome Outdoor Fiber Optic Cable 4 6 8 12 Cores
Specifications
Brand Name :
Jiqian
Model Number :
GYXTW
Certification :
ISO 9001/CE/FCC/ROHS
Place of Origin :
China
MOQ :
1km
Payment Terms :
L/C, T/T,Alipay, Western Union
Supply Ability :
6000km
Delivery Time :
5-7 days,it depends on order quantity
Packaging Details :
Plywood drum
Cable brand :
Jiqian
Number of Conductors :
12
Application :
Duct/aerial
Fiber type :
Fiberhome/YOFC
Suitable temperature :
-40+60
Mode field diameter :
1310nm 9.2±0.4μm
Outer jacket :
PE
Jacket Color :
Black
Service :
OEM, ODM
Description

ODM Black PE Jacket Fiberhome Outdoor Fiber Optic Cable 4 6 8 12 Cores

Description of Outdoor Fiber Optic Cable

Fiber optic cables are a cost-effective alternative to time-consuming field terminals designed for high-density fiber optic wiring in data centers that need to save space and reduce cable management issues.

Specification of Fiber Optic Cable G652D

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.8
Cladding diameter μm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error μm ≤0.5
Coating diameter μm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error μm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.36
1550nm dB/ks ≤0.22
Proof stress level kpsi ≥100

Cable performance:

Item Parameter
Fiber Count 12
Colored coated fiber Dimension 250µm±15µm
Color Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube Dimension 2.2mm±0.1mm
Material PBT
Color nature
Filler Material none
Color none
Strength Member Dimension 0.7mm±0.05mm
Material Phosphating steel wire
Armoured Material Plastic coated steel strip
Outer jacket Material PE
Color Black

Application of Fiber Optic Cable

1. LAN, WAN and Metro Networks

2. FTTH project & FTTX Deployments

3. CATV System

4. GPON, EPON

5. Fiber Optic Test Equipment

6. Data-base Transmit Broadband Net

ODM Black PE Jacket Fiberhome Outdoor Fiber Optic Cable 4 6 8 12 Cores

The reason why Choose us:

1. On time delivery

2. Customization

3. Factory outlet

4. Large product inventory with massive production line

5. Quality guarantee

6. Product distribution involves multi-fields, dozens of countries including some developed countries.

FAQ:

1. Q: Are you a factory or trade company?
A: We are a factory
2. Q: What is the MOQ?

A: The MOQ of Fiber Optic cable is 1km.

3. Q: Which brand of fiber do you use?

A: Corning,YOFC,Fiberhome,etc

4. Q: Can you accept small order?
A: Yes, small order is available .We support new project of our customers as we know business is always from small order.

5. Q: What’s delivery time?
A:The general delivery time is 5-7 days,It depends on the order quantity.

6.Q: Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.Q: What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
