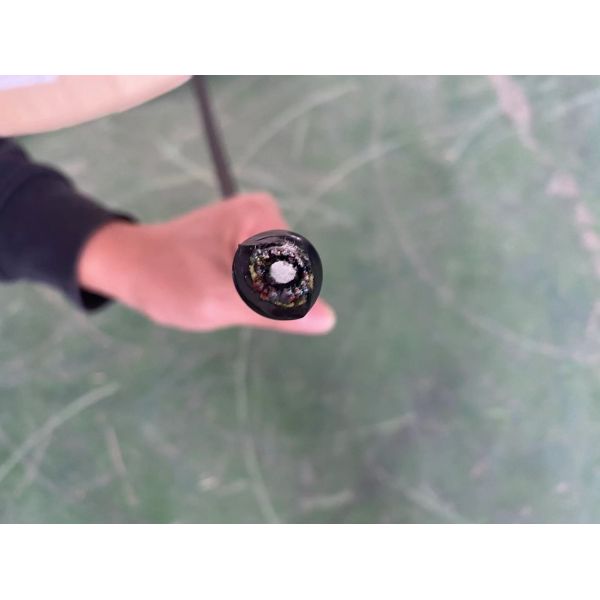

ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable
ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable
ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable
ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable
ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable
ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable
ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable
ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable
Specifications
Brand Name :
Jiqian/OEM
Model Number :
ADSS-96B1.3
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber count :
4-144 Core
Length :
4km/Plywooden drum
Name :
ADSS Optical Fiber Cable
Strength member :
FRP&Armid yarn
Span :
100-400m Span
Installation :
Aerial
Fillers :
PP
Outer sheath :
PE or AT (anti-tracking)
Outer diameter :
11.8-12mm
Loose tube :
PBT
Description

ADSS Optical Cable 4000m/Roll Self Supporting 96 Core Fiber Optic Cable

Description of ADSS Cable

ADSS Completely metal-free design with fiber counts from 12 to 288 fibers, suitable for deployment near high-voltage power lines in long spans. These cables can be installed in short spans between aerial poles without a separate messenger upon which to attach the optical cable. Also available in mid and long-length spans.

ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable

Application of ADSS Cable

● Electric utility transmission and distribution power lines – Typically framed under conductors

● Enterprise OSP networks

● Fiber-to-the-X networks

● Aerial networking system

Cable printing : OEM Service

ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic CableADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable


Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Structure parameters:
Fiber count Structure Fibers per tube Loose tube diameter
(mm)		 CSM diameter/pad diameter(mm) Thickness of outer jacket(mm) Cable diameter(mm) Cable weight
(kg/km)
4 1+5 4 2.0±0.1 2.3/2.3 1.7±0.1 10.5±0.5 80
6 1+5 6 2.0±0.1 2.3/2.3 1.7±0.1 10.5±0.5 81
8 1+5 4 2.0±0.1 2.3/2.3 1.7±0.1 10.5±0.5 81
12 1+5 12 2.0±0.1 2.3/2.3 1.7±0.1 10.5±0.5 81
24 1+5 12 2.0±0.1 2.3/2.3 1.7±0.1 10.5±0.5 83
36 1+5 12 2.0±0.1 2.3/2.3 1.7±0.1 10.5±0.5 83
48 1+5 12 2.2±0.1 2.6/2.6 1.7±0.1 11.3±0.5 97
72 1+5 12 2.2±0.1 2.6/2.6 1.7±0.1 11.3±0.5 98
96 1+8 12 2.2±0.1 3.0/3.9 1.7±0.1 12.5±0.5 122

Packaging
4km per plywood drum or customized


Lead time:
Order quantity 100-300km 5-7days More 300km Negotiable

ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable

ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable
