Self Supporting Aerial no metal ADSS Fiber Optic Cable 12 /24/48 cores Span 200m

product desctirption
All-dieletirc self-supporting optical cable (ADSS) has no metal, tension resistance, self-supporting, high insulation, no induction, small diameter, light, easy construction and economic. It is a combination of optical fiber bundle wound on the center reinforcement, through insulation, waterproof, reinforcement, sheath and other protective measures made.

Characteristics
· Can be installed without shutting off the power
· Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
· Light weight and small diameter reducing the load caused by ice and wind and the load on towers
and backprops
· Large span lengths and the largest span is over 1000m
· Good performance of tensile strength and temperature
· The design life span is 30 years
·Application
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
·Standards
ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.

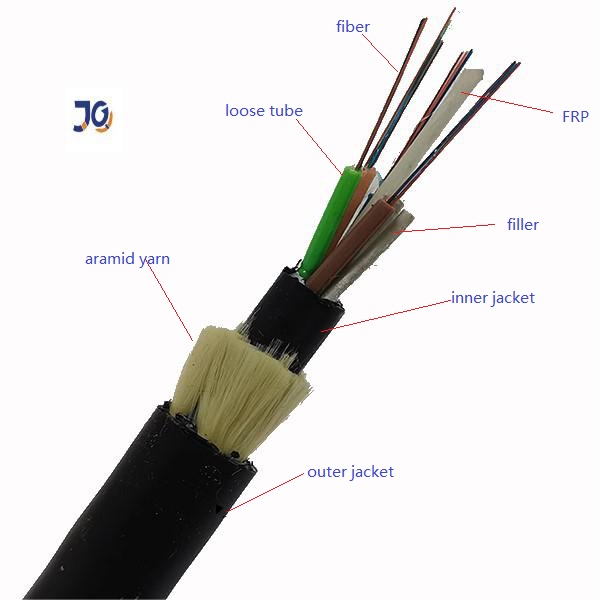

ADSS detail pictures showes:



single jacket ADSS



double jackets ADSS


ADSS data sheets

Structure and Technical Specifications ADSS-SJ(50-150M)

Structure and Technical Specifications ADSS-DJ(50-750M)

Optical characteristic

FAQ
1. Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2. About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4. What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.











Application: Self-supporting overhead
