12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
Specifications
Brand Name :
JQ or Customized
Model Number :
ADSS-24/48/72/96 hilos
Certification :
ISO9001 CE ROHS Rohs FCC
Place of Origin :
Guangdong China
MOQ :
8km
Payment Terms :
T/T, Western Union,Alipay, MoneyGram, L/C
Supply Ability :
800KM per day
Delivery Time :
about 12 days
Packaging Details :
Wooden drum or Iron drum
Application :
outdoor aerial, FTTH FTTB FTTX Network
fiber counts :
4-288 cores
span :
50m /100m /200 m /300m /400m or Customized
fiber per tube :
4/6/8/12/F
OEM :
acceptable
strength number :
FRP, Kevlar Aramid Yarn
structure :
Stranded Loose Tube
jacket color :
Black or Customized
Operating temperature :
-40℃ to +80℃
Fiber type :
G652D, OM1, G657, OM4, OM5
Jacket material :
PE, MDPE, LSZH
Description

12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS

What is ADSS Cable?

The All-Dielectric Self Supporting (ADSS) cable is a completely non-metallic structure in which the tensile load bearing elements are integral within the circular design of the cable - usually in the form of aramid yarns or stranded glass reinforced plastic rods. The fibres can be packaged in a variety of ways but are usually placed in polymer tubes which are then protected within the overall cable construction. (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fiber optic network.

advantages of ADSS

The use of ADSS fiber optic cable has lots of advantages. The cables’ overall weight and diameter are small, which is good news for towers and poles. Moisture and chemical attack are protected by the rugged construction. It’s a versatile application that can be used for most outdoor overhead deployments. The overall transmission range is also sufficient. Once ADSS cable installation is done, it will have a maximum service life of up to thirty years.

·Application

1. Electricity companies, telecommunications companies, railways and private network groups for telecommunications

2. Designed for installation on distribution and transmission lines

3. Can be installed close to conductors

4. Ideal for underbuilt applications that require minimal downtime

5. For telecommunications networks that place a premium on quick, low-cost setup

6. For FTTX applications such as FTTH (Fiber to the Home)

·Standards

ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.

Structure and Technical Specifications

1. ADSS single jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.95 2.0/2.0 1.7±0.1 9.8 80 90
6 1+5 6 1.95 2.0/2.0 1.7±0.1 9.8 80 90
8 1+5 4 1.95 2.0/2.0 1.7±0.1 9.8 80 90
12 1+5 6 1.95 2.0/2.0 1.7±0.1 9.8 80 90
24 1+5 6 2.0 2.0/2.0 1.7±0.1 9.8 85 95
48 1+5 12 2.0 2.0/2.0 1.7±0.1 10.0 88 98
72 1+6 12 2.2 2.0/2.0 1.7±0.1 10.5 98 108
96 1+8 12 2.2 2.0/3.4 1.7±0.1 12.0 122 135
144 1+12 12 2.2 3.0/7.2 1.7±0.1 15.2 176 189

Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.

2. ADSS double jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
6 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
8 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
12 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
24 1+5 6 2.0 2.0/2.0 1.7±0.1 12.0 128 138
48 1+5 12 2.0 2.0/2.0 1.7±0.1 12.5 130 140
72 1+6 12 2.2 2.0/2.0 1.7±0.1 13.2 145 155
96 1+8 12 2.2 2.0/3.4 1.7±0.1 14.5 185 195
144 1+12 12 2.2 3.0/7.2 1.7±0.1 16.5 212 228

Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.

Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---

Details picture shows

12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS

single jacket ADSS fiber cable

12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS

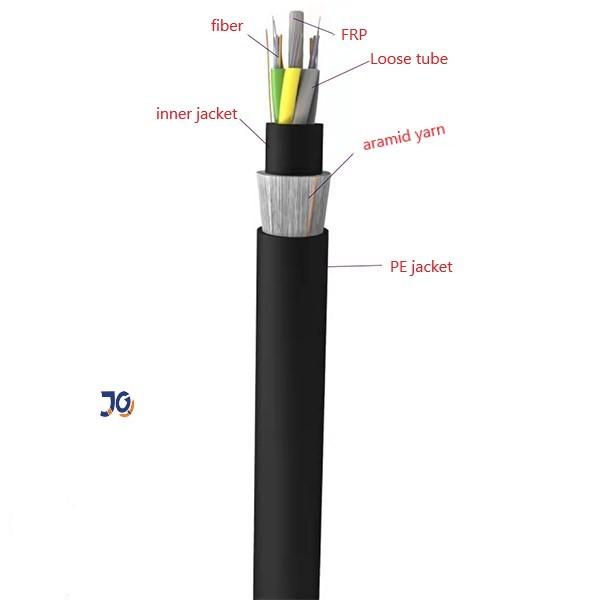

double jacket ADSS fiber optic cable

12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS

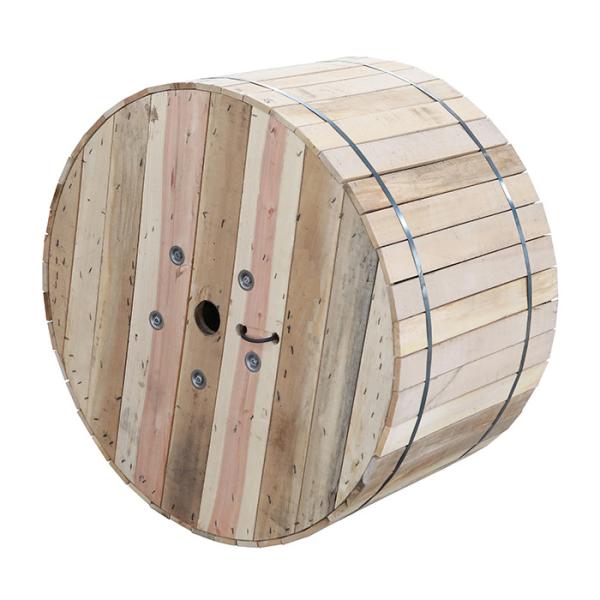

Packing:

12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS

FAQ

1. Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2. About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3. Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4. What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5. Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
