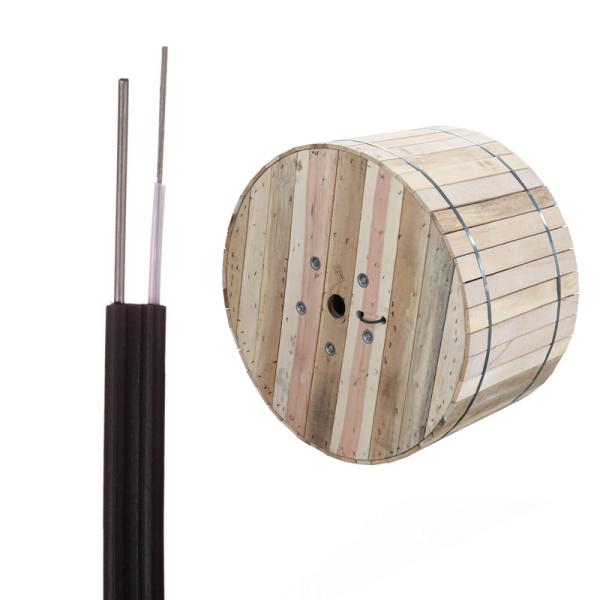

12 Core Figure 8 Fiber Optic Cable GYXTC8S GYXTC8Y
12 Core Figure 8 Fiber Optic Cable GYXTC8S GYXTC8Y
12 Core Figure 8 Fiber Optic Cable GYXTC8S GYXTC8Y
12 Core Figure 8 Fiber Optic Cable GYXTC8S GYXTC8Y
Specifications
Brand Name :
JQ/OEM
Model Number :
GYXTC8Y-12B1
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber type :
YOFC/Fiberhome or as request
Color :
Black
Messenger wire :
7*1.0mm stranded steel wire
Structure :
Figure 8
Type :
Singlemode
Jacket :
PE
Oem :
Available
Installation :
Outdoor Aerial Self-supporting
Product name :
Outdoor Optic Fiber Cable/Figure 8 cable
Length :
2km or customized length
Fiber count :
2/4/6/8/12/24 Core

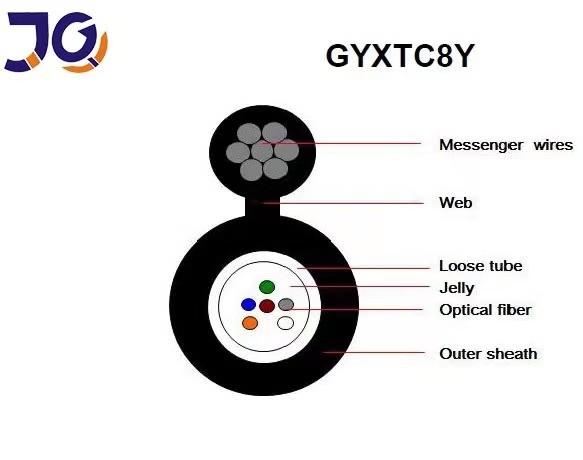

Description

Fo 12 Central Tube Cable 12 Core Aerial Fiber Optic Cable GYXTC8S GYXTC8Y

Fiber:

2-24 fibers
Uni-loose tube gel-filled


Armor:
Steel wire


OuterJacket:
Black UV-and moisture-resistant polyethylene (PE)

Features

Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design
Self-supporting Figure 8 design.

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Technical Parameters

Fiber
Count		 Cable
Diameter(mm)		 Cable Weight
kg/km)		 Tensile Strength
Long/Short
Term (N)		 Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)
2~12 7.0mm*14.5(+/-0.2mm) 105 4000/5000 1000/3000 10D/20D
14~24 7.0mm*14.5(+/-0.2mm) 115 4000/5000 1000/3000 10D/20D


Picture Show

12 Core Figure 8 Fiber Optic Cable GYXTC8S GYXTC8Y

12 Core Figure 8 Fiber Optic Cable GYXTC8S GYXTC8Y

12 Core Figure 8 Fiber Optic Cable GYXTC8S GYXTC8Y

Packing & Delivery

12 Core Figure 8 Fiber Optic Cable GYXTC8S GYXTC8Y

Packaing detail:

1km/ 2km/3km/4km/5km per wooden drum

Shipping:

By sea/by air or express delivery,it depends on the order quantity

Lead time:

Quantity(km) 1-300 Above 300
Earliest time(day) 5-7 Negotiable
