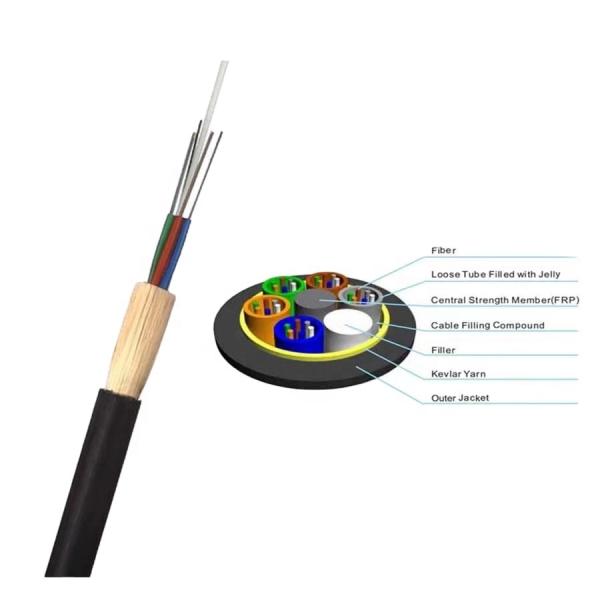

ADSS Self - Supporting All Dielectric Fiber Optic Cable 8 12 24 48 Cores Span 100m 200m
ADSS Self - Supporting All Dielectric Fiber Optic Cable 8 12 24 48 Cores Span 100m 200m
ADSS Self - Supporting All Dielectric Fiber Optic Cable 8 12 24 48 Cores Span 100m 200m
ADSS Self - Supporting All Dielectric Fiber Optic Cable 8 12 24 48 Cores Span 100m 200m
ADSS Self - Supporting All Dielectric Fiber Optic Cable 8 12 24 48 Cores Span 100m 200m
ADSS Self - Supporting All Dielectric Fiber Optic Cable 8 12 24 48 Cores Span 100m 200m
ADSS Self - Supporting All Dielectric Fiber Optic Cable 8 12 24 48 Cores Span 100m 200m
ADSS Self - Supporting All Dielectric Fiber Optic Cable 8 12 24 48 Cores Span 100m 200m
Specifications
Brand Name :
Jiqian
Model Number :
ADSS-48B1
Certification :
ISO9001 ROHS CE FCC
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union,Alipay
Supply Ability :
6000km per month
Delivery Time :
Normally 3-5 days,it depends on order quantity
Packaging Details :
Plywood drum
Number of Conductors :
≥ 10
Strength member :
FRP
Storage/operating temperature: :
-40 to +70 °C
Application :
Overhead
OEM :
Yes
Manufacturer :
Yes
Structure :
stranded loose tube
Package :
Plywood Drum
Description

Guangzhou Jiqian Fiber Optic Cable ADSS 8 12 24 48 Cores Span 100m 200m Self-Supporting All Dielectric Fiber Cable

ADSS Self - Supporting All Dielectric Fiber Optic Cable 8 12 24 48 Cores Span 100m 200m

ADSS Self - Supporting All Dielectric Fiber Optic Cable 8 12 24 48 Cores Span 100m 200m

Cable Performance

Item

Contents

 Value
6/12/24 48 72 96
Structure Type 1+6 1+6 1+8 1+12

Loose tube

 Max Fiber counts/tube 6 12 12 12
Outer diameter (mm) 1.9±0.1 2.2±0.1 2.2±0.1 2.2±0.1

Central strength member

 Material FRP
Diameter (mm) 1.4 1.6 2.0 2.2
PE layer diameter (mm) -- -- 3.5
Peripheral strength member Material FRP

Sheath

 Material HDPE
Color Black
Thickness (mm) Nominal: 1.6
Cable diameter(mm) Approx. 9.8±0.2 10.0±0.2 10.5±0.3 11.8±0.3
Cable weight(kg/km) Approx. 85 89 99 124


Fiber parameter

Parameter Specification
MFD (1310nm) 8.7~9.5 um
Cladding diameter 125±1.0um
Fiber diameter 235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error ≤ 0.6um
Coating/cladding concentricity error ≤ 12.0um
Cladding non circularity ≤ 1.0%
Cut off wavelength λcc ≤1260nm

Attenuation coefficient

1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling

Bending-loss performance of optical fiber @1310nm&1550nm

≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre

≤0.2ps/√km
Polarization mode dispersion link value ≤0.1ps/√km
Zero-dispersion wavelength 1300~1324nm
Zero-dispersion slope ≤0.092ps/nm2·km

FAQ:

1.Are you a manufacturer or trade company?

Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?

Yes, sample is available, It's free,just need to pay for the freight

3.Do you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001-2000

6.What is your delivery time?

Usually within 3-5 working days

7.What is your fiber brand?

Corning,YOFC ,Fiberhome

8.What is your payment way?

T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your requirements
