8.0mm Diameter Outdoor Fiber Optic Cable 12 Hilos Monomodo Mini ADSS Span 100m
8.0mm Diameter Outdoor Fiber Optic Cable 12 Hilos Monomodo Mini ADSS Span 100m
8.0mm Diameter Outdoor Fiber Optic Cable 12 Hilos Monomodo Mini ADSS Span 100m
8.0mm Diameter Outdoor Fiber Optic Cable 12 Hilos Monomodo Mini ADSS Span 100m
8.0mm Diameter Outdoor Fiber Optic Cable 12 Hilos Monomodo Mini ADSS Span 100m
8.0mm Diameter Outdoor Fiber Optic Cable 12 Hilos Monomodo Mini ADSS Span 100m
Specifications
Brand Name :
Jiqian
Model Number :
Mini ADSS/ASU80
Certification :
FCC/ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
98
Payment Terms :
L/C, T/T, Western Union,Alipay
Supply Ability :
4500 per month
Delivery Time :
3-5 days,it depends on order quantity
Packaging Details :
Plywood drum
Description

Fibra Optica 12 Hilos Monomodo Mini ADSS Spam 100m

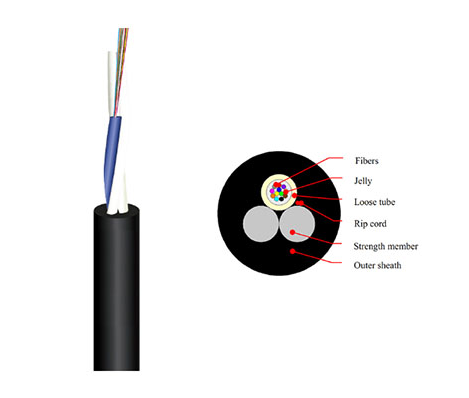

Cable Parameters:

Item Parameters
Fiber Count 12
Water blocking material Water block yarn
Span 100m
Colored coated fiber Dimension 250µm±15µm
Color Blue,Yellow,Green,Red,Violet,White ,Blown, Pink, Black, Gray, Orange, Aqua
Loose tube Diameter 2.3mm±0.1mm
Material PBT
Color blue

Filling compound in loose tube

 Gel
Strength Member FRP 2.0mm
Armoured Non-armoured

Outer sheath

Cable diameter

 Material PE
8.0mm

Fiber Optic G652D:

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error mm £12.0
Cable cut-off wavelength nm £1260
Attenuation Coefficient 1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi ≥100

8.0mm Diameter Outdoor Fiber Optic Cable 12 Hilos Monomodo Mini ADSS Span 100m

Packing&Delivery:

2km/3km/4km per wooden drum or customized

Port:Shenzhen/Guangzhou

Lead time:

Quantity(km) 100-200 >200
Est time(day) 3-5 days negotiable

8.0mm Diameter Outdoor Fiber Optic Cable 12 Hilos Monomodo Mini ADSS Span 100m

FAQ:

1.Are you a manufacturer or trade company?

Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?

Yes, sample is available, It's free,just need to pay for the freight

3.Do you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001-2000

6.What is your delivery time?

Usually within 3-5 working days

7.What is your fiber brand?

Corning,YOFC ,Fiberhome

8.What is your payment way?

T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your requirements
