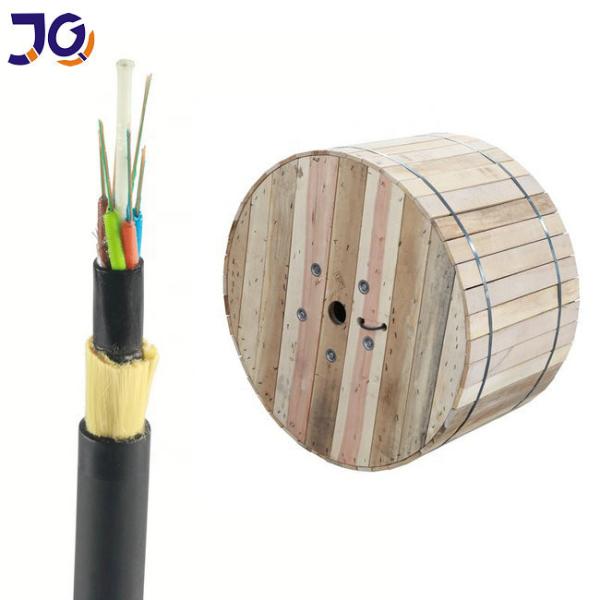

FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
Specifications
Brand Name :
JQ\OEM
Model Number :
ADSS
Certification :
CE/ISO9001
Place of Origin :
Guangdong,China
MOQ :
1kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80000 kilometers per month
Delivery Time :
2-4 days
Packaging Details :
Wooden Drum
Fiber Core :
2-144 Core
Jacket :
PE
Storage/Transport temperature range :
-50℃ to +70℃
Number of Conductors :
≥ 10
Package :
Wood Drum
MOQ :
1KM
Strength Member :
FRP
Description

Professional Factory All Dielectric Self-Supporting G652d Adss 4 Core Cable Adss Optic Fiber with High Voltag

Characteristic of Optical Cable

Cable bending radius: 10 x cable diameter (during operation)

20 x cable diameter (during installation)

Temperature range

Operating temperature range -20℃ to +60℃
Storage / Transport temperature range -50℃ to +60℃
Installation temperature range -20℃ to +60℃

Double jacket adss cable structure and parameter

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter

/pad diameter(mm)

Nominal Thickness of

Inner jacket

(mm)

 Nominal Thickness of outer jacket(mm)

Cable diameter

(mm)

Cable

Weight

(kg/km)
4 1+6 4 2.0±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
6 1+6 6 2.1±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
8 1+6 4 2.0±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
12 1+6 6 2.0±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
24 1+6 6 2.1±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
36 1+6 12 2.1±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
48 1+6 12 2.1±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
72 1+6 12 2.1±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
96 1+8 12 2.1±0.1 3.5/3.5 1.0 1.7 14.0±0.5 170

Products Description

FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting
Why Choose Us !

Packing :

Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.

Covered by plastic buffer sheet.

Sealed by strong wooden battens.

At least 1 m of inside end of cable will be reserved for testing.

Drum length

Standard drum length is 4000m±5%;

Single length not less than 90% of standard length per drum shall be permitted for quantity not exceeding 10% of the total supply;

Total quantity is at least the ordered quantity.

100% Wood Reel
100% wood reel , safe, environmentally friendly and can be recycled
Cable Rolling
Different dia of wood drum suit for different distance , from 2km to 5km
Solid Wood Package
The packaging is firm and can be applied to complex geographical environment construction
