Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable
Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable
Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable
Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable
Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable
Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable
Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable
Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable
Specifications
Brand Name :
Jiqian
Model Number :
GYTC8S
Certification :
ISO9001/CE
Place of Origin :
Guangdong, China
MOQ :
1KM
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000KM/month
Delivery Time :
3-5 days ,it depends on your order
Packaging Details :
wooden drum
Fiber Count :
2-144
Jacket Material :
PE
Jacket color :
Black
Warranty :
25 years
Fiber Type :
G652D,G652B,G657A
Application :
Underground, direct burial
Factory :
Yes
Description

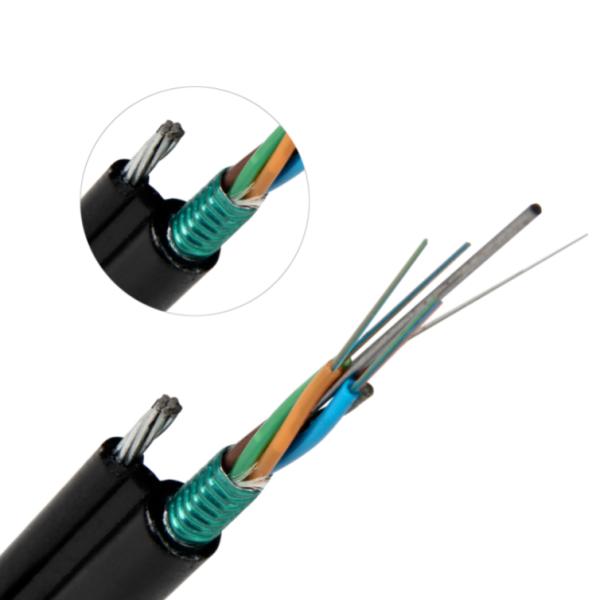

Manufacturing Outdoor Optical Fiber Figure 8 Cable 12 Cores Fiber Optic Cable Gytc8s

Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable

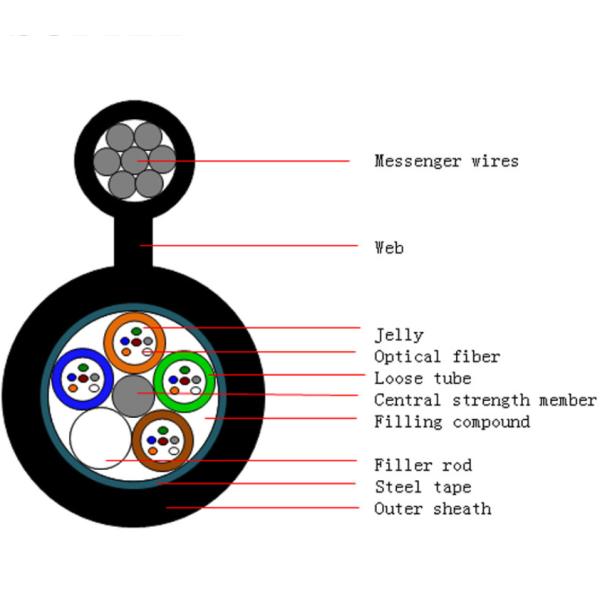

Structure :

  • Loose tube
  • Filling compound
  • Aluminum (steel) tape coated with PE jacket
  • Self-supporting by high grade zinc-galvanized stranded steel wires

Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable

Features:

  • Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission performance in varying environment.
  • Good water blocking material prevents the cable from longitudinal water penetration.
  • Aluminum (steel) tape coated with PE sheath provides excellent water blocking performance.
  • High grade zinc-galvanized stranded steel wires as self-supporting element enhance the tensile resistance.


Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable

Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable

There are twelve fiber color code.They are A grade fiber.

Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable

Dimensional Characteristics

Designation
Max. number
Steel wire/ stand
Stranded
Nominal cable
Nominal cable
Of fibers per tube
Diameter (mm)
units
diameter (mm)
weight (kg/km)
GYTC8S 2-36
6
2.3
6
11.6X25.5
270
GYTC8S
38-72
12
2.3
6
13.2X28.5
310
GYTC8S
74-96
12
2.3
8
14.9X33.0
390
GYTC8S
98-120
12
2.3
10
16.8X33.0
390
GYTC8S
122-144
12
2.3
12
18.8X35.0
440

Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.

Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351

FQA

Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.


Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.


Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.


Q5. Can you supply customized products and logo?
Yes. We supply OEM service.


Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
