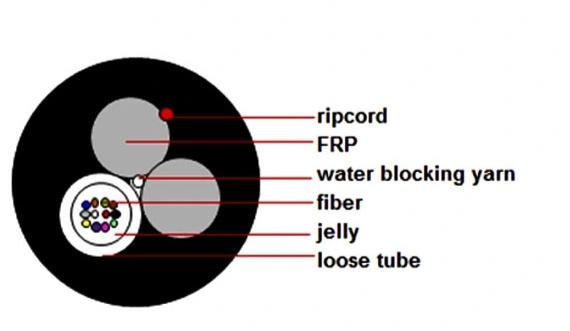

Mini ADSS ASU Cable , Aerial Self Supporting Fiber Optic Cable
Mini ADSS ASU Cable , Aerial Self Supporting Fiber Optic Cable
Mini ADSS ASU Cable , Aerial Self Supporting Fiber Optic Cable
Mini ADSS ASU Cable , Aerial Self Supporting Fiber Optic Cable
Mini ADSS ASU Cable , Aerial Self Supporting Fiber Optic Cable
Mini ADSS ASU Cable , Aerial Self Supporting Fiber Optic Cable
Specifications
Brand Name :
Jiqian
Model Number :
Mini ADSS
Certification :
FCC/ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
118
Payment Terms :
L/C, T/T, Western Union,Alipay
Supply Ability :
4500 per month
Delivery Time :
3-5 days,it depends on order quantity
Packaging Details :
Plywood drum
Description

Jiqian China Manufacturer ASU80 Cable Mini ADSS Outdoor Aerial Self-Supporting Fiber Optic Cable 2-24 Core Fiber Cable​

Specification:

Category
Description
Specifications
G.652D
Optical Specifications
Attenuation
@1310nm
≤0.36dB/km
@1550nm
≤0.22dB/km
Attenuation discontinuity
≤0.05 dB
Attenuation vs. Wavelength
@1285~1330nm
≤0.05 dB/km
@1525~1575nm
≤0.05 dB/km
Zero Dispersion Wavelength
1300~1324nm
Zero Dispersion Slope
Max. 0.092 ps/(nm.km)
Dispersion
@1310nm
≤3.5 ps/nm.km
@1550nm
≤18 ps/nm.km
Cable Cutoff Wavelength(λcc)
≤1260nm
PMD
≤0.20ps/km 1/2
Effective Group Index of
Refraction
@1310nm
1.4675
@1550nm
1.4681
Geometric Specifications
Mode Field Diameter
@1310nm
9.2±0.4μm
@1550nm
10.4±0.8μm
Mode field concentricity error at 1310 nm
Not exceed 0.5μm
Cladding Diameter
125±1μm
Cladding Non-Circularity
≤1%
Coating Diameter
245 +/- 7μm
Coating/Cladding Concentricity Error
≤8μm
Core/Cladding Concentricity Error
≤0.8μm
Mechanical
Specifications
Proof Test level
≥1.0%
Fiber Curl Radius
≥4.0m
Peak Coating Strip Force
1.3~8.9N

Mini ADSS ASU Cable , Aerial Self Supporting Fiber Optic Cable

Packing&Delivery

2km/3km/4km one roll or customized

Port:Shenzhen/Guangzhou

Lead time

Quantity(km) 100-200 >200
Est time(day) 3-5 days negotiable

Mini ADSS ASU Cable , Aerial Self Supporting Fiber Optic Cable

FAQ:

1.Are you a manufacturer or trade company?

Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?

Yes, sample is available, It's free,just need to pay for the freight

3.Do you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001-2000

6.What is your delivery time?

Usually within 3-5 working days

7.What is your fiber brand?

Corning,YOFC ,Fiberhome

8.What is your payment way?

T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your requirements
