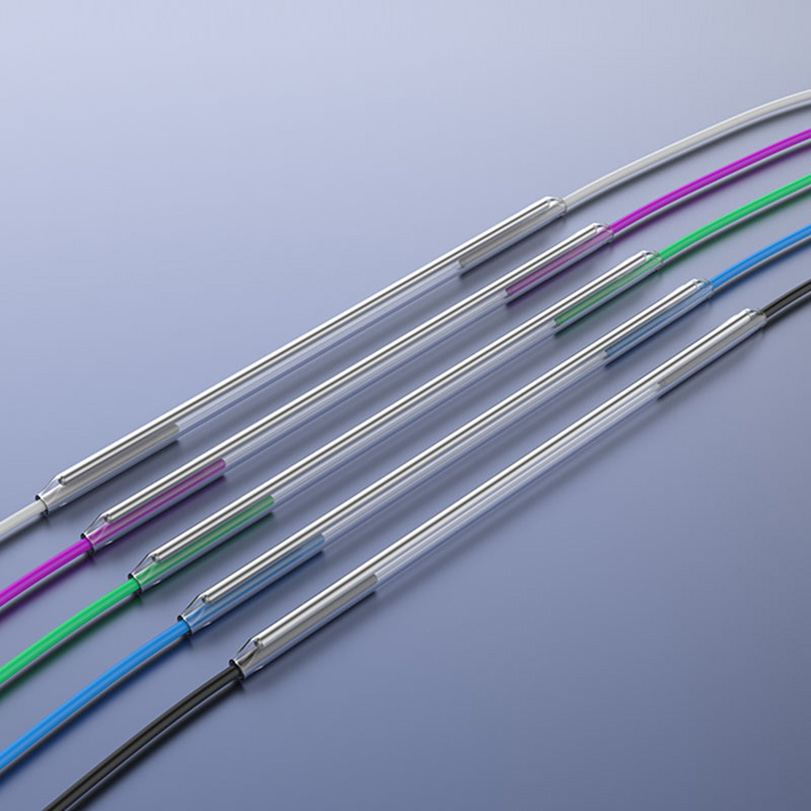

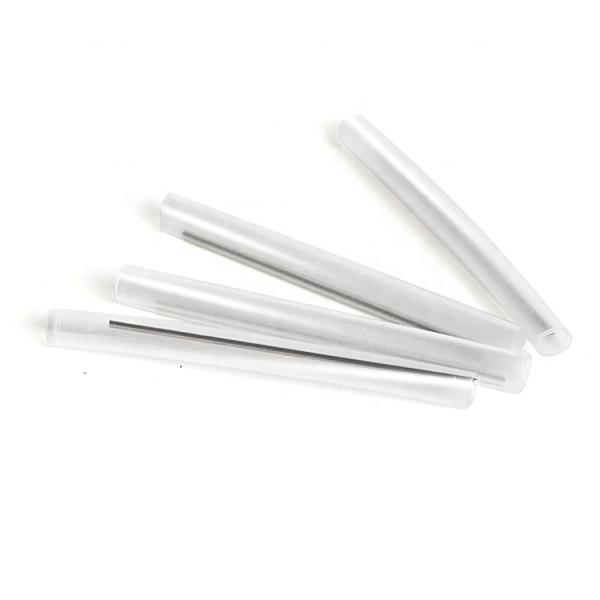

60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve
60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve
60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve
60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve
Specifications
Brand Name :
JQ/OEM/haiso
Model Number :
Fiber Heat Shrink tube
Certification :
ISO 9001
Place of Origin :
Guangzhou,China
MOQ :
10000PSC
Payment Terms :
L/C, T/T, Western Union,Alipay
Supply Ability :
999999pcs per day
Delivery Time :
3-5 days,it depends on order quantity
Packaging Details :
cartoon box
Manufactuer :
Yes
Jacket :
PE PVC
Length :
45 55 60m
Oem :
Available color
Tensile strength :
18 Mpa min
Color :
red /white
Description
Product Name
Fiber Optic Splice tube 45mm/60mm protection sleeve

60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve

The application of optical fiber fusion tube in optical fiber fusion protection

Features:

1.Protection Sleeves Lenght:35mm; 40mm, 45mm , 50mm , 55mm , 60mm,
2.Steel needle Diameter: 1.0mm,1.2mm,1.5mm (Standard Single Fiber)3.Custom lengths available
3. Color-coded outer tubes available
4. No influence on the fiber's transmission
5.Splice point protection and intensity improvement
6. Easy operation and reduction of the risk of manging fiber
7. External tube clearly showing the status of connection
8. Airproof configuration keeping the splice point's good resistance of humidity and temperature
9. Operating terperature ranging from -45℃ to 100℃

10.Outer Tubing 2 – Strength Member 3 – Inner Tubing

*Single holed(preshrunk)ends eliminates improper fiber threading
*Smooth,deburred stainless steel reinforcing member ends decrease the riskof fiber damage during installation
*Extended liner length prevents contact between the fiber and ther backbone
*Clear sleeve design persign permits easy centering of splice before heating
*Sealing structure makes the splice free from effect of temperature and humidity from environment
Performance Index:
60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve

60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve

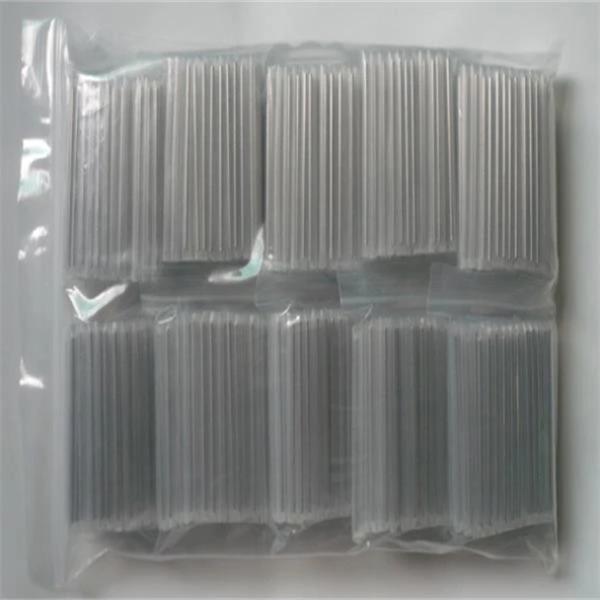

Package:

100pcs in one bag,10000pcs in one cartoon or according customer's requirments.

60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve

60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 10000pcs

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
