Specifications
Brand Name :
Jiqian
Model Number :
GYFTY53
Certification :
ISO9001/CE
Place of Origin :
Guangdong, China
MOQ :
1KM
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000KM/month
Delivery Time :
3-5 working days ,it depends on your order
Packaging Details :
wooden drum
Fiber Count :
2-144
Jacket Material :
PE
Jacket color :
Black
Lift Time :
More than 25years
Fiber Type :
G652D,G652B,G657A
Application :
Underground
Factory :
Yes
Fiber Brand :
YOFC
OEM :
Yes
Description

12 24 48 Core Double Sheath Underground Direct Burial Fiber Optic Cable Gyfty53

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

The Underground Direct Buried Fiber Optic Cable GYFTY53

are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried.

With fiber counts up to 288 and S-Z strand designs.

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

Product Application

With excellent mechanical and temperature resistant performance,

all-dielectric cables are designed for outdoor communications ,

adopted to outdoor distribution and suitable for direct burial laying method.

Long distance and local area network communication.

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

Main Features

1.Good mechanical and temperature performance ·

2.High strength loose tube that is hydrolysis resistant ·

3.Special tube filling compound ensure a critical protection of fiber ·

4Loose tube gel-filled construction for superior fiber protection.

5.Steel tape armor to protect cable from mechanical damage.
6.UV and waterproof design.


Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

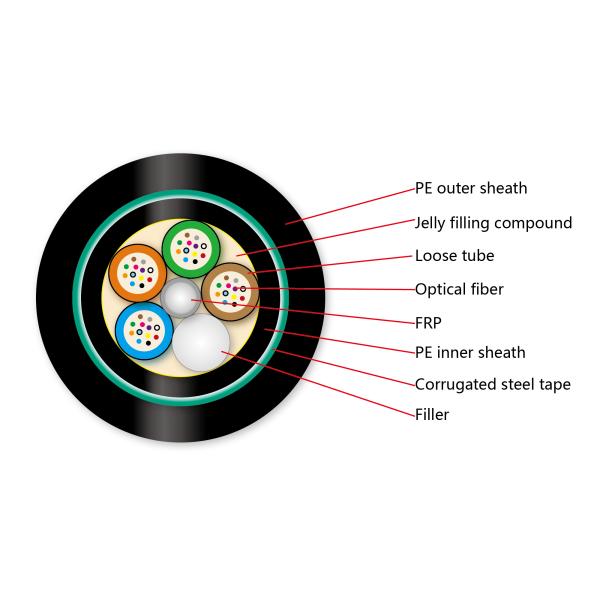

Cable performance:

Item Parameters

Loose tube

 Material PBT
Color All colors display
Filler Material PE
Color Black
CSM Material FRP
Inner jacket Material MDPE
Color Black
Outer armoured Material Plastic coated steel strip
Outer jacket Material MDPE
Color Black
Min. bending radius Static 12.5 times cable diameter
Dynamic 25 times cable diameter

Repeating bending

Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Tensile performance Short term 1500N
Crush Short term 3000N/100mm
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

Optical Parameters:

50/125µm 62.5/125µm G.652 G.655
Attenuation(+20°C) @850nm ≤3.0dB/km ≤3.3dB/km
@1300nm ≤1.0dB/km ≤ 1.0dB/km
@1310nm ≤0.36dB/km ≤0.4dB/km
@1550nm ≤0.22dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥ 500MHz.km ≥ 200MHz.km
@1300nm ≥ 1000MHz.km ≥ 600MHz.km
Numerical Aperture 0.200 ±0.015NA 0.275 ±0.015NA
Cable Cut-off Wavelength λcc ≤ 1260nm ≤ 1450nm

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

There are twelve fiber color code.They are A grade fiber.

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

More Products

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

Direct Buried 24 Core Steel Wire Underground Fiber Optic Cable Double Armoured Gyfty53

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351

FQA

Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.


Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.


Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.


Q5. Can you supply customized products and logo?
Yes. We supply OEM service.


Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
