Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead
Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead
Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead
Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead
Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead
Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead
Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead
Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead
Specifications
Brand Name :
Jiqian
Model Number :
GYTS
Certification :
ISO9001/CE
Place of Origin :
Guangdong, China
MOQ :
1KM
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000KM/month
Delivery Time :
3-5 working days ,it depends on your order
Packaging Details :
wooden drum
Fiber Count :
2-144
Life Time :
25years
Fiber Type :
G652D
Application :
Overhead
Wave Length :
1310nm/1550nm
Packaging :
Wooden Durm
Color :
Black
Description

Outdoor Gyta Duct Layer Stranded Type Armored 12 24 48 Core Optical Fiber Cable

Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead

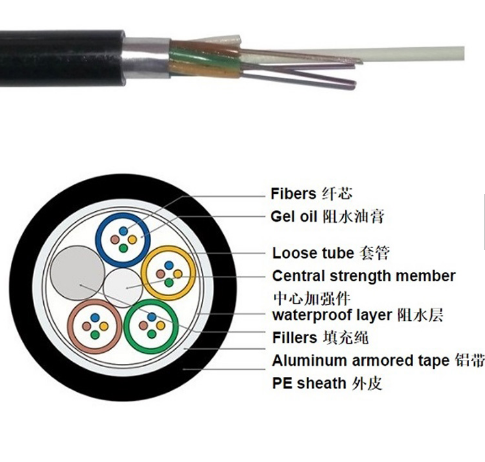

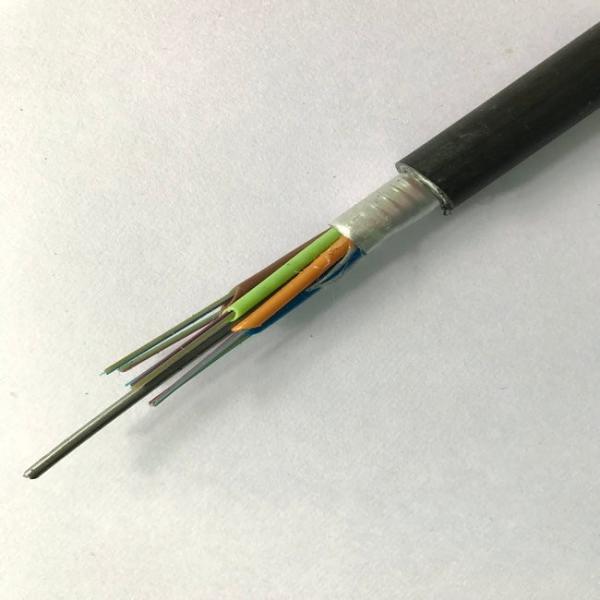

In the GYTA cable, single mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. Aluminium tape is applier around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead

Fiber parameter

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error mm £12.0
Cable cut-off wavelength nm £1260
Attenuation Coefficient 1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi ≥100
Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead
Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead

Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead

There are twelve fiber color code.They are A grade fiber.

Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead

All products will have been strictly quality checked in house before packing.

Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead

All products will be well packed before shipment.

Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead

We are fiber cable manufacturer. We have a factory.

Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead

Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead

We have rich experience in foreign trade.

Give us a chance to server you, saving your time and money.

Contact me!!! Whatsapp & Wechat: +8618122383351

Outdoor Gyta Duct Layer Stranded Optical Fiber Cable Overhead

FQA

1,Q:Are you a factory or trade company?

A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?

A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?

A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
