24 Core GYFTY Non Metallic Armored Fiber Cable FRP Strength
24 Core GYFTY Non Metallic Armored Fiber Cable FRP Strength
24 Core GYFTY Non Metallic Armored Fiber Cable FRP Strength
24 Core GYFTY Non Metallic Armored Fiber Cable FRP Strength
24 Core GYFTY Non Metallic Armored Fiber Cable FRP Strength
24 Core GYFTY Non Metallic Armored Fiber Cable FRP Strength
Specifications
Brand Name :
Jiqian
Model Number :
GYFTY
Certification :
ISO9001 ROHS CE FCC
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union,Alipay
Supply Ability :
4500km per month
Delivery Time :
Normally 3-5 days,it depends on order quantity
Packaging Details :
Wooden drum
Number of Conductors :
≥ 10
Strength member :
FRP
Laying mode :
Duct/Aerial
Storage/operating temperature: :
-40 to +70 °C
Application :
Networking
OEM :
Yes
Manufacturer :
Yes
Structure :
stranded loose tube
Package :
Wooden Drum
Description

24 core single mode fiber optic cable,Non-metallic Strength Member Non-armored Cable GYFTY

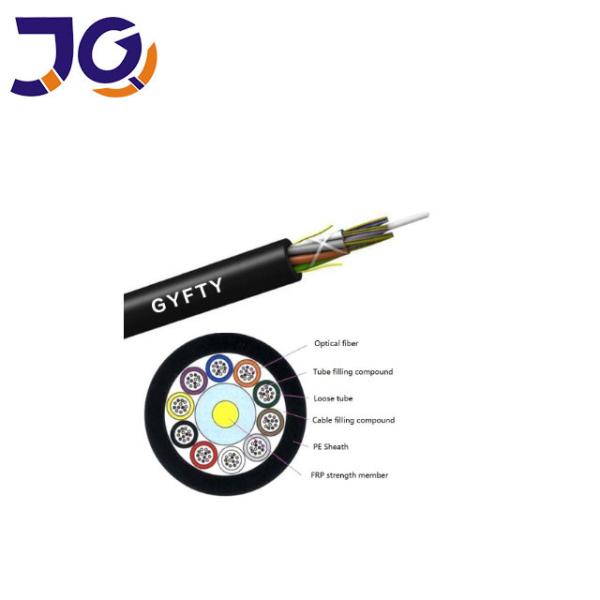

The fibers, 250μm, are positioned in a loose tube which is made of a high modulus plastic. All the tubes are filled with a water- resistent filling compound. We use the FRP(fiber reinforced plastic) as the strength member. The optical cable have a very good mechanical and temperature performance. You don't need to worry about the crush resistance and flexibility during the storage and operating.

24 Core GYFTY Non Metallic Armored Fiber Cable FRP Strength

24 Core GYFTY Non Metallic Armored Fiber Cable FRP Strength

Cable Performance

Item

Contents

 Value
6/12/24 48 72 96
Structure Type 1+6 1+6 1+8 1+12

Loose tube

 Max Fiber counts/tube 6 12 12 12
Outer diameter (mm) 1.9±0.1 2.2±0.1 2.2±0.1 2.2±0.1

Central strength member

 Material FRP
Diameter (mm) 1.4 1.6 2.0 2.2
PE layer diameter (mm) -- -- 3.5
Peripheral strength member Material FRP

Sheath

 Material HDPE
Color Black
Thickness (mm) Nominal: 1.6
Cable diameter(mm) Approx. 9.8±0.2 10.0±0.2 10.5±0.3 11.8±0.3
Cable weight(kg/km) Approx. 85 89 99 124


Fiber parameter

Parameter Specification
MFD (1310nm) 8.7~9.5 um
Cladding diameter 125±1.0um
Fiber diameter 235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error ≤ 0.6um
Coating/cladding concentricity error ≤ 12.0um
Cladding non circularity ≤ 1.0%
Cut off wavelength λcc ≤1260nm

Attenuation coefficient

1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling

Bending-loss performance of optical fiber @1310nm&1550nm

≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre

≤0.2ps/√km
Polarization mode dispersion link value ≤0.1ps/√km
Zero-dispersion wavelength 1300~1324nm
Zero-dispersion slope ≤0.092ps/nm2·km

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
