G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
Specifications
Brand Name :
Jiqian
Model Number :
GYXTW53
Certification :
CE/ISO9001
Place of Origin :
Guangdong,China
MOQ :
1KM
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000KM/month
Delivery Time :
3-5 days, it depends on your quantity
Packaging Details :
wooden drum
Fiber count :
2-288 Cores
Jacket Material :
PE
Jacket color :
Black
Warranty :
25 years
Factory :
Yes
OEM :
Yes
Fiber Brand :
YOFC
Fiber Type :
G652D
Description

Outdoor Central Loose Tube G652d Monomodo Fibra Optica 8 12 24 Core Communication Fiber Optic Cable GYXTW53

G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores

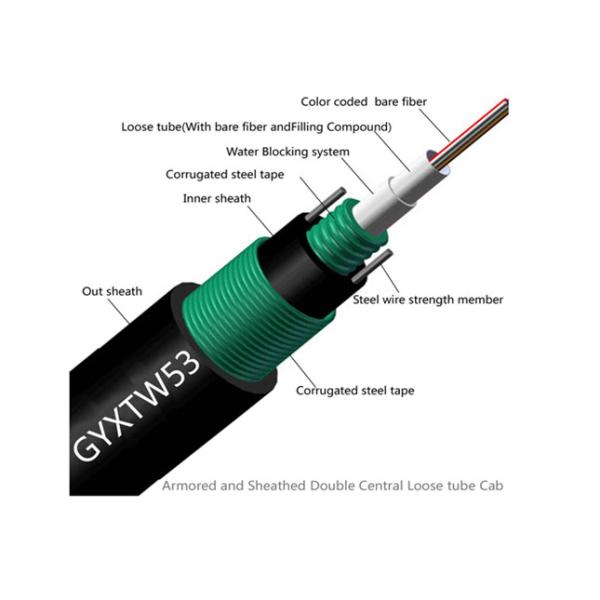

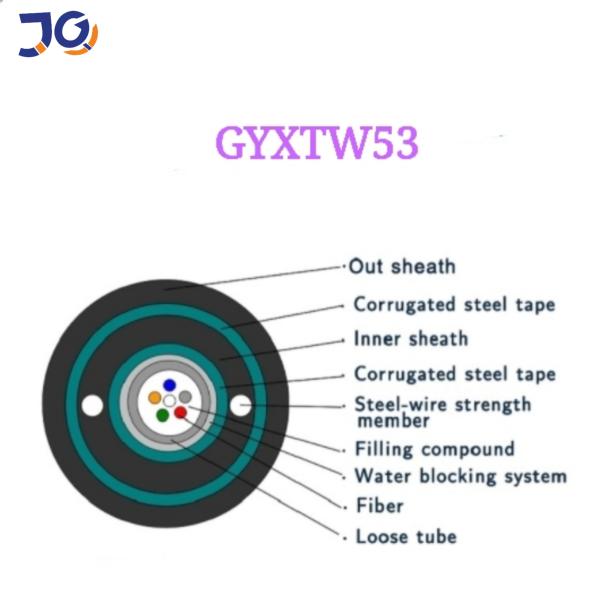

Product Structure

250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material, it also has two steel wires in two sides to enhance the crush resistance and flexibility. At last, the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores

Feature:
1. Good mechanical and temperature performance

2.Metallic armor to protect cable from rodent attack and mechanical damage.

3.Embedded steel wire provide desirable tensile strength and crush resistance.

4.Compact, easy to install.

5.UV and waterproof design.
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
Application
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores

Ordering Information

Fiber Count Outer Diameter (mm) Loose Tube Diameter (mm) Cable Weight (kg/km) Bend Radius
Short (mm) Long (mm)
2 12.0 2.8 165.0 20D 10D
4 12.0 2.8 165.0 20D 10D
6 12.0 2.8 165.0 20D 10D
8 12.0 2.8 165.0 20D 10D
12 12.0 2.8 165.0 20D

10D

G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores

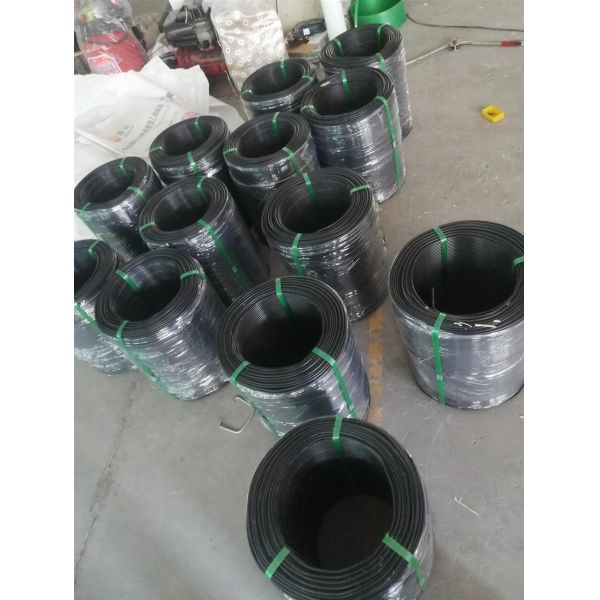

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores

Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
Factory Show
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
We still have more. Please feel free to contact me. Whatsapp: +86 18122383351
