Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable
Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable
Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable
Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable
Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable
Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable
Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable
Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable
Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable
Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable
Specifications
Brand Name :
JQ
Model Number :
ADSS-4/8/12F
Certification :
ISO9001 CE ROHS FCC
Place of Origin :
China guangdong
MOQ :
5 km
Price :
base on fiber specifications
Payment Terms :
T/T, Western Union,Alipay
Supply Ability :
1000KM per day
Delivery Time :
about 11 working days
Packaging Details :
Wooden reel
Application :
overhead/aerail network
fiber counts :
2~24F
span :
80/100/120M
OEM :
avalible
strength number :
FRP
structure :
unit Loose Tube
jacket color :
black
Operating temperature :
-40℃ to +60℃
sample :
avaliable
fiber type :
singlemode G652D G657a
drum length :
5km/drum
Description

ASU mini -ADSS fiber optic cable

destricption

ASU fiber optic cable, also known as mini ADSS fiber optic cable, it is a very popular dielectric self-supporting fiber optic cable used in America countires , it is light in weight and good in bending perfermance .

two FRP provides strong tension and all the cable to have a large span up to 120 meters . The fibers laid in a loose tube and the fibers count can up to 24 cores. When the fiber count is 24 coores in a loose tube,

12 cores will be coating in nomal color, and the other 12 cores will be marked with rings .

The advantages of ASU ( mini-adss) fibre cable

  • 1. the cable is light in weight and easy for installation.

  • 2. the cable span can be large to 120 meters .

  • 3. it is cheaper than ADSS, but have a good cable perfermance as ADSS cable

  • 4. Have a very good perfermance in bending, it is suitable for laying outdoor and FTTH network singnal transfer.

  • 5. Service life is expected over 25 years

Details picture shows

Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable

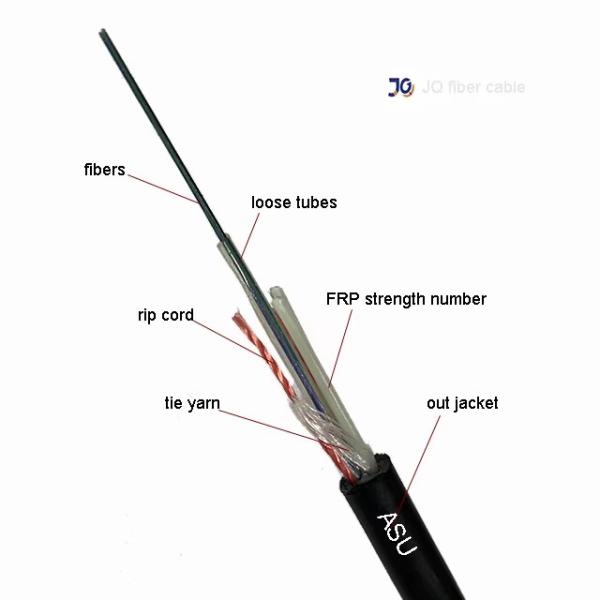

mini adss ASU fiber cable

Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable

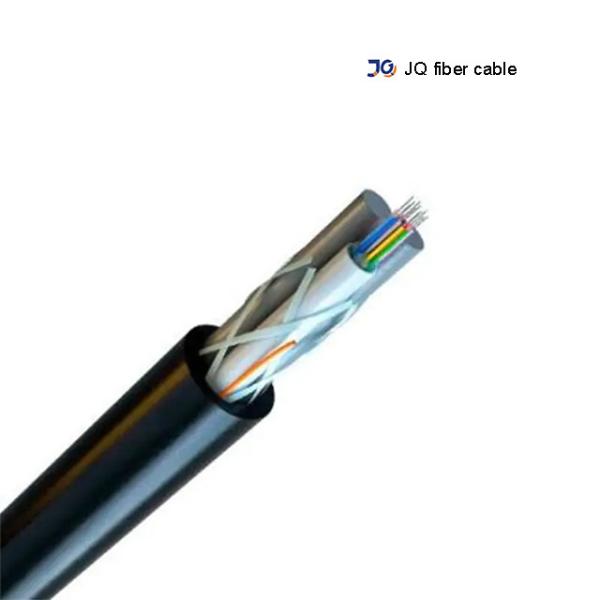

ASU-mini ADSS fiber optic cable

Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable

Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable

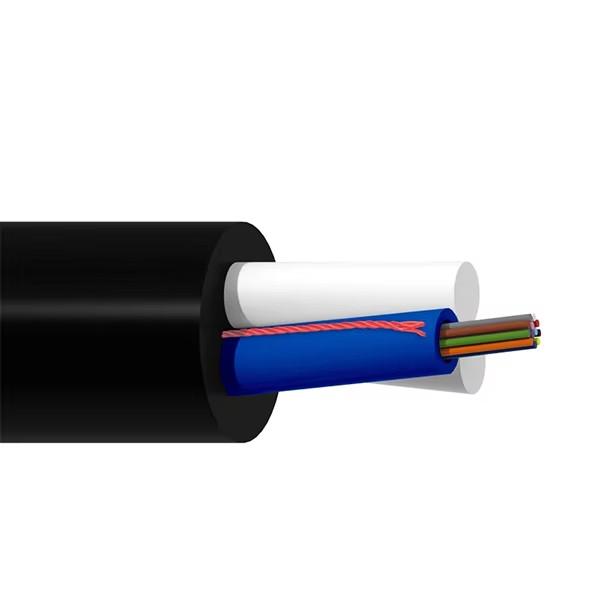

Structure and Technical Specifications

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket
4 1+2 4 1.9 2.0/2.0 1.7±0.1 7.0±0.2 55
6 1+2 6 1.9 2.0/2.0 1.7±0.1 7.0±0.2 55
8 1+2 4 1.9 2.0/2.0 1.7±0.1 7.0±0.2 55
12 1+2 12 1.9 2.0/2.0 1.7±0.1 7.0±0.2 55
24 1+2 24 2.5 2.0/2.0 1.7±0.1 8.0±0.2 70

Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.

Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---

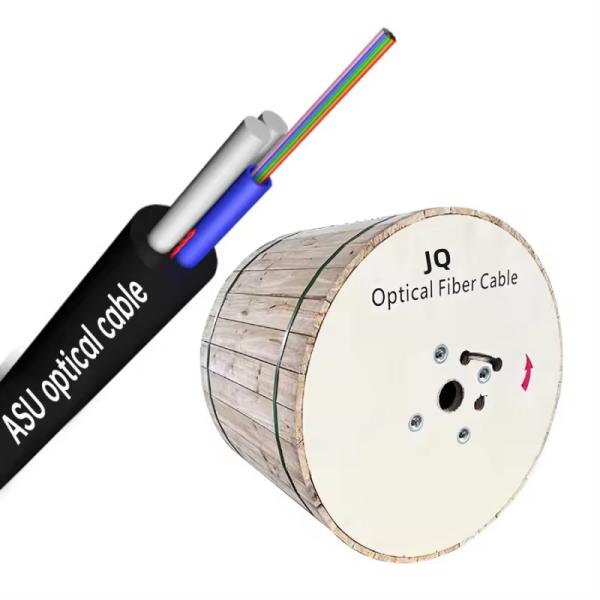

Packing:

Span 100M 120M 4 Cores 8 Cores 12 Cores 24 Cores ASU Mini ADSS Fibre Optics Cable

FAQ

1. Q:Are you a factory or trade company?
A: We are a factory


2. Q:What is the MOQ?

A: The MOQ of Fiber Optic cable is 15km.

3. Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,CORNING ,etc

4. Q:Can you accept small order?
A: Yes, small order is available .We support new project of our customers as we know business is always from small order.


5. Q:What’s delivery time?
A: The general delivery time is 10 days after order confirmed. It depends on the order quantity.

6. Can you supply customized products and logo?

A:Yes. We supply OEM service.

7. what is your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
