Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Specifications
Brand Name :
jiqian
Model Number :
GYTC8S/GYTC8Y/GYTC8A
Certification :
ISO/CE/ROHS
Place of Origin :
CHINA
MOQ :
1000m
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100km per 2 day
Delivery Time :
2-4day

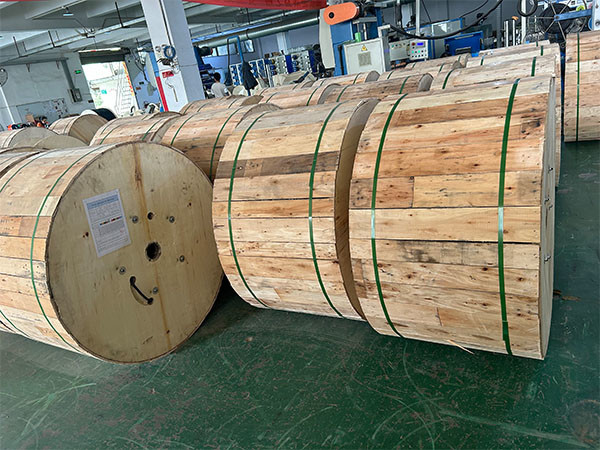

Packaging Details :
wooden drum
Fiber type :
single mode & multi mode
Oem :
Available
Application :
Aerial
Number of conductors :
12 24 48 96
Structure :
Stranded Loose tube
Operating temperature :
-40 ~ +60 C
Length :
1KM OR 2KM OR 500M
Description

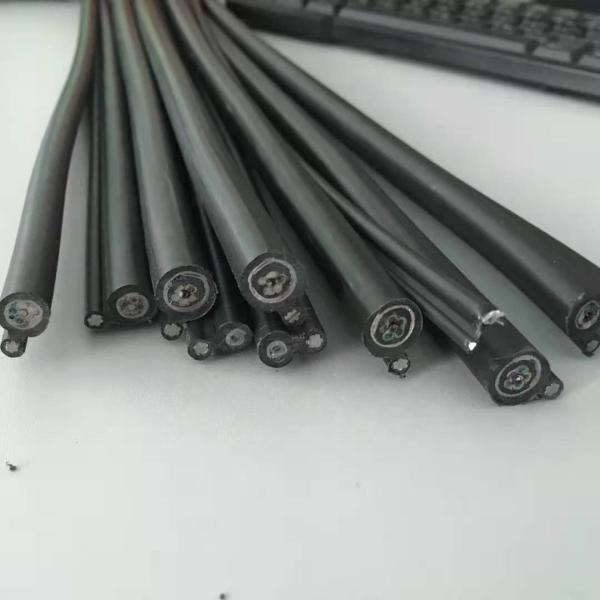

GYTC8S Figure 12 24 Stranded Loose Tube Messenger Wire Aerial outdoor Fiber Optic cable

Self-Supporting Aerial 48 Core GYTC8S Outdoor Fiber Optical Communication Cable

figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-topremises.Tubes contain optical single-mode or multimode fibers color coded as per the color coding scheme.
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Introduce some detail to you :
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger

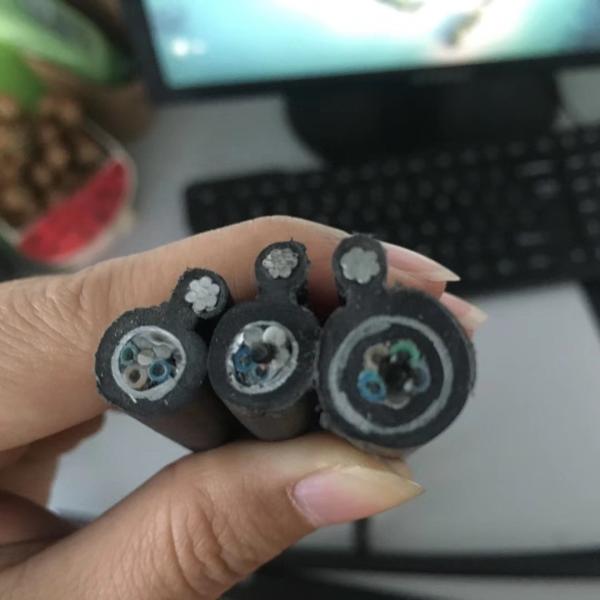

Structure:

Figure 8 non armoured fiber cable consists of :

1.Stranded loose tube

2.Steel wire strength member

3.Core filler compound

4.Fillers

5.Phosphating or Galvanized steel wire

6.PE sheath

Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate: ISO9001

Characteristics
1 Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber

Optical Characteristics:

G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm

Printing :

1: we support OEM

2: And print your company name on drum or jacket

3: Customize Jacket Color .

Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger

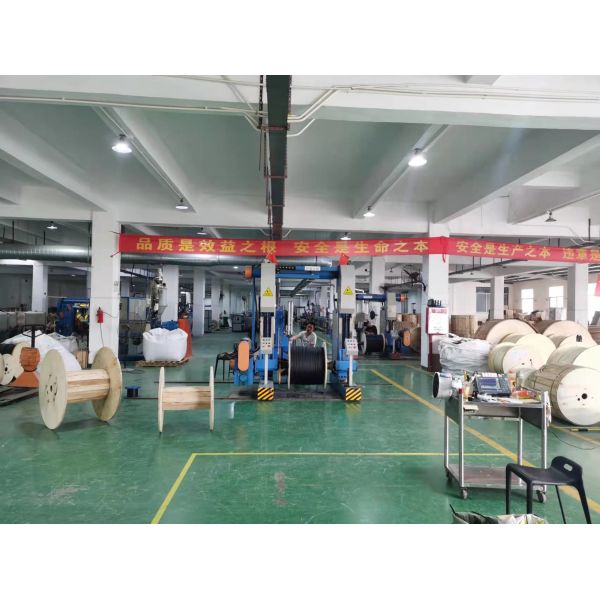

Our factory :

Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger

Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.Aerial Figure 8 Self-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
