Specifications
Brand Name :
JQ/OEM
Model Number :
LC/FC/SC/ST
Certification :
CE/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 Kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8000 kilometers per month
Delivery Time :
2-5days
Packaging Details :
Wooden Drum
Type :
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Fiber type :
Single mode/Multi mode
Number of Conductors :
2
Length :
1m,3m,5m,10m,15m,20m,30m,50m
Color :
Customized
Outer Sheath :
PE or as your request
Package :
Wooden Drum/Customized
Application :
Telecommunications
Oem :
Available
Ferrule end -face :
PC, UPC, APC
Insertion Loss :
≤0.25 dB
Description

Product Description:

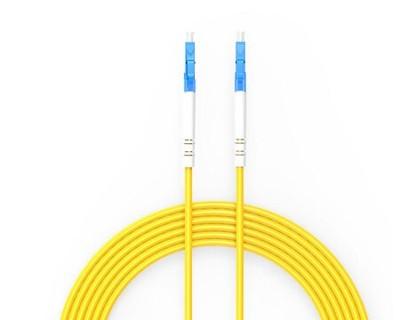

High Quality Customized Jumper SM MM Simplex Duplex 2.0mm 3.0mm FC/SC/LC/APC/UPC Fiber Optic Patch Cord

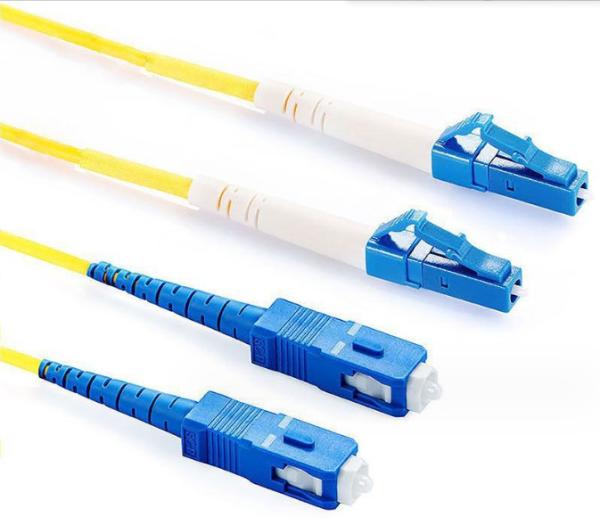

High Quality Customized Jumper SM MM Simplex Duplex 2.0mm 3.0mm FC/SC/LC/APC/UPC Fiber Optic Patch Cord

Optical fiber jumper

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center.

Characteristics:

1, Low insertion loss; 2, Good repeatability;
3,Large return loss; 4, Good interplug-in performance;
5, Good temperature stability; 6, Strong tensile performance.

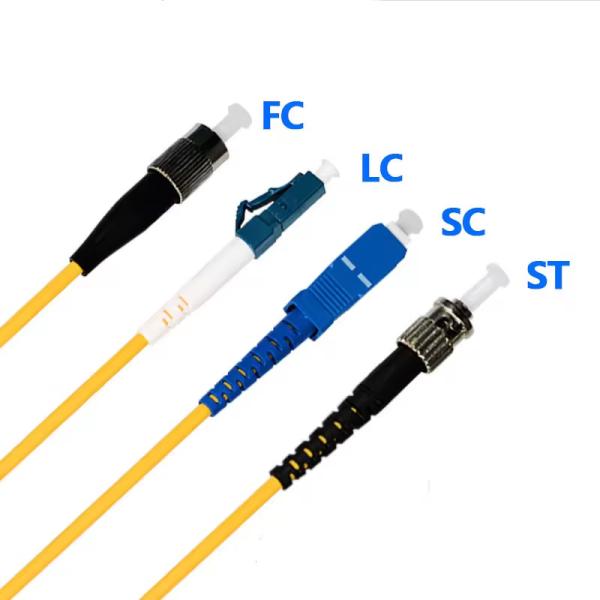

High Quality Customized Jumper SM MM Simplex Duplex 2.0mm 3.0mm FC/SC/LC/APC/UPC Fiber Optic Patch Cord

Main technical parameters:
* Insertion loss: ≤0.2dB
* Echo Loss: PC≥40dB,UPC≥50dB,APC≥60dB
* Exchangeability test: ≤0.2dB
* Vibration test: ≤0.1dB (10-60Hz, 1.5mm amplitude)
* Tensile strength test: ≤0.1dB (0-15Hg tension, excluding 0.9mm optical fiber)
* High temperature test: ≤0.2dB (+85 C, lasting 100 hours)
* Low temperature test: ≤0.2dB (-40 C, lasting 100 hours)
* Temperature cycling test:≤0.2dB (-40 ~85 C, after 5 cycles)
* Humidity test: ≤0.2dB (+25℃~+65℃, relative humidity 93%, 100 hours later)

Specification:

Parameter LC,SC,ST,FC
SM MM
UPC APC UPC
Operating Wavelength(nm) 1310/1550 850/1300
Insertion Loss(dB) ≤0.20 ≤0.20 ≤0.20
Return Loss(dB) ≥55 ≥65 ≥35
Repeatability Loss(dB) ≤0.1
Interchangeability Loss(dB) ≤0.20
Repeat Piug-pull Times ≥1000
Tensil Strength(N) ≥100
Durability Loss(dB) ≤0.20
Operating Temperature() -40~ +75
Storage Temperature() -40~85

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

High Quality Customized Jumper SM MM Simplex Duplex 2.0mm 3.0mm FC/SC/LC/APC/UPC Fiber Optic Patch CordHigh Quality Customized Jumper SM MM Simplex Duplex 2.0mm 3.0mm FC/SC/LC/APC/UPC Fiber Optic Patch Cord

WHY CHOOSE US:

High Quality Customized Jumper SM MM Simplex Duplex 2.0mm 3.0mm FC/SC/LC/APC/UPC Fiber Optic Patch Cord

Certification:

High Quality Customized Jumper SM MM Simplex Duplex 2.0mm 3.0mm FC/SC/LC/APC/UPC Fiber Optic Patch Cord

FAQ:

Q1: Are you a factory or trading company?
A1: We are a manufacturer. All procedures of the cable assembly are finished in our factory.

Q2: How can i get samples from you?
A2: We can provide a few pcs free sample for your test. You can contact our sales and confirm which color you prefer.

Q3: What is your Warranty?
A3: All the products will have 12 months Warranty.

Q4: Can you put my brand name (logo) on these products?
A4: Yes! The professional OEM services is welcome. Our factory accepts to make the logo free for bulk orders.

Q5: How about the package?
A5: The package for patch cords depends on your requst. It can be both indivisually packed and bunlded packing.

Q6: What's delivery time?
A6: Lead time depends on the quantities of the mass order. If you need the products in hurry, contact our sales and they will give solution accordingly.
