12 24 48 Core GYFTY Non-armored Duct Fiber Optic Cable
12 24 48 Core GYFTY Non-armored Duct Fiber Optic Cable
12 24 48 Core GYFTY Non-armored Duct Fiber Optic Cable
12 24 48 Core GYFTY Non-armored Duct Fiber Optic Cable
Specifications
Brand Name :
JQ/OEM
Model Number :
GYFTY-48B1.3
Certification :
ISO9001
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30km per day
Delivery Time :
5-8 work days

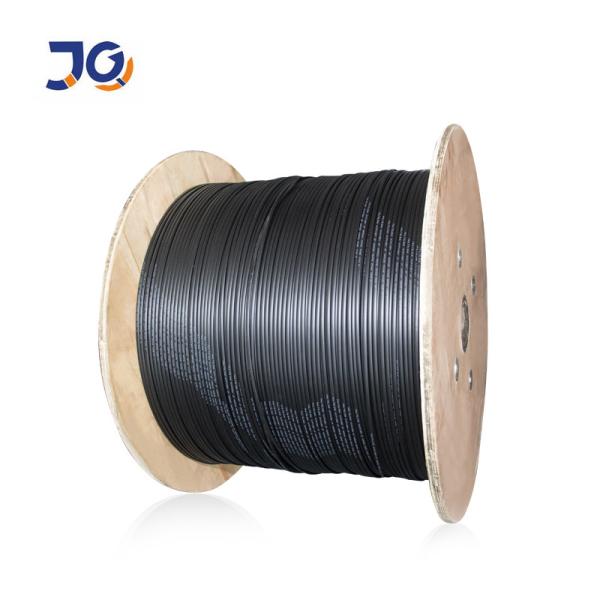

Packaging Details :
wooden drum
Fiber count :
4-144 Cores
Fiber type :
single mode G652D
Jacket :
PE
Color :
Black
Product name :
Non-armored Duct Fiber Optic Cable
Length :
4km or customized length
Structure :
Stranding Loose tube SZ
Installation :
Aerial & Duct
Strenght member :
FRP
Description

2-144 Cores GYFTY Non-armored Duct Fiber Optic Cable With Factory Price, Support OEM.

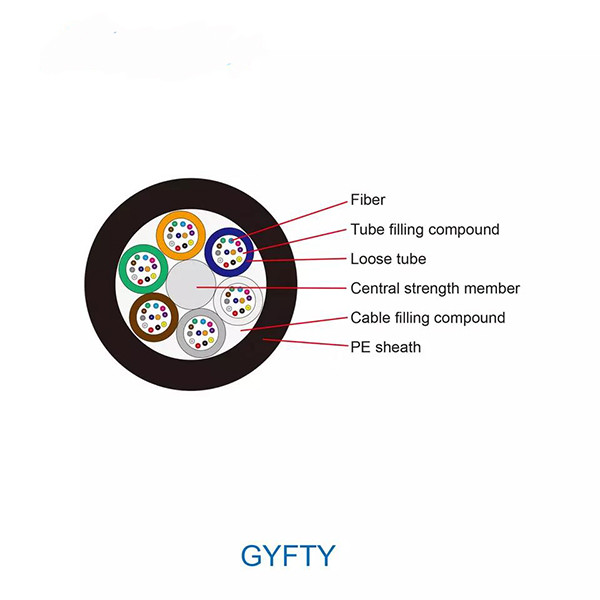

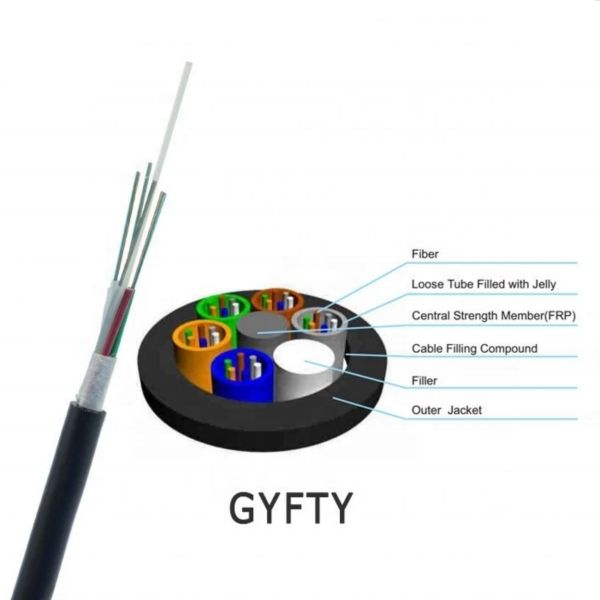

1. small diameter, lighter and softness;
2. reasoning designation,excellent water-blocking performance;
3. FRP as non-metallic central strength member;
4. good electromagnetism resistance ability.
5. jelly-filled, fiber contained loose tube and PP filler
6. water blocking tape, PE outer sheath
12 24 48 Core GYFTY Non-armored Duct Fiber Optic Cable12 24 48 Core GYFTY Non-armored Duct Fiber Optic Cable

Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%

Cable Parameters

Items Specifications
Fiber Count 48fibers
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 2.0mm±0.2mm
Material FRP or steel wire
Outer Jacket Dimension 12.0mm±0.2mm
Material PE
Color Black

Application

Aerial/Duct

Characteristic

1. Excellent mechanical and temperature Performance. Critical protection to fibers
2. Excellent ultraviolet prevention with PE sheath, excellent crush resistance and flexibility

12 24 48 Core GYFTY Non-armored Duct Fiber Optic Cable

12 24 48 Core GYFTY Non-armored Duct Fiber Optic Cable

Cable Mark: Company logo GYFTY-48B1.3 2024 0000M

12 24 48 Core GYFTY Non-armored Duct Fiber Optic Cable

12 24 48 Core GYFTY Non-armored Duct Fiber Optic Cable

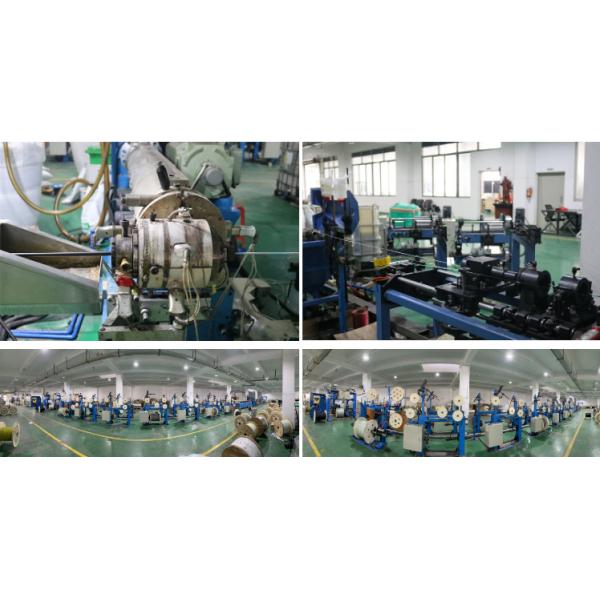

Welcome to your Inquiry Welcome to visit our factory! whatsapp +8618122384553
