Specifications
Brand Name :
JQ
Model Number :
GYTC8Y/GYTC8A
Certification :
ISO9001
Place of Origin :
Guangzhou China
MOQ :
1km
Fiber Diameter :
9/125μm
Bending Radius :
20D
Jacket :
UV PE
Cladding Diameter :
125.0±0.1
Water Blocking System :
Filling Compound
Cable Use :
Outdoor
Outer Diameter :
7.0mm-9.0mm
Self Suporting :
Stranded Steel Wire/Steel wire
strength member :
aramid yarn
Description

4core 6core 12core Figure 8 Fiber Optical Cable With Steel Wire Mini Figure 8 Cable Gyxtc8y Gyxtc8a

Product Description

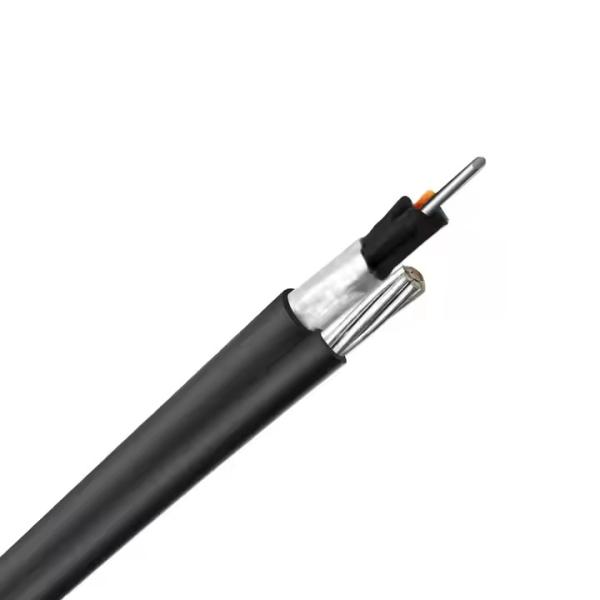

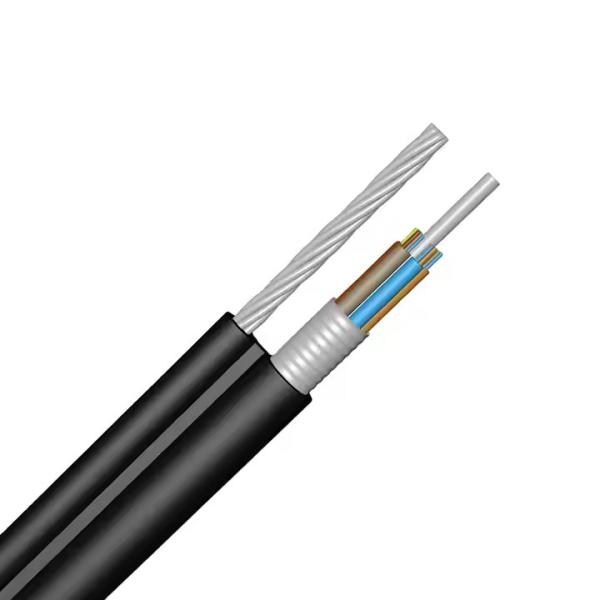

Figure 8 Fiber Optic Cable
  • Self-Supporting: The Figure 8 Fiber Optic Cable is designed to be self-supporting, eliminating the need for additional hardware or structures.
  • Stranded Steel Wire: The cable is reinforced with stranded steel wire, providing high strength and support for aerial installations.
  • UV PE Jacket: The cable is jacketed with UV PE material, which provides excellent protection against harsh weather conditions and UV radiation.
  • Aluminum Tape/Steel Tape Armored: The cable is armored with either aluminum tape or steel tape, providing additional protection against rodents, moisture, and other external factors.
Figure 8 Fiber Optic Cable With Aluminum Tape / Steel Tape Armored Design And Self-Supporting For Harsh Weather Conditions
Figure 8 Fiber Optic Cable With Aluminum Tape / Steel Tape Armored Design And Self-Supporting For Harsh Weather Conditions
Figure 8 Fiber Optic Cable With Aluminum Tape / Steel Tape Armored Design And Self-Supporting For Harsh Weather Conditions

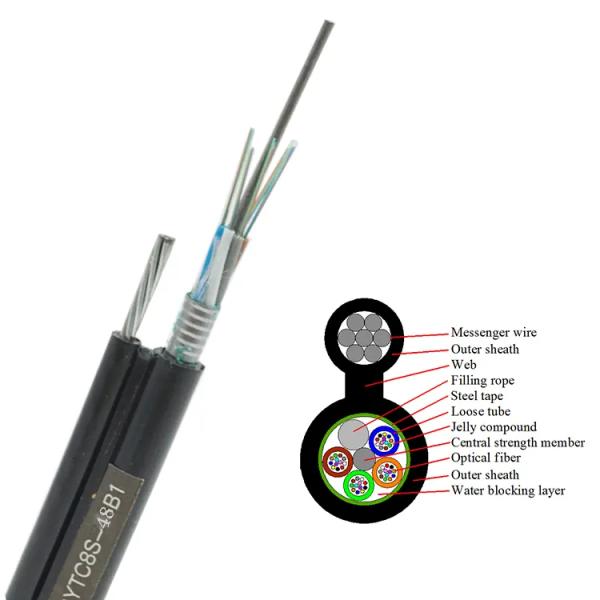

Cable structure and parameter
Fiber
number
Galvanized steel wire
diameter
Loose
tube
Sheath thickness
(nominal*)
Connect
dimension
Cable dimension
W*H
(nominal**)
Weight
(approx.)
mm
mm
mm
mm
mm
kg/km
6
1.6
2.5
1.5
1.5*1.5
6.8*11.5
70
12
1.6
3
1.5
1.5*1.5
7.4*12.0
77

* The nominal sheath thickness may have a tolerance with ±0.2mm.
** The nominal cable dimension may have a tolerance with ±0.5mm.

Figure 8 Fiber Optic Cable With Aluminum Tape / Steel Tape Armored Design And Self-Supporting For Harsh Weather Conditions

Performance of Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)
Cable Type
Fiber Count
Max.Fiber In Tubes
Cable Weight Kg/Km
Cable Diameter(mm)
Tension Strength Long/Short Term N
Crush Resistance Long/Short Term N/100MM
GYXTC8S 2~8
2~8
8
117
8.1*16.9
2000/6000
300/1000
GYXTC8S 10~12
10~12
12
121
8.3*17.0
2000/6000
300/1000
S/N
Item
Test Method
Acceptance Condition
1
Tensile Strength IEC 794-1-E1
_Load: 5.0KN _Length of cable under load: 50 m
-Load time: 1min
- Loss change £ 0.1 dB @1550 nm
- No fiber break and no sheath damage.
2
Crush Test
IEC 794-1-E3
- Load: 1.0KN/100mm
- Load time: ≥1min.
- Loss change £ 0.1 dB @1550 nm
'- No fiber break and no sheath damage.
3
Impact Resistance
IEC 794-1-E4
- Points of impact: 3
-Times of per point: 1
- Impact energy: 4.5 NŸm
- Radius of hammer head: 12.5mm
- Loss change £ 0.1 dB @1550 nm
- No fiber break and no sheath damage.
4
Repeated Bending
IEC 794-1-E6
- Bending radius: 20 x cable
- Load: 150 N
- Flexing rate: 3 sec/cycle
- No. of cycle: 30
- Loss change £ 0.1 dB @1550 nm
- No fiber break and no sheath damage.
5
Torsion
IEC 794-1-E7
- Length: 1 m
- Load: 150 N
- Twist angle: ±90°
- Twist rate: 1 min/cycle
- No. of cycle: 10
- Loss change £ 0.1 dB @1550 nm
- No fiber break and no sheath damage.
6
Water Penetration Test
IEC 794-1-F5B
- Height of water: 1 m
- Sample length: 3 m
- Test time: 24 hours
- No water shall have leaked from the opposite end of cable.
7
Temperature Cycling Test
IEC 794-1-F1
- Temperature step:
+20oC→-40oC→+70oC →+20oC
- Time per each step: 12 hrs
- Number of cycle: 2
- Loss change £ 0.05 dB/km@1550 nm
- No fiber break and no sheath damage.
8
Compound Flow
IEC 794-1-E14
- Sample length: 30 cm
- Temp: 70°C ± 2°C
- Time: 24 hours
- No compound flow

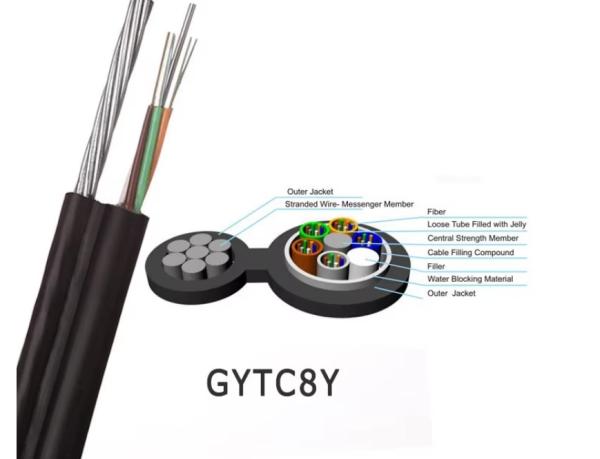

Model Number
GYTC8Y
Structure
Unit
Parameter
Fiber count
fibers
4~30
32~60
62~72
74~84
86~96
Element
--
5
6
7
8
Loose tube Diameter
mm
1.75
2.05
2.05
2.1
2.1
Cores of per tube (no more than)
--
6
12
12
Central strength member/PE sheath (if required)
mm
1.4
1.6
2.2
1.8 (2.9)
1.8 (3.5)
Cable diameter (Nom.)
mm
9.1
9.9
10.5
11.2
11.8
Weight (Approx.)
Kg/km
133
152
175
180
190

Technical Parameters:

Product name
GYTC8A/GYTC8Y
Fiber type
G652D/ G657A
Fiber color
Yellow/Aqua/Rose red/Black/White or Customized
Application
Communication network, aerial, direct buried, duct, ect.
MOQ
1000 Meters
Lead time
Within 15 days or negotiation
Payment
Paypal / TT / DP or negotiation
Shipping
Express/Sea Freight/Air Freight/Land Transportation
*Standard length:1000m;Other length availabe
*The above is just a suggestion for container loading, please consult our sales department for the specific quantity

Packing and Shipping:

Packaging and Shipping

Figure 8 Fiber Optic Cable With Aluminum Tape / Steel Tape Armored Design And Self-Supporting For Harsh Weather Conditions

Figure 8 Fiber Optic Cable With Aluminum Tape / Steel Tape Armored Design And Self-Supporting For Harsh Weather Conditions

Figure 8 Fiber Optic Cable With Aluminum Tape / Steel Tape Armored Design And Self-Supporting For Harsh Weather Conditions
Welcome to your inquiry! Welcome to visit our factory!
Please use your lucky hands to scan the code and add me on WhatsApp.
