Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable
Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable
Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable
Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable
Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable
Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable
Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable
Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable
Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable
Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable
Specifications
Brand Name :
JQ/OEM
Model Number :
GYXTW
Certification :
ISO9001
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Per day
Delivery Time :
3-5dyas
Packaging Details :
1/2/3/4/5 km in one wooden drum
Jacket material :
HDPE
Outer diameter :
6/7/8mm
Steel wire :
0.7/0.8/1.0mm
Color :
Black
Fiber count :
2/4/6/8/12/24 Core
Structure :
Unit tube
Strength member :
Two steel wire
Installation :
Aerial &Duct
Product name :
Outdoor Optic Fiber Cable
Fiber type :
YOFC or as request
Oem :
Available
Description

Outdoor singlemode overhead armored fibre optical cable gyxtw 2 4 6 8 12 24 core fiber optic cable

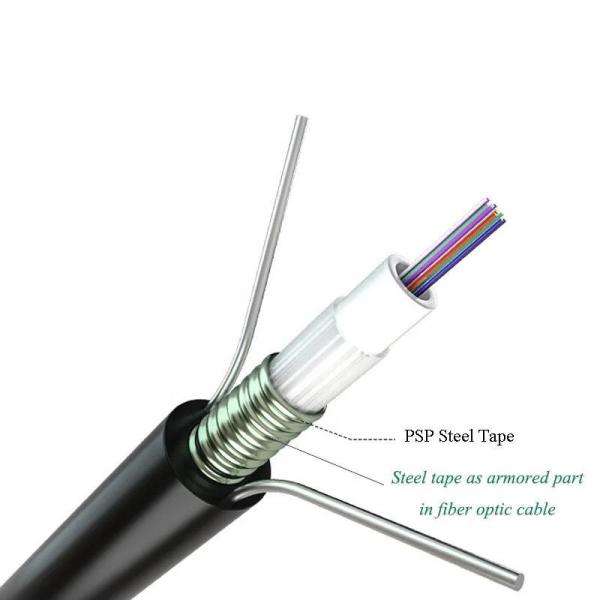

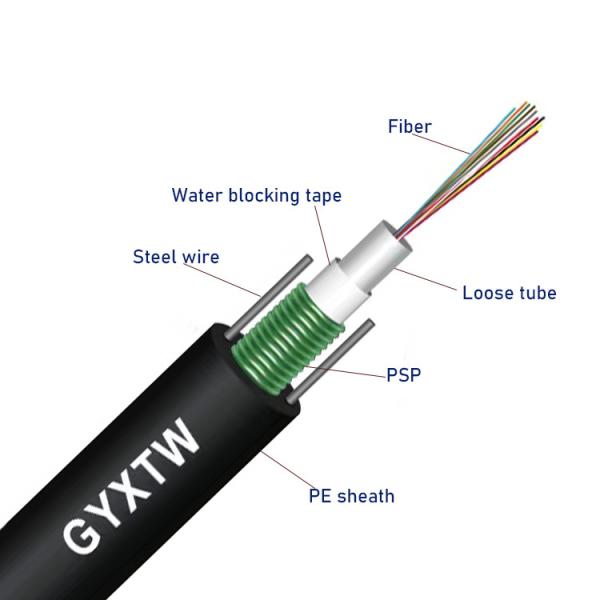

GYXTW Fiber optic cable involves 250μm optical fibers into a loose tube filled with a waterproof compound.water blocking tape is placed between the steel tape and loose tube to insure the cable's compactness and longitudinal water blocking.this type is widely used for long-distance communication and inter-office communication

Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic CableOutdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable

Features

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

PSP enhancing moisture-proof

Two parallel steel wires ensure tensile strength

Small diameter, light weight and friendly installation

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black

Technical Parameters

Fiber
Count		 Cable
Diameter(mm)		 Cable Weight
kg/km)		 Tensile Strength
Long/Short
Term (N)		 Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)
2~12 8 78 1000/3000 1000/3000 10D/20D
14~24 10 90 1000/3000 1000/3000 10D/20D

Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable

Application

Suitable for Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃

Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable

Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable

Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable

Outdoor Singlemode Overhead Armored Fibre Optical Cable Gyxtw 2 4 6 8 12 24 Core Fiber Optic Cable

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

FAQ

Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes


Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
