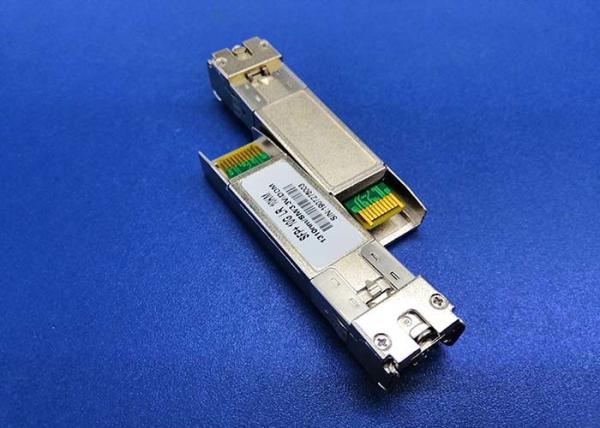

40KM 10Gb/S Optical Transceiver Module LC SFP+ BIDI 1270nm/1330nm
40KM 10Gb/S Optical Transceiver Module LC SFP+ BIDI 1270nm/1330nm
40KM 10Gb/S Optical Transceiver Module LC SFP+ BIDI 1270nm/1330nm
40KM 10Gb/S Optical Transceiver Module LC SFP+ BIDI 1270nm/1330nm
Specifications
Brand Name :
OE
Model Number :
SFP+ 10G 1270 BD 40KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
3000PCS/month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Distance :
40KM
Cable Type :
SMF
Power Supply :
+3.3V
Wavelength :
TX 12700nm RX 1330nm
DDM :
With
Connector :
LC
Rate :
10Gbps
Fiber Type :
Simplex
Transmitter :
DFB
Form Factor :
SFP+
Description

SM 40KM Distance 10Gb/S Optical Transceiver Module LC SFP+ BIDI 1270nm/1330nm

PRODUCT DESCRIPTION

The SFP+10G-LR modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor Supports 10GBASE Ethernet and OTU2/OTU2e .
The SFP+ LR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.


SFP+10G-LR modules Complaint with IEEE 802.3ae 10GBASE-LR,Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit SFP module “SFP+”,1270nm DFB transmitter, PIN photo-detector,LC connector,2-wire interface for management specifications compliant with SFF 8472 digital diagnostic, Compliant with SFF8472 Digital Diagnostic Standard(DDM)

PRODUCT FEATURES

2-wire interface with integrated Digital Diagnostic monitoring
Hot-pluggable SFP+ footprint

Up to 10Gbps Data Links
Specifications compliant with SFF 8472

Case operating temperature range:0°C to 70°C

Up to 40KM transmission on SMF

Compliant with SFP+ MSA with LC connector

1270nm Laser and 1330nm PIN-TIA
Metal enclosure, for lower EMI

Single 3.3V power supply
Power dissipation < 1.5W

Applications

10GBASE-BX 10GBASE-LW at 9.953Gbps 10GBASE-LW at 9.953Gbps
10GBASE-LR at 10.3125Gbps Other Optical Links Other Optical Links
10G Ethernet with FEC
10G Fiber Channel


Electrical Characteristics

Parameter Symbol Min. Typ. Max. Unit
Transmitter
Input differential impedance Ri 100 Ω
Differential data input swing Vin,pp 180 700 mV
Transmit disable voltage VD 2 Vcc V
Transmit enable voltage VEN Vee Vee+0.8 V
Data dependent input jitter DDJ 0.1 U
Data input Total Jitter TJ 0.28 U
Receiver
Differential data output swing Vout,pp 300 850 mV
Data output rise time,fall time tr 30 P
Los Fault VLOS fault 2 Vcchost V
Los Normal VLOS norm Vee Vee+0.8 V
Total Jitter TJ 0.70 U
Deterministic Jitter DJ 0.42 U


Recommended Operating Conditions

Parameter Symbol Unit Min Typ Max
Storage Temperature Range Ts ℃ 0 70
Power Supply Voltage Vcc V 3.135 3.465
Data Rate Gb/s - 10 -


40KM 10Gb/S Optical Transceiver Module LC SFP+ BIDI 1270nm/1330nm
