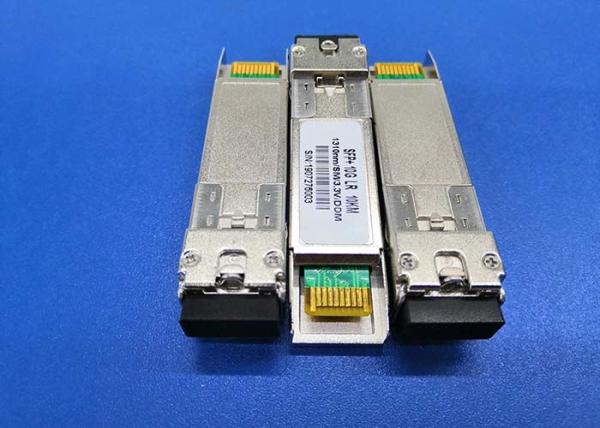

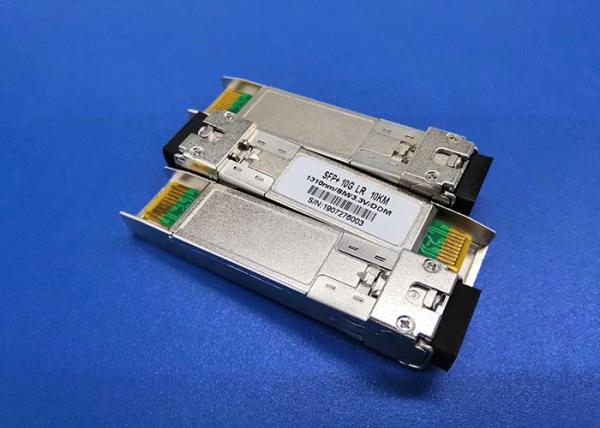

60KM SFP+ TX1330DFB Laser RX1270nm Optical Transceiver Module 10Gbps BIDI LC
60KM SFP+ TX1330DFB Laser RX1270nm Optical Transceiver Module 10Gbps BIDI LC
60KM SFP+ TX1330DFB Laser RX1270nm Optical Transceiver Module 10Gbps BIDI LC
60KM SFP+ TX1330DFB Laser RX1270nm Optical Transceiver Module 10Gbps BIDI LC
Specifications
Brand Name :
OE
Model Number :
SFP+ 10G 1330 BD 60KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
3000PCS/month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Wavelength :
TX 1330nm RX 1270nm
Transmitter :
DFB
Power Supply :
+3.3V
Distance :
60KM
DDM :
With
Rate :
10Gbps
Form Factor :
SFP+
Cable Type :
SMF
Fiber Type :
Simplex
Connector :
LC
Description

60KM SFP+ TX1330DFB Laser RX1270nm Optical Transceiver Module 10Gbps BIDI LC

Applications

10GBASE-BX
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links

PRODUCT FEATURES

Up to 40km on 9/125um SMF

perating case temperature: 0 to 70 °C

ll-metal housing for superior EMI performance

Low power consumption, less than 1.5w

10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER/EW

Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

1330nm DFB transmitter ,1270nm PIN-TIA

Advanced firmware allow customer system encryption information to be stored in transceiver

Cost effective SFP+ solution, enables higher port densities and greater bandwidth

2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

60KM SFP+ TX1330DFB Laser RX1270nm Optical Transceiver Module 10Gbps BIDI LC

PRODUCT DESCRIPTION

The SFP+10G modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor Supports 10GBASE Ethernet and OTU2/OTU2e .

The SFP+10G module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.

SFP+10G modules Complaint with IEEE 802.3ae 10GBASE-LR,Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit SFP module “SFP+”,1330nm DFB transmitter, PIN photo-detector,LC connector,2-wire interface for management specifications compliant with SFF 8472 digital diagnostic, Compliant with SFF8472 Digital Diagnostic Standard(DDM)

Optical module also be called optical fiber module, the translation should be transceiver module. The function of the optical module is the photoelectric conversion, and the transmitter converts the electrical signal into the optical signal. After the transmission through the optical fiber, the receiving end converts the optical signal into the electrical signal. SFP is a kind of optical module.

Optical fiber module classification: according to function:It includes optical receiving module, optical transmitting module, optical transceiver module and optical transmitting module

Specifications
Parameter Symbol Min. Typ. Max. Unit Notes
Maximum Supply Voltage Vcc3 -0.5 - 4.0 V
Storage Temperature TS -40 - 85 °C
Operating Humidity - 5 - 95 %
Maximum Supply Voltage Vcc3 -0.5 - 4.0 V
Parameter Symbol Min. Typ. Max. Unit Notes
Power Supply Voltage Vcc 3.13 3.30 3.47 V
Power Supply Current Icc - - 300 mA
Case Operating Temperature Top 0 - 70 °C
Data Rate - - 10.3125 - Gb/s
9/125um G652 SMF Lmax - - 20 Km

Spec

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Output Opt. Power PO 0 　 5 dBm 　
Side-Mode Suppression Ratio SMSR 30 　 　 dB 　
RMS Spectral Width(-20dB) σ 　 　 1 nm 　
Optical Extinction Ratio ER 3.5 　4.5 　 dB 　
Tx Jitter(SONET)20KHZ-80MHZ Txj1 　 　 0.3 UI 3
Tx Jitter(SONET)4MHZ-80MHZ TXj2 　 　 0.1 UI 3
Path penalty at 800ps/nm@9.95Gb/s 　 　 　 2 dB 　
Relative Intensity Noise RIN 　 　 -128 dB/Hz 　
Center Wavelength λc 1320 1330 1340 nm 　
Receiver
RX Sensitivity @10.3 Gb/s SENS 　 　 -16 dBm 1,2
Receiver Overload 　 -1 　 　 dBm 　
Optical Center Wavelength λC 1260 　1270 1280 nm 　
LOS De-Assert LOSD 　 　 -17 dBm 　
LOS Assert LOSA -30 　 　 dBm 　
LOS Hysteresis 　 0.5 　2 　6 dB 　

Notes:

1. Measured with conformance signals defined in FC-PI-2 Rev. 10.0 specifications.

2. Measured with PRBS 231-1 at 10-12 BER.
3. GR-253-CORE Issue 4.
4. With optical input power at the receiver between -1 ~ -11dBm
