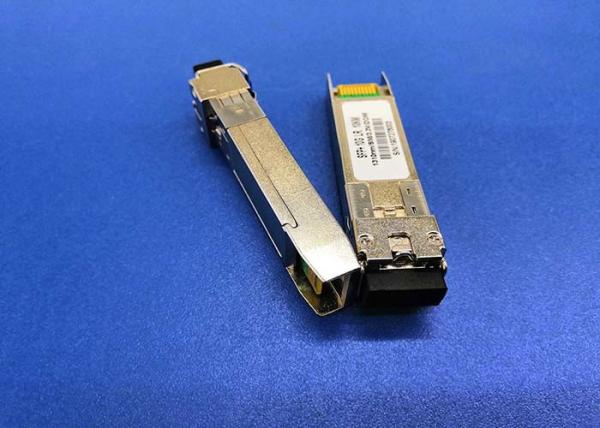

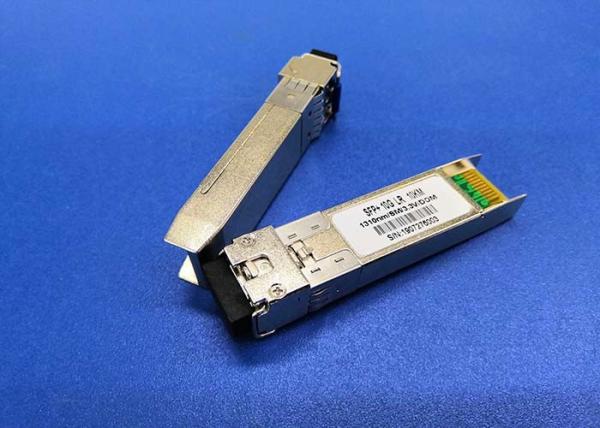

DFB Laser BIDI Fiber Optic Module TX1330nm/RX1270nm Simplex LC 10KM SFP+ LR

PRODUCT FEATURES

Supports 9.95Gb/s to 10.3Gb/s data rates

Simplex LC Connector Bi-Directional SFP+ Optical Transceiver

Single 3.3V Supply

Up to 10km on 9/125um SMF

1330nm DFB Laser transmitter,1270nm receiver

SFP+ MSA SFF-8431 Compliant

Digital Diagnostic SFF-8472 Compliant

Operating case temperature:

Standard: 0 ~ 70 °C

PRODUCT DESCRIPTION

SFP+10G-LR modules Complaint with IEEE 802.3ae 10GBASE-LR,Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit SFP module “SFP+”,1330nm DFB transmitter, PIN photo-detector,LC connector,2-wire interface for management specifications compliant with SFF 8472 digital diagnostic, Compliant with SFF8472 Digital Diagnostic Standard(DDM)

SFP+10G-LR Single-Mode Transceiver is SFP+ modules for duplex data communication as 8G Fiber Channel, IEEE 802.3ae 10G Base-LR/LW It is SFP+ 20-PIN Connector to allow hot plug capability.

The SFP+10G-LR modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor Supports 10GBASE Ethernet and OTU2/OTU2e .

Applications

10GBASE-BX 10GBASE-LW at 9.953Gbps
10GBASE-LR at 10.3125Gbps Other Optical Links
10G Ethernet with FEC
10G Fiber Channel

Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note
Average Output Power POUT -6.5 1 dBm Note (1)
Extinction Ratio ER 3.6 5.0 dB
Center Wavelength λC 1320 1330 1340 nm DFB Laser
Side Mode Suppression Ratio SMSR 30 dB
Spectrum Bandwidth(-20dB) σ 1 nm
Differential Line Input Impedance RIN 90 100 110 Ohm
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety) Note (2)

Note (1): Measure at 2^7-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

V. Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note
Input Optical Wavelength λIN 1260 1270 1280 nm PIN-TIA
Receiver Sensitivity PIN -14 dBm Note (1)
Input Saturation Power (Overload) PSAT -3 dBm
Los Of Signal Assert PA -30 dBm
Los Of Signal De-assert PD -17 dBm Note (2)
LOS Hysteresis PA-PD 0.5 2 6 dB

Note (1): Measured with Light source 1270nm, ER=5dB; BER =<10^-12 @PRBS=2^7-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)

Specifications
Parameter Symbol Min. Typ. Max. Unit Notes
Maximum Supply Voltage Vcc3 -0.5 - 4.0 V
Storage Temperature TS -40 - 85 °C
Operating Humidity - 5 - 95 %
Maximum Supply Voltage Vcc3 -0.5 - 4.0 V
Parameter Symbol Min. Typ. Max. Unit Notes
Power Supply Voltage Vcc 3.13 3.30 3.47 V
Power Supply Current Icc - - 300 mA
Case Operating Temperature Top 0 - 70 °C
Data Rate - - 10.3125 - Gb/s
9/125um G652 SMF Lmax - - 10 Km
