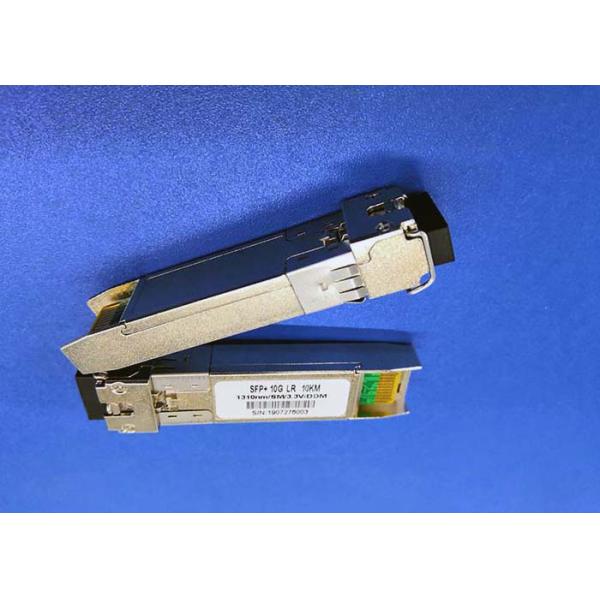

SFP+ Simplex Fiber Optic Transceiver Module 1270nm DFB Laser RX1330nm 10Gbps 10KM BIDI
SFP+ Simplex Fiber Optic Transceiver Module 1270nm DFB Laser RX1330nm 10Gbps 10KM BIDI
SFP+ Simplex Fiber Optic Transceiver Module 1270nm DFB Laser RX1330nm 10Gbps 10KM BIDI
SFP+ Simplex Fiber Optic Transceiver Module 1270nm DFB Laser RX1330nm 10Gbps 10KM BIDI
Specifications
Brand Name :
OE
Model Number :
SFP+ 10G 1270 BD 10KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
3000PCS/month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Rate :
10Gbps
Distance :
10KM
Cable Type :
SMF
DDM :
With
Wavelength :
TX 12700nm RX 1330nm
Connector :
LC
Fiber Type :
Simplex
Power Supply :
+3.3V
Description

SFP+ Simplex LC 1270nm DFB Laser RX1330nm 10Gbps Fiber Optic Module 10KM BIDI

PRODUCT FEATURES

1270nm DFB Transmitter, PIN Photodiode and TIA
Compliant to SFP+MSA
SM 9/125um up to 10Km
Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
Built-in digital diagnostic monitoring functions
All-Metal housing for superior EMI Performance
Power dissipation < 1W, Single 3.3V power supply
Operating Case Temperature Standard: 0℃~+70℃
Electronic Interface compliant with SFF-8431
Digital Diagnostic Monitor Function Compatible with SFF-8472
Compliant with IEEE 802.3ae 10GBASE-LR/LW

Applications

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other Optical Links

10GBASE-BX

PRODUCT DESCRIPTION

SFP+10G-LR modules Complaint with IEEE 802.3ae 10GBASE-LR,Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit SFP module “SFP+”,1270nm DFB transmitter, PIN photo-detector,LC connector,2-wire interface for management specifications compliant with SFF 8472 digital diagnostic, Compliant with SFF8472 Digital Diagnostic Standard(DDM)

The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

The SFP+10G-LR modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor Supports 10GBASE Ethernet and OTU2/OTU2e .

SFP+10G-LR Single-Mode Transceiver is SFP+ modules for duplex data communication as 8G Fiber Channel, IEEE 802.3ae 10G Base-LR/LW It is SFP+ 20-PIN Connector to allow hot plug capability.

Digital diagnostic monitor functions are available via I2C. This module is designed and operates at DFB Laser 1270nm wavelength.

Recommended Operating Conditions

Parameter Symbol Unit Min Typ Max
Storage Temperature Range Ts ℃ 0 70
Power Supply Voltage Vcc V 3.135 3.465
Data Rate Gb/s - 10 -

Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note
Average Output Power POUT -6.5 1 dBm Note (1)
Extinction Ratio ER 3.6 5.0 dB
Center Wavelength λC 1260 1270 1280 nm DFB Laser
Side Mode Suppression Ratio SMSR 30 dB
Spectrum Bandwidth(-20dB) σ 1 nm
Differential Line Input Impedance RIN 90 100 110 Ohm
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety) Note (2)

Note (1): Measure at 2^7-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

V. Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note
Input Optical Wavelength λIN 1320 1330 1340 nm PIN-TIA
Receiver Sensitivity PIN -14 dBm Note (1)
Input Saturation Power (Overload) PSAT -3 dBm
Los Of Signal Assert PA -30 dBm
Los Of Signal De-assert PD -17 dBm Note (2)
LOS Hysteresis PA-PD 0.5 2 6 dB

Note (1): Measured with Light source 1330nm, ER=5dB; BER =<10^-12 @PRBS=2^7-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
