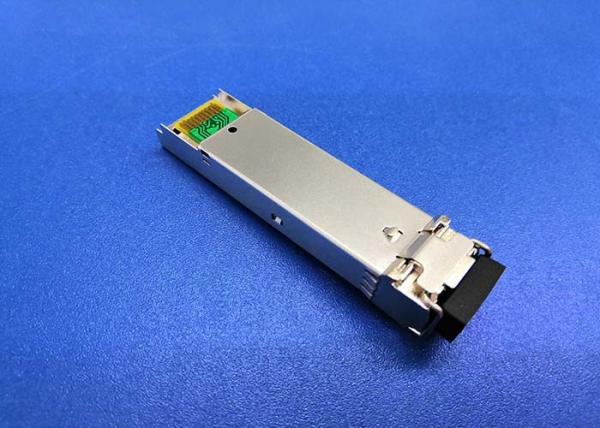

SFP 1550DFB Laser 40KM 1000BASE Fiber Optic Module SM BIDI Single Mode

PRODUCT DESCRIPTION

The SFP Module compliants with Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

1.25Gbps SFP BIDI 40KM Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550nm.

1.25Gbps SFP BIDI 60KM Optical Transceiver Module Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFP laser and the PIN photo-detector .

PRODUCT FEATURES

Data-rate of 1.25Gbps/1.063Gbps operation

1550nm DFB laser and 1310nm PINTIA for 40km transmission

Compliant with SFP MSA and SFF-8472 with Simplex LC receptacle

Digital Diagnostic Monitoring:

Internal Calibration or External Calibration

Compatible with SONET OC-24-LR-1

+3.3V single power supply

Operating case temperature:

Commercial : 0 to +70°C

Industrial : -40 to +85°C

Specification of Transmitter

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Note (1): Measured with Light source 1490nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)

Recommended Operating Conditions
