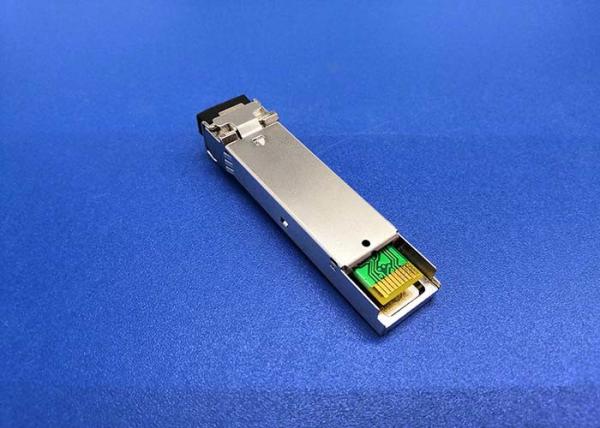

1000BASE-LX Simplex SFP Module , 10KM BIDI SFP Multimode TX1550nm RX1310nm
1000BASE-LX Simplex SFP Module , 10KM BIDI SFP Multimode TX1550nm RX1310nm
1000BASE-LX Simplex SFP Module , 10KM BIDI SFP Multimode TX1550nm RX1310nm
1000BASE-LX Simplex SFP Module , 10KM BIDI SFP Multimode TX1550nm RX1310nm
Specifications
Brand Name :
OE
Model Number :
SFP 1.25G 1550 BD 10KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000PCS/month
Delivery Time :
5 work days
Packaging Details :
Carton
name :
fiber optic SFP module
DDM :
With
Wavelength :
TX 1550nm , RX 1310nm
Distance :
10KM
Connector :
LC
Fiber Type :
Simplex
Rate :
1.25G
Description

1000BASE-LX Simplex SFP Module , 10KM BIDI SFP Multimode TX1550nm RX1310nm

PRODUCT DESCRIPTION

SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

PRODUCT FEATURES

Single 3. 3V Power supply

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Tx1550/Rx1310, 1550nm DFB Laser, 1310nm PIN-TIA

Compliant with MSA SFP Specification

Hot Pluggable,Metal enclosure, for Lower EMI

Simplex LC Connector Interface

DDM function optional

Digital Diagnostic Monitor Function Compatible with SFF-8472

Operating data rate up to 1.25/1.063Gbps

Distance up to 10KM

2 years warranty

Applications

Switched backplane applications

Router/Server interface

Fiber Channel

Switch to Switch interface

Other optical transmission systems

Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note
Average Output Power POUT -9 -3 dBm Note (1)
Extinction Ratio ER 8.2 dB
Center Wavelength λC 1500 1550 1580 nm DFB Laser
Spectrum Bandwidth(-20dB) σ 1 nm
Differential Line Input Impedance RIN 90 100 110 Ohm
Output Eye Mask Compliant with G.959(class 1 laser safety) Note (2)

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note
Input Optical Wavelength λIN 1260 1310 1360 nm
Receiver Sensitivity PIN -24 dBm Note (1)
Los Of Signal Assert PA -35 dBm
Los Of Signal De-assert PD -28 dBm Note (2)
LOS Hysteresis PA-PD 0.5 2 6 dB
Receiver Overload Pmax -PIN -3 dBm

Note (1): Measured with Light source 1310nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)

Recommended Operating Conditions

Parameter Symbol Unit Min Typ Max
Storage Temperature Range Ts ℃ 0 70
Power Supply Voltage Vcc V 3.135 3.465
Data Rate Gb/s - 1.25 -

1000BASE-LX Simplex SFP Module , 10KM BIDI SFP Multimode TX1550nm RX1310nm
