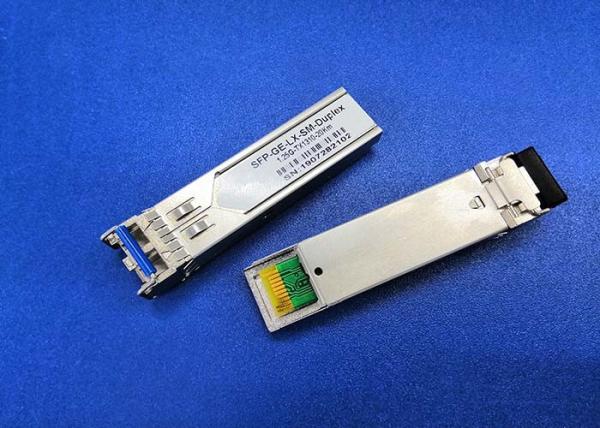

1310nm 10KM 1.25bps Compatible SFP Modules SM Dual LC SFP Module ISO9001 Approved
1310nm 10KM 1.25bps Compatible SFP Modules SM Dual LC SFP Module ISO9001 Approved
1310nm 10KM 1.25bps Compatible SFP Modules SM Dual LC SFP Module ISO9001 Approved
1310nm 10KM 1.25bps Compatible SFP Modules SM Dual LC SFP Module ISO9001 Approved
Specifications
Brand Name :
OE
Model Number :
SFP 1.25G 1310 D 10KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000PCS/month
Delivery Time :
5 work days
Packaging Details :
Carton
Voltage Supply :
3.3V
DDM :
With
Rate :
1.25G
Distance :
10KM
Wavelength :
TX 1310nm
Fiber Type :
Dual
Description

1310nm 10KM 1.25bps Compatible SFP Modules SM Dual LC Connector

PRODUCT DESCRIPTION

This module is designed to be compliant with SFF-8472 SFP Multi-source Agreement (MSA)

An optical module, also called fiber optic transceiver or optical transceiver, is a typically hot-pluggable device used in high-bandwidth data communications applications. Transceiver modules typically have an electrical interface on the side that connects to the inside of the system and an optical interface on the other side that connects to the various devices through a fiber optic cable. An optical module functions as a photoelectric converter which converts the electrical signal into light and vice versa.

The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

1.25Gb/S SFP Duplex Optical Transceiver Module Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector .The module data link up to 20KM in 9/125um single mode fiber.

PRODUCT FEATURES

Single 3. 3V Power supply

Operating data rate up to 1.25/1.063Gbps

Tx1310, 1310nm FP Laser, PIN-TIA

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Compliant with MSA SFP Specification

Digital Diagnostic Monitor Function Compatible with SFF-8472

Dual LC Connector Interface

Hot Pluggable,Metal enclosure, for Lower EMI

DDM function optional

Distance up to 20KM

2 years warranty

1310nm 10KM 1.25bps Compatible SFP Modules SM Dual LC SFP Module ISO9001 Approved

Optical and Electrical Characteristics

Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc 1260 1310 1360 nm
Spectral Width (RMS) ∆λ 4 nm
Average Output Power Pout -9 -3 dBm 1
Extinction Ratio ER 9 dB
Optical Rise/Fall Time (20%~80%) tr/tf 0.26 ns
Data Input Swing Differential VIN 400 1800 mV 2
Input Differential Impedance ZIN 90 100 110 Ω
Receiver
Receiver Sensitivity -24 dBm 3
Receiver Overload -3 dBm 3
LOS De-Assert LOSD -28 dBm
LOS Assert LOSA -35 dBm
LOS Hysteresis 0.5 6 dB
Data Output Swing Differential Vout 400 1800 mV 4


Notes:

1. The optical power is launched into SMF.

2. Measured with a PRBS 27-1 test pattern @1250Mbps, BER ≤1×10-12.
