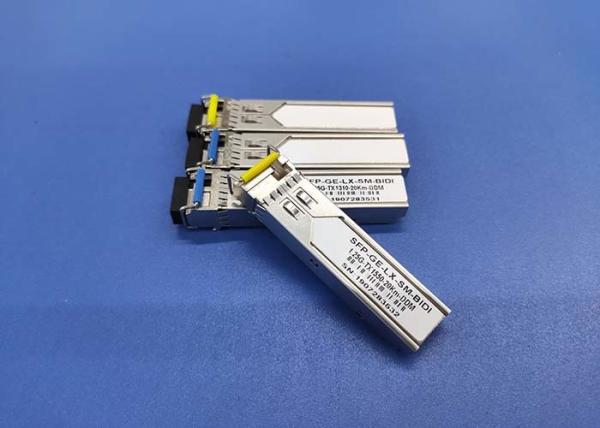

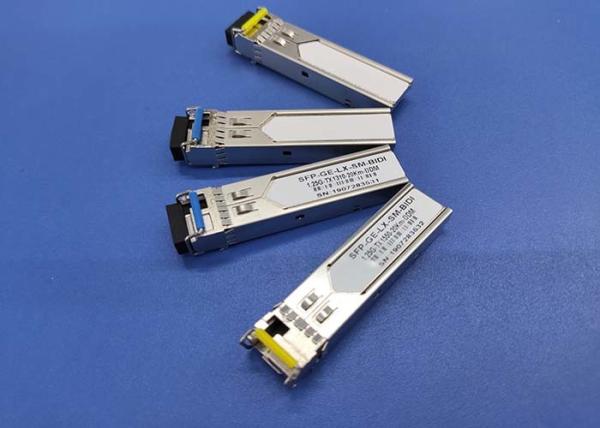

1.25G/s BIDI 20KM Compatible SFP Modules Single-mode 1550/1310nm

PRODUCT FEATURES

Single 3. 3V Power supply

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Compliant with MSA SFP Specification

Hot Pluggable,Metal enclosure, for Lower EMI

Tx1550/Rx1310, 1550nm DFB Laser, 1310nm PIN-TIA

Simplex LC Connector Interface

DDM function optional

Operating data rate up to 1.25/1.063Gbps

Distance up to 20KM

Digital Diagnostic Monitor Function Compatible with SFF-8472

2 years warranty

PRODUCT DESCRIPTION

1.25Gbps SFP BIDI 20KM Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550nm.

This module is designed to be compliant with SFF-8472 SFP Multi-source Agreement (MSA)

1.25Gbps SFP BIDI 20KM Optical Transceiver Module Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 20KM in 9/125um single mode fiber.

The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Specification of Receiver

Note (1): Measured with Light source 1310nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)

Specification of Transmitter

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition
