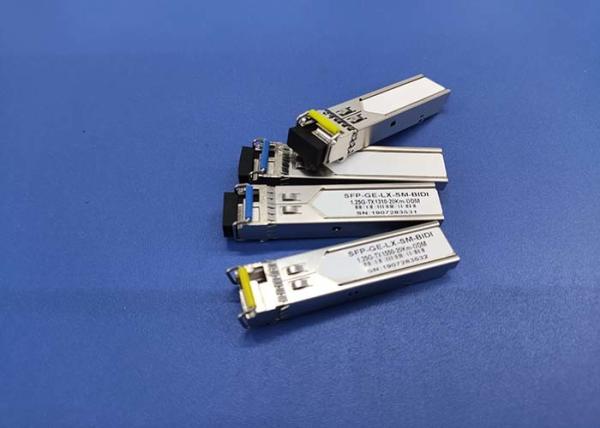

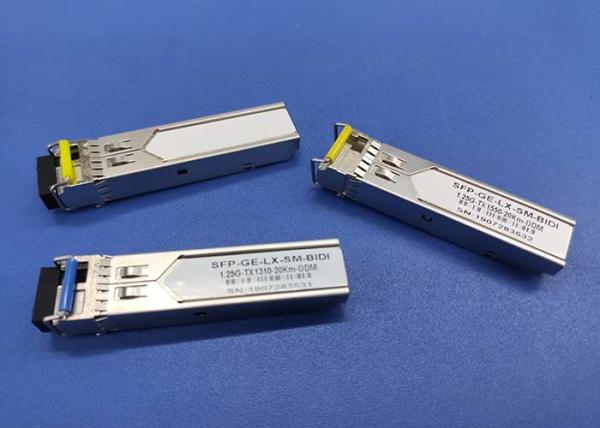

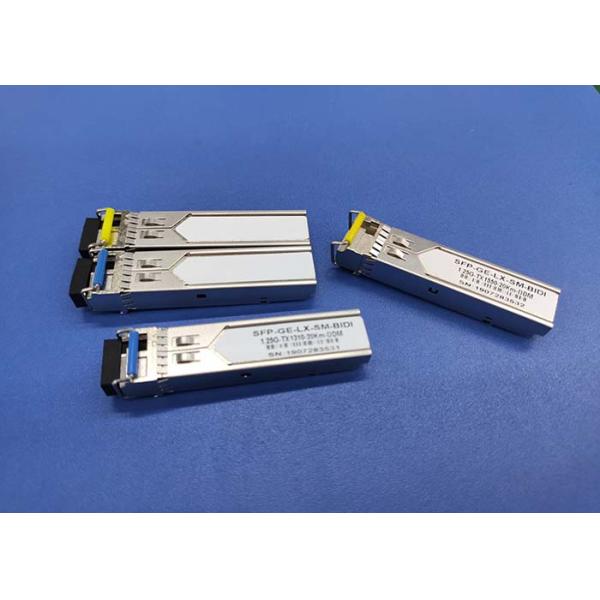

1310nm/1550nm 1.25Gb/S Compatible SFP Modules 20KM Bi-Di Simplex LC

PRODUCT FEATURES

Simplex LC Connector Interface

DDM function optional

Low power consumption, < 1W

Hot Pluggable,Metal enclosure, for Lower EMI

Single 3. 3V Power supply

Tx1310/Rx1550, 1310nm FP Laser, 1550nm PIN-TIA

Distance up to 20KM

Compliant with MSA SFP Specification

Digital Diagnostic Monitor Function Compatible with SFF-8472

Operating data rate up to 1.25/1.063Gbps

2 years warranty

PRODUCT DESCRIPTION

Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 20km application.

1.25G SFP Transceiver products have been widely used in fields like network security, storage,server, telecommunication, finance, railway, military, oil, customs and water conservation, etc.

1.25Gbps SFP BIDI Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1310nm.

Applications

Fiber Media Converter

Firewall

Storage device

Telecommunication

Fiber Channel

NIC network cards

Switches

Routers

VPN equipment

Traffic control device

GAP

Recommended Operating Conditions

Specification of Transmitter

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Note (1): Measured with Light source 1550nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
