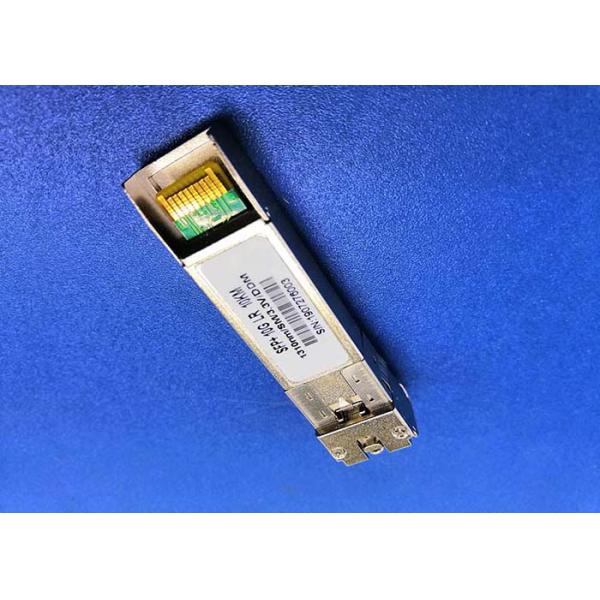

Professional 10G SFP Module 1330nm DFB Laser RX1270nm LC 10KM Bi Directional
Professional 10G SFP Module 1330nm DFB Laser RX1270nm LC 10KM Bi Directional
Professional 10G SFP Module 1330nm DFB Laser RX1270nm LC 10KM Bi Directional
Professional 10G SFP Module 1330nm DFB Laser RX1270nm LC 10KM Bi Directional
Specifications
Brand Name :
OE
Model Number :
SFP+ 10G 1330 BD 10KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
3000PCS/month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Rate :
10Gbps
Distance :
10KM
Power Supply :
+3.3V
Cable Type :
SMF
Wavelength :
TX 1330nm RX 1270nm
Connector :
LC
DDM :
With
Transmitter :
DFB
Fiber Type :
Simplex
Form Factor :
SFP+
Description

1330nm DFB Laser RX1270nm SFP+ 10G SFP Module LC 10 Gigabit 10KM Bi-Directional

PRODUCT FEATURES

Up to 10km on 9/125um SMF

1330nm DFB Laser transmitter,1270nm receiver

SFP+ MSA SFF-8431 Compliant

Digital Diagnostic SFF-8472 Compliant

Operating case temperature:

Standard: 0 ~ 70 °C

Supports 9.95Gb/s to 10.3Gb/s data rates

Simplex LC Connector Bi-Directional SFP+ Optical Transceiver

Single 3.3V Supply

Applications

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

10GBASE-BX

Other Optical Links

PRODUCT DESCRIPTION

SFP+10G Single-Mode Transceiver is SFP+ modules for duplex data communication as 8G Fiber Channel, IEEE 802.3ae 10G Base-LR/LW It is SFP+ 20-PIN Connector to allow hot plug capability.

SFP+10G modules Complaint with IEEE 802.3ae 10GBASE-LR,Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit SFP module “SFP+”,1330nm DFB transmitter, PIN photo-detector,LC connector,2-wire interface for management specifications compliant with SFF 8472 digital diagnostic, Compliant with SFF8472 Digital Diagnostic Standard(DDM)

The SFP+10G modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor Supports 10GBASE Ethernet and OTU2/OTU2e .

Specifications
Parameter Symbol Min. Typ. Max. Unit Notes
Maximum Supply Voltage Vcc3 -0.5 - 4.0 V
Storage Temperature TS -40 - 85 °C
Operating Humidity - 5 - 95 %
Maximum Supply Voltage Vcc3 -0.5 - 4.0 V
Parameter Symbol Min. Typ. Max. Unit Notes
Power Supply Voltage Vcc 3.13 3.30 3.47 V
Power Supply Current Icc - - 300 mA
Case Operating Temperature Top 0 - 70 °C
Data Rate - - 10.3125 - Gb/s
9/125um G652 SMF Lmax - - 10 Km

Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note
Average Output Power POUT -6.5 1 dBm Note (1)
Extinction Ratio ER 3.6 5.0 dB
Center Wavelength λC 1320 1330 1340 nm DFB Laser
Side Mode Suppression Ratio SMSR 30 dB
Spectrum Bandwidth(-20dB) σ 1 nm
Differential Line Input Impedance RIN 90 100 110 Ohm
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety) Note (2)

Note (1): Measure at 2^7-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

V. Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note
Input Optical Wavelength λIN 1260 1270 1280 nm PIN-TIA
Receiver Sensitivity PIN -14 dBm Note (1)
Input Saturation Power (Overload) PSAT -3 dBm
Los Of Signal Assert PA -30 dBm
Los Of Signal De-assert PD -17 dBm Note (2)
LOS Hysteresis PA-PD 0.5 2 6 dB

Note (1): Measured with Light source 1270nm, ER=5dB; BER =<10^-12 @PRBS=2^7-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
