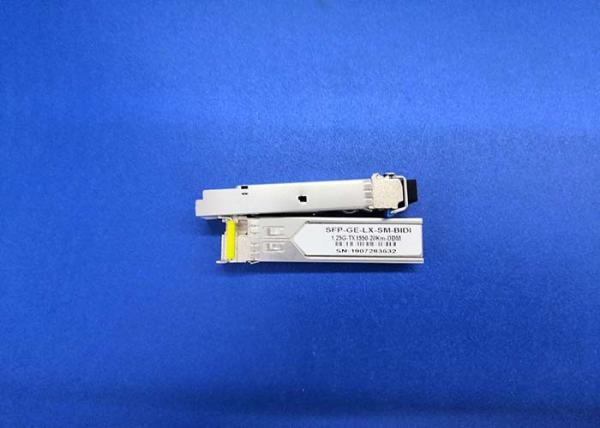

1550nm DFB Laser SFP Optical Module FE 40KM Bi-Directional RX1310nm Simplex LC

PRODUCT FEATURES

+3.3V single power supply

Operating case temperature:

Commercial : 0 to +70°C

Industrial : -40 to +85°C

Data-rate of 155Mbps operation

1550nm DFB laser and 1310nm PIN-TIA for 40km transmission

Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

Digital Diagnostic Monitoring:

Internal Calibration or External Calibration

Compatible with SONET OC-24-LR-1

Product Applications

Firewall

Storage device

NIC network cards

Switches

Routers

VPN equipment

Traffic control device

GAP

Fiber Media Converter

Telecommunication

Fiber Channel

PRODUCT DESCRIPTION

155Mbps SFP BIDI Optical Transceiver Module is bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550nm.

The small form-factor pluggable (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network vendors. SFP transceivers are designed to support SONET, Gigabit Ethernet, Fibre Channel, and other communications standards.

155Mbps SFP BIDI Optical Transceiver Module Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 40KM in 9/125um single mode fiber.

Recommended Operating Conditions

Specification of Transmitter

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Note (1): Measured with Light source 1310nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
