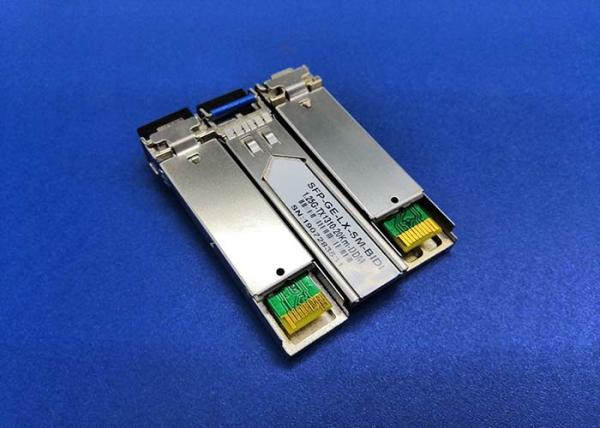

Simplex LC 100BASE SFP Transceiver Module 20KM Distance 1310nmFP Laser RX1550nm BIDI
Simplex LC 100BASE SFP Transceiver Module 20KM Distance 1310nmFP Laser RX1550nm BIDI
Simplex LC 100BASE SFP Transceiver Module 20KM Distance 1310nmFP Laser RX1550nm BIDI
Simplex LC 100BASE SFP Transceiver Module 20KM Distance 1310nmFP Laser RX1550nm BIDI
Specifications
Brand Name :
OE
Model Number :
SFP 155M 1310 BD 20KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000PCS/month
Delivery Time :
5 work days
Packaging Details :
Carton
Rate :
155Mbps
Connector :
LC
Fiber Type :
Simplex
DDM :
With
Form Type :
SFP
Wavelength :
TX 1310nm , RX 1550nm
Distance :
20KM
Cable Type :
SMF
Description

Simplex LC 100BASE SFP Optical Module 20KM Distance 1310nmFP Laser RX1550nm BIDI

PRODUCT FEATURES

Compatible with SONET OC-24-LR-1
+3.3V single power supply
Operating case temperature:
Commercial : 0 to +70°C
Industrial : -40 to +85°C

Data-rate of 155Mbps operation
1310nm FP laser and 1550nm PIN-TIA for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration


PRODUCT DESCRIPTION

155Mbps SFP BIDI 20KM Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1310nm.

The SFP Module compliants with Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Product Applications


VPN equipment
Traffic control device
GAP
Fiber Media Converter
Firewall
Storage device
Telecommunication
NIC network cards
Switches
Routers
Fiber Channel


SPEC

Parameter Symbol Min. Typical Max. Unit
Transmitter Section:
Center Wavelength λc 1310 1260 1310 1360 nm
Spectral Width σ 4 nm
Optical Output Power Pout -9 -3 dBm
Extinction Ratio ER 9 dB
Optical Rise/Fall Time tr / tf 260 ps
Relative Intensity Noise RIN -120 dB/Hz
Total Jitter Contribution TX Δ TJ 0.284 UI
Receiver Section:
Optical Input Wavelength λc 1550 1500 1550 1580 nm
Receiver Overload Pol -3 dBm
RX Sensitivity Sen -30 dBm
RX_LOS Assert LOS A -40 dBm
RX_LOS De-assert LOS D -35 dBm
RX_LOS Hysteresis LOS H 0.5 dB
General Specifications:
Data Rate BR 155 Mbps
Bit Error Rate BER 10-12
Max. Supported Link Length on 9/125μm SMF@155Mb/s LMAX 20 km
Total System Budget LB 21 dB

Recommended Operating Conditions

Parameter Symbol Unit Min Typ Max
Storage Temperature Range Ts ℃ 0 70
Power Supply Voltage Vcc V 3.135 3.465
Data Rate Mb/s - 155 -

Simplex LC 100BASE SFP Transceiver Module 20KM Distance 1310nmFP Laser RX1550nm BIDI
