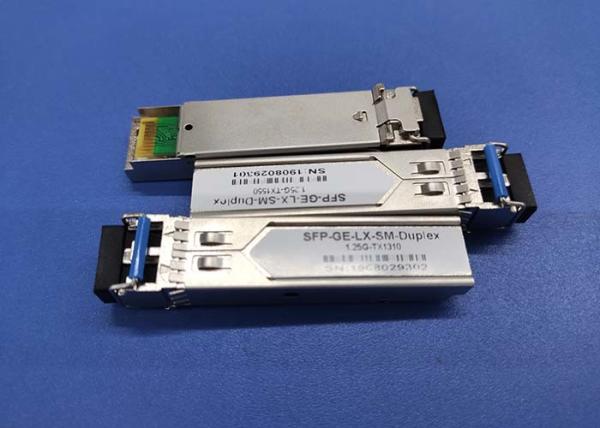

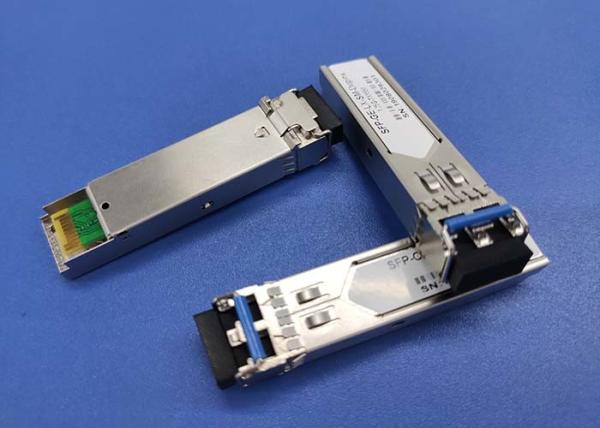

1310nm 20KM 100BASE-LX SFP Transceiver Module Single Mode Duplex LC ISO9001 Approved
1310nm 20KM 100BASE-LX SFP Transceiver Module Single Mode Duplex LC ISO9001 Approved
1310nm 20KM 100BASE-LX SFP Transceiver Module Single Mode Duplex LC ISO9001 Approved
1310nm 20KM 100BASE-LX SFP Transceiver Module Single Mode Duplex LC ISO9001 Approved
Specifications
Brand Name :
OE
Model Number :
SFP 155M 1310 D 20KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000PCS/month
Delivery Time :
5 work days
Packaging Details :
Carton
Rate :
155M
Wavelength :
TX 1310nm
Distance :
20KM
DDM :
With
Fiber Type :
Dual
Connector :
LC
Description

1310nm 20KM 100BASE-LX SFP Transceiver Module Single Mode Duplex LC ISO9001 Approved

PRODUCT FEATURES

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Compliant with MSA SFP Specification

Distance up to 20KM

Single 3. 3V Power supply

Operating data rate up to 155Mbps

Tx1310, 1310nm FP Laser, PIN-TIA

Dual LC Connector Interface

Hot Pluggable,Metal enclosure, for Lower EMI

DDM function optional

Digital Diagnostic Monitor Function Compatible with SFF-8472

2 years warranty

PRODUCT DESCRIPTION

The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

155Mb/S SFP Duplex Optical Transceiver Module Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector .The module data link up to 20KM in 9/125um single mode fiber.

This module is designed to be compliant with SFF-8472 SFP Multi-source Agreement (MSA)

Applications:


--100Base-LX Ethernet
--SONET OC-3/SDH STM-1
-- Fast Ethernet
-- Metro/Access Networks

Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note
Average Output Power POUT -9 -3 dBm Note (1)
Extinction Ratio ER 8.2 dB
Center Wavelength λC 1260 1310 1360 nm FP Laser
Spectrum Bandwidth(-20dB) σ 4 nm
Differential Line Input Impedance RIN 90 100 110 Ohm
Output Eye Mask Compliant with G.959(class 1 laser safety) Note (2)

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note
Receiver Sensitivity PIN -30 dBm Note (1)
Los Of Signal Assert PA -40 dBm
Los Of Signal De-assert PD -36 dBm Note (2)
LOS Hysteresis PA-PD 0.5 2 6 dB
Receiver Overload Pmax -PIN -3 dBm

Note (1): Measured with Light source 1310nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
