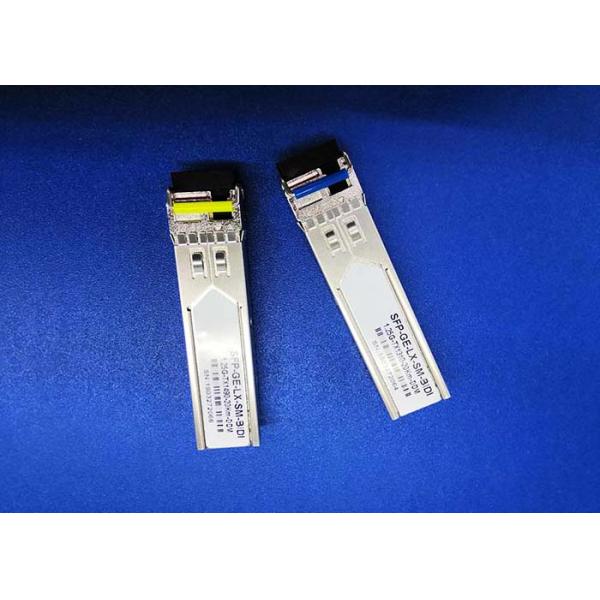

1.25Gb/S Single Mode Fiber Module , Equivalent Cisco Transceiver Module 60KM BIDI 1550/1490nm
1.25Gb/S Single Mode Fiber Module , Equivalent Cisco Transceiver Module 60KM BIDI 1550/1490nm
1.25Gb/S Single Mode Fiber Module , Equivalent Cisco Transceiver Module 60KM BIDI 1550/1490nm
1.25Gb/S Single Mode Fiber Module , Equivalent Cisco Transceiver Module 60KM BIDI 1550/1490nm
Specifications
Brand Name :
OE
Model Number :
SFP 1.25G 1550 BD 60KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
10000PCS/month
Delivery Time :
5 work days
Packaging Details :
Carton
Distance :
60KM
DDM :
With
Wavelength :
TX 1550nm , RX 1490nm
Connector :
LC
Rate :
1.25G
Fiber Type :
Simplex
Description

Single Mode Fiber Module 1.25Gb/S LX SFP Optical Module 60KM BIDI 1550/1490nm

PRODUCT DESCRIPTION

1.25Gbps SFP BIDI 60KM Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550nm.

The SFP transceivers are high performance, cost effective modules supporting 1.25Gbps/1.0625Gbps data-rate and 60km transmission distance with SMF.

Applications

1000Base-EX Ethernet

Metro/Access Networks

1×Fibre Channel

Other Optical Links

PRODUCT FEATURES

Distance up to 60KM

Single 3. 3V Power supply

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Compliant with MSA SFP Specification

Digital Diagnostic Monitor Function Compatible with SFF-8472

Hot Pluggable,Metal enclosure, for Lower EMI

DDM function optional

Operating data rate up to 1.25/1.063Gbps

Tx1550/Rx1490, 1550nm DFB Laser, 1490nm PIN-TIA

Simplex LC Connector Interface

2 years warranty

Recommended Operating Conditions

Parameter Symbol Unit Min Typ Max
Storage Temperature Range Ts ℃ 0 70
Power Supply Voltage Vcc V 3.135 3.465
Data Rate Gb/s - 1.25 -

Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note
Average Output Power POUT -2 2 dBm Note (1)
Extinction Ratio ER 8.2 dB
Center Wavelength λC 1500 1550 1580 nm DFB Laser
Side Mode Suppression Ratio SMSR 30 dB
Spectrum Bandwidth(-20dB) σ 1 nm
Differential Line Input Impedance RIN 90 100 110 Ohm
Output Eye Mask Compliant with G.959(class 1 laser safety) Note (2)

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note
Input Optical Wavelength λIN 1483 1490 1495 nm
Receiver Sensitivity PIN -26 dBm Note (1)
Los Of Signal Assert PA -35 dBm
Los Of Signal De-assert PD -28 dBm Note (2)
LOS Hysteresis PA-PD 0.5 2 6 dB
Receiver Overload Pmax -PIN -3 dBm

Note (1): Measured with Light source 1490nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)

1.25Gb/S Single Mode Fiber Module , Equivalent Cisco Transceiver Module 60KM BIDI 1550/1490nm
