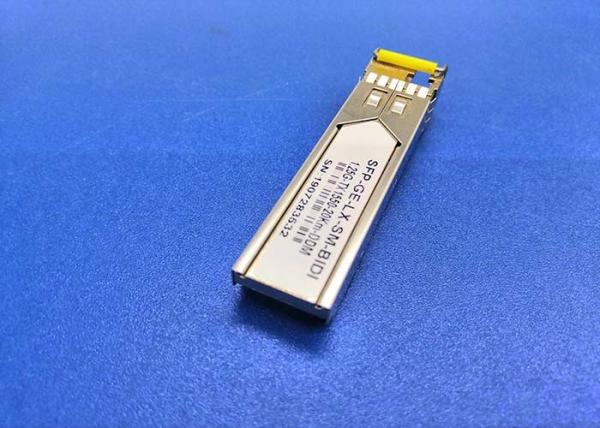

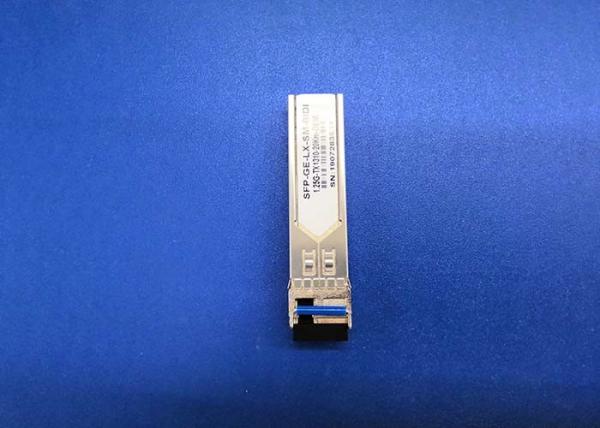

100BASE 1550/1490nm SFP Transceiver Module Simplex LC Connector 60KM Bi Directional
100BASE 1550/1490nm SFP Transceiver Module Simplex LC Connector 60KM Bi Directional
100BASE 1550/1490nm SFP Transceiver Module Simplex LC Connector 60KM Bi Directional
100BASE 1550/1490nm SFP Transceiver Module Simplex LC Connector 60KM Bi Directional
Specifications
Brand Name :
OE
Model Number :
SFP 155M 1550 BD 60KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000PCS/month
Delivery Time :
5 work days
Packaging Details :
Carton
DDM :
With
Distance :
60KM
Rate :
155Mbps
Cable Type :
SMF
Wavelength :
TX 1550nm , RX 1490nm
Form Type :
SFP
Connector :
LC
Power Supply :
+3.3V
Description

100BASE 1550/1490nm SFP Optical Module Simplex LC Connector 60KM Bi-Directional

Applications

Fiber Channel

Switch to Switch interface

Switched backplane applications

Router/Server interface

Other optical transmission systems

PRODUCT DESCRIPTION

155Mbps SFP BIDI Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550nm.

Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1550 nm DFB laser, up to 30dB link budge ensure this module 100Base-LX Ethernet 60km application.

155Mbps SFP BIDI Optical Transceiver Module Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .

PRODUCT FEATURES

Operating data rate up to 155Mbps

Tx1550/Rx1490, 1550nm DFB Laser, 1490nm PIN-TIA

DDM function optional

Simplex LC Connector Interface

Hot Pluggable,Metal enclosure, for Lower EMI

Distance up to 60KM

Single 3. 3V Power supply

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Compliant with MSA SFP Specification

Digital Diagnostic Monitor Function Compatible with SFF-8472

2 years warranty

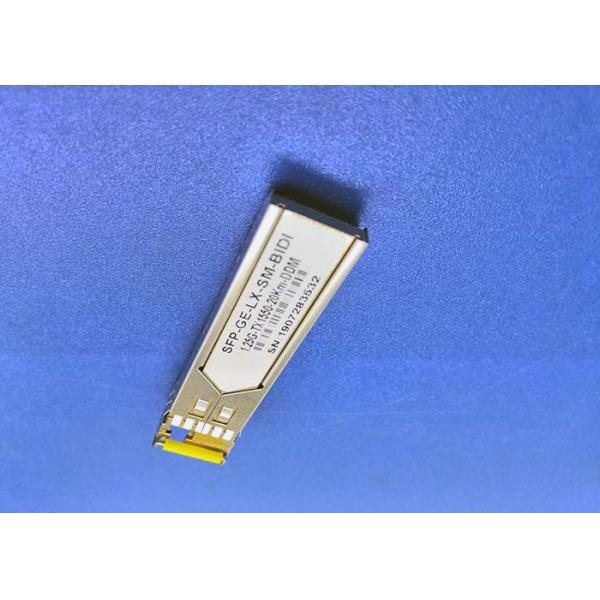

100BASE 1550/1490nm SFP Transceiver Module Simplex LC Connector 60KM Bi Directional

SPEC

Parameter Symbol Min. Typical Max. Unit
Transmitter Section:
Center Wavelength λc 1550 1500 1550 1580 nm
nm
Spectral Width σ 1 nm
Sidemode Supression ratio SSRmin 30 dB
Optical Output Power Pout -4 1 dBm
Extinction Ratio ER 9 dB
Optical Rise/Fall Time tr / tf 260 ps
Relative Intensity Noise RIN -120 dB/Hz
Total Jitter Contribution TX Δ TJ 0.284 UI
Receiver Section:
Optical Input Wavelength
λc 1490 1483 1490 1495 nm
Receiver Overload Pol -3 dBm
RX Sensitivity Sen -34 dBm
RX_LOS Assert LOS A -40 dBm
RX_LOS De-assert LOS D -36 dBm
RX_LOS Hysteresis LOS H 0.5 dB
General Specifications:
Data Rate BR 155 Mbps
Bit Error Rate BER 10-12
Max. Supported Link Length on 9/125μm SMF@155Mb/s LMAX 60 km
Total System Budget LB 30 dB

Recommended Operating Conditions

Parameter Symbol Unit Min Typ Max
Storage Temperature Range Ts ℃ 0 70
Power Supply Voltage Vcc V 3.135 3.465
Data Rate Mb/s - 155 -
