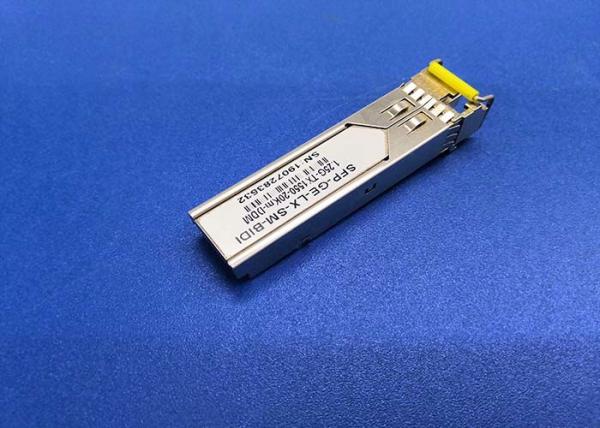

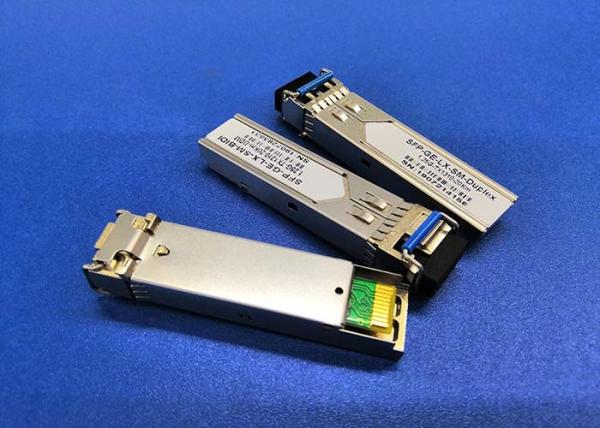

1310/1550nm Bi-Directional Fiber Optic SFP Module 155Mb/S SM LC DDM 10KM

APPLICATIONS

Switch to Switch Interface

Fast Ethernet

Switched Backplane Applications

Router/Server Interface

Other Optical Links

PRODUCT FEATURES

Hot Pluggable,Metal enclosure, for Lower EMI

DDM function optional

Digital Diagnostic Monitor Function Compatible with SFF-8472

Operating data rate up to 155Mbps

Simplex LC Connector Interface

Tx1310/Rx1550, 1310nm FP Laser, 1550nm PIN-TIA

Distance up to 10KM

Single 3. 3V Power supply

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Compliant with MSA SFP Specification

2 years warranty

PRODUCT DESCRIPTION

The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

The small form-factor pluggable (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network vendors. SFP transceivers are designed to support SONET, Ethernet, Fibre Channel, and other communications standards.

155Mbps SFP BIDI 10KM Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1310nm.

SPEC

High Reliability 100% test before shipment

Recommended Operating Conditions
