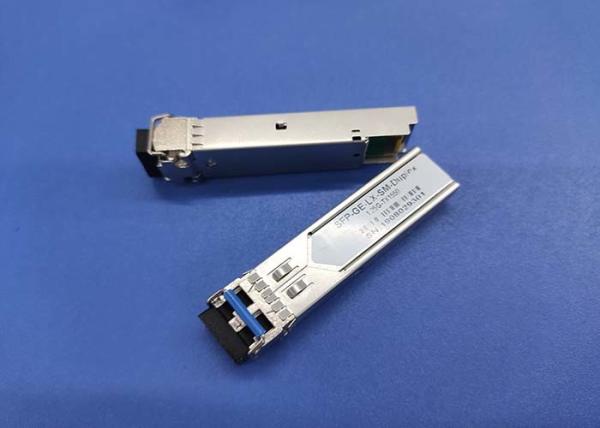

100BASE SM SFP Module LC Connector 1310nm 10KM Duplex ISO9001 Certified
100BASE SM SFP Module LC Connector 1310nm 10KM Duplex ISO9001 Certified
100BASE SM SFP Module LC Connector 1310nm 10KM Duplex ISO9001 Certified
100BASE SM SFP Module LC Connector 1310nm 10KM Duplex ISO9001 Certified
Specifications
Brand Name :
OE
Model Number :
SFP 155M 1310 D 10KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000PCS/month
Delivery Time :
5 work days
Packaging Details :
Carton
Wavelength :
TX 1310nm
Rate :
155M
Fiber Type :
Dual
DDM :
With
Distance :
10KM
Connector :
LC
Description

100BASE SM Fiber Optic SFP Module 1310nm 10KM Duplex LCConnector

PRODUCT FEATURES

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Compliant with MSA SFP Specification

Distance up to 10KM

Single 3. 3V Power supply

Operating data rate up to 155Mbps

Tx1310, 1310nm FP Laser, PIN-TIA

Dual LC Connector Interface

Hot Pluggable,Metal enclosure, for Lower EMI

DDM function optional

Digital Diagnostic Monitor Function Compatible with SFF-8472

2 years warranty

PRODUCT DESCRIPTION

The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

155Mb/S SFP Duplex Optical Transceiver Module Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector .The module data link up to 10KM in 9/125um single mode fiber.

This module is designed to be compliant with SFF-8472 SFP Multi-source Agreement (MSA)

Applications:


--100Base-LX Ethernet
--SONET OC-3/SDH STM-1
-- Fast Ethernet
-- Metro/Access Networks

Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note
Average Output Power POUT -9 -3 dBm Note (1)
Extinction Ratio ER 8.2 dB
Center Wavelength λC 1260 1310 1360 nm FP Laser
Spectrum Bandwidth(-20dB) σ 4 nm
Differential Line Input Impedance RIN 90 100 110 Ohm
Output Eye Mask Compliant with G.959(class 1 laser safety) Note (2)

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note
Receiver Sensitivity PIN -30 dBm Note (1)
Los Of Signal Assert PA -40 dBm
Los Of Signal De-assert PD -36 dBm Note (2)
LOS Hysteresis PA-PD 0.5 2 6 dB
Receiver Overload Pmax -PIN -3 dBm

Note (1): Measured with Light source 1310nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
