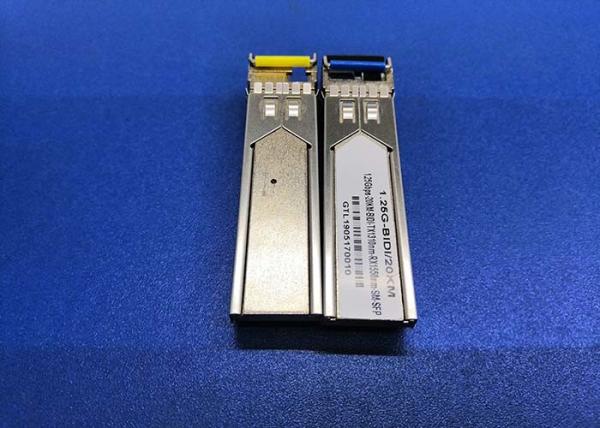

1310nm/1550nm 1000base Fiber Optic SFP Module Bi-Directional SM LC Fiber 10KM

PRODUCT DESCRIPTION

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

The transceiver consists of three sections: a LD laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

SFP BIDI Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550nm

The SFP transceivers are high performance, cost effective modules supporting 1.25Gbps/1.0625Gbps data-rate and 20km transmission distance with SMF.

Product Applications

NIC network cards

Switches

Routers

VPN equipment

Traffic control device

GAP

Fiber Media Converter

Firewall

Storage device

Telecommunication

Fiber Channel

PRODUCT FEATURES

+3.3V single power supply

Data-rate of 1.25Gbps/1.063Gbps operation

1310nm FP laser and PIN photodetector for 20km transmission

Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

Compatible with SONET OC-24-LR-1

Operating case temperature:

Commercial : 0 to +70°C

Industrial : -40 to +85°C

Digital Diagnostic Monitoring:

Internal Calibration or External Calibration

Specification of Transmitter

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Note (1): Measured with Light source 1550nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
