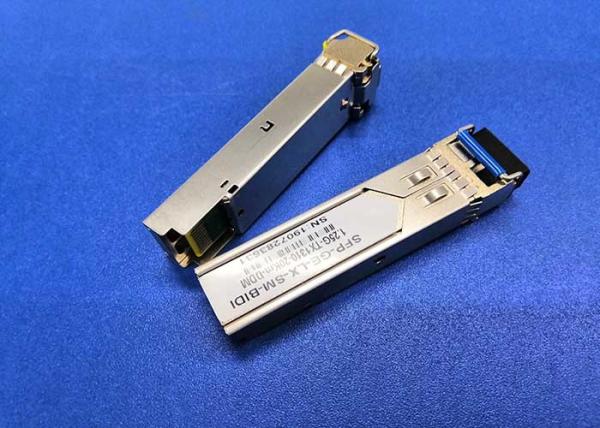

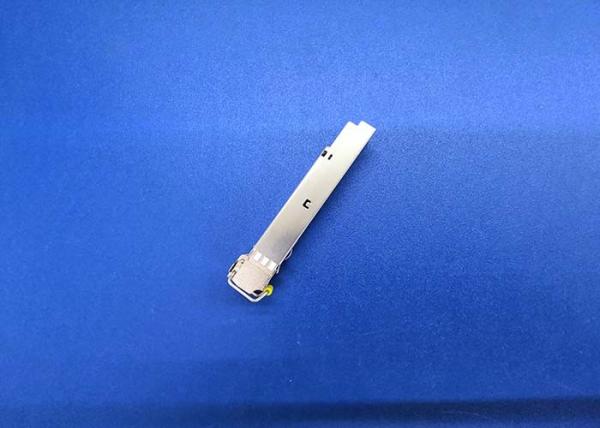

1310nm/1550nm SM Simplex LC Connector 1.25Gbps Fiber Optic SFP Module BIDI 40KM

APPLICATIONS

Switches

Routers

VPN equipment

Traffic control device

GAP

Telecommunication

Fiber Channel

Fiber Media Converter

Firewall

Storage device

NIC network cards

PRODUCT FEATURES

+3.3V single power supply

Compatible with SONET OC-24-LR-1

Operating case temperature:

Commercial : 0 to +70°C

Industrial : -40 to +85°C

Data-rate of 1.25Gbps/1.063Gbps operation

1310nm FP laser and 1550nm PIN-TIA for 40km transmission

Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

Digital Diagnostic Monitoring:

Internal Calibration or External Calibration

PRODUCT DESCRIPTION

Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 21dB link budge ensure this module 1000Base-LX Ethernet 40km application.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

1.25Gbps SFP BIDI Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1310nm.

Recommended Operating Conditions

Specification of Transmitter

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Note (1): Measured with Light source 1550nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
