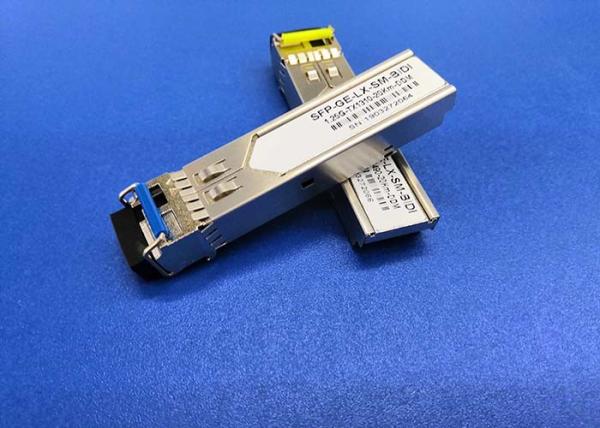

1.25Gb/S 60KM Fiber Optic SFP Module BIDI 1550/1490nm Simplex LC Connector
1.25Gb/S 60KM Fiber Optic SFP Module BIDI 1550/1490nm Simplex LC Connector
1.25Gb/S 60KM Fiber Optic SFP Module BIDI 1550/1490nm Simplex LC Connector
1.25Gb/S 60KM Fiber Optic SFP Module BIDI 1550/1490nm Simplex LC Connector
Specifications
Brand Name :
OE
Model Number :
SFP 1.25G 1550 BD 60KM
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
10000PCS/month
Delivery Time :
5 work days
Packaging Details :
Carton
Distance :
60KM
Rate :
1.25G
DDM :
With
Fiber Type :
Simplex
Wavelength :
TX 1550nm , RX 1490nm
Connector :
LC
Description

1.25Gb/S 60KM Distance Fiber Optic SFP Module BIDI 1550/1490nm Simplex LC

PRODUCT DESCRIPTION

1.25Gbps SFP BIDI 60KM Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550nm.

The SFP provides an optical link budget of 24 dB, but the precise link span length depends on multiple factors such as fiber quality, number of splices, and connectors.

This module is designed to be compliant with SFF-8472 SFP Multi-source Agreement (MSA)

The SFP transceivers are high performance, cost effective modules supporting 1.25Gbps/1.0625Gbps data-rate and 60km transmission distance with SMF.

PRODUCT FEATURES

Distance up to 60KM

Single 3. 3V Power supply

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Compliant with MSA SFP Specification

DDM function optional

Operating data rate up to 1.25/1.063Gbps

Tx1550/Rx1490, 1550nm DFB Laser, 1490nm PIN-TIA

Simplex LC Connector Interface

Digital Diagnostic Monitor Function Compatible with SFF-8472

Hot Pluggable,Metal enclosure, for Lower EMI

2 years warranty

Applications

1000Base-EX Ethernet

Metro/Access Networks

1×Fibre Channel

Other Optical Links

Recommended Operating Conditions

Parameter Symbol Unit Min Typ Max
Storage Temperature Range Ts ℃ 0 70
Power Supply Voltage Vcc V 3.135 3.465
Data Rate Gb/s - 1.25 -

Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note
Average Output Power POUT -2 2 dBm Note (1)
Extinction Ratio ER 8.2 dB
Center Wavelength λC 1500 1550 1580 nm DFB Laser
Side Mode Suppression Ratio SMSR 30 dB
Spectrum Bandwidth(-20dB) σ 1 nm
Differential Line Input Impedance RIN 90 100 110 Ohm
Output Eye Mask Compliant with G.959(class 1 laser safety) Note (2)

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note
Input Optical Wavelength λIN 1483 1490 1495 nm
Receiver Sensitivity PIN -26 dBm Note (1)
Los Of Signal Assert PA -35 dBm
Los Of Signal De-assert PD -28 dBm Note (2)
LOS Hysteresis PA-PD 0.5 2 6 dB
Receiver Overload Pmax -PIN -3 dBm

Note (1): Measured with Light source 1490nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)

1.25Gb/S 60KM Fiber Optic SFP Module BIDI 1550/1490nm Simplex LC Connector
