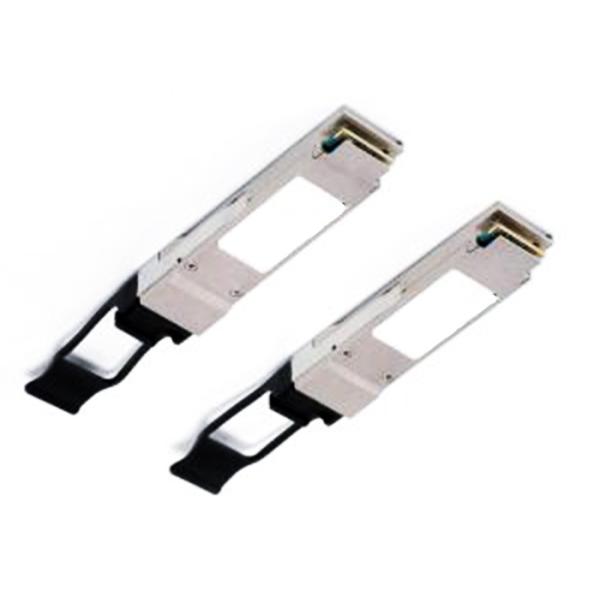

40Gbps QSFP Optical Module MMF 850nm / QSFP+ SR4 Module Up To 150m Four Channel
40Gbps QSFP Optical Module MMF 850nm / QSFP+ SR4 Module Up To 150m Four Channel
40Gbps QSFP Optical Module MMF 850nm / QSFP+ SR4 Module Up To 150m Four Channel
40Gbps QSFP Optical Module MMF 850nm / QSFP+ SR4 Module Up To 150m Four Channel
Specifications
Brand Name :
OE
Model Number :
QSFP+ 40G 850 SR4
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
3000PCS/month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Wavelength :
850nm
Distance :
150M
Power Supply :
+3.3V
DDM :
With
Rate :
40Gbps
Form Factor :
QSFP+
Cable Type :
MMF
Connector :
MTP/MPO
Description

40Gbps QSFP Optical Module MMF 850nm SR4 QSFP+ Up to 150m Four - Channel

PRODUCT FEATURES

Support 40GBASE-SR4/QDR application

Compliant to QSFP+ Electrical MSA SFF-8436

Multi rate of up to 10.3125Gbps per lane

Transmission distance up to 150m (OM3)

+3.3V single power supply

Low power consumption

Commercial: 0°C to +70 °C

RoHS compliant

PRODUCT DESCRIPTION

The 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.

Optical module also be called optical fiber module, the translation should be transceiver module. The function of the optical module is the photoelectric conversion, and the transmitter converts the electrical signal into the optical signal. After the transmission through the optical fiber, the receiving end converts the optical signal into the electrical signal. QSFP is a kind of optical module.

Optical fiber module classification: according to function:It includes optical receiving module, optical transmitting module, optical transceiver module and optical transmitting module

Applications

40G Ethernet

Infiniband interconnects

40G Telecom connections

Data Centers

Specifications
Parameter Symbol Min. Typ. Max. Unit Notes
Maximum Supply Voltage Vcc3 -0.5 - 4.0 V
Storage Temperature TS -40 - 85 °C
Operating Humidity - 5 - 95 %
Maximum Supply Voltage Vcc3 -0.5 - 4.0 V
Parameter Symbol Min. Typ. Max. Unit Notes
Power Supply Voltage Vcc 3.13 3.30 3.47 V
Power Supply Current Icc - - 300 mA
Case Operating Temperature Top 0 - 70 °C
Data Rate - - 40 - Gb/s
9/125um G652 SMF Lmax - - 150 m

Optical Characteristics

Table 5-Optical Characteristics

Parameter Symbol Unit Min Typ Max Notes
Optical transmitter Characteristics
Bit Rate BR Gbps 1.25 10.3125 -
Center Wavelength Range λc nm 830 850 870
RMS Spectral Width Δλ nm 0.65

Average Launch power

Tx_off

 Poff dBm -30
Launch Optical Power P0 dBm -6.0 1
Extinction Ratio ER dB 3
Optical Receiver Characteristics
Bit Rate BR Gbps 1.25 10.3125 -
Sensitivity@BER=E-12 BER dBm -10.2

Overload Input Optical

Power

 PIN dBm 2.5 2
Center Wavelength Range λc nm 820 880
LOS Assert - dBm -30
LOS De-Assert - dBm -12
LOS Hysteresis - dB 0.5 -

Note:

1. Coupled into 50/125 MMF.

2. Measured with PRBS 231-1 test pattern @10.3125Gbps.BER=E-12
