12F SM MPO Trunk Cable 9 / 125μm Female to Female Connector 3.0mm LSZH Round cable with 3M Polarity B

Designed for 40G LR4 PSM, 40G QSFP+ PLR4 optics direct connection and high-density data center.

MPO Fiber Patch cable/trunk cable is terminated with MPO connector on both ends. MPO Patch cable/trunk cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48 and 72 fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassettes with the new connector style on the cross-connect side of the patch panel.

The merits of MTP/MPO Patch cable/trunk cable generally include:

High quality—MTP/MPO Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.

Decreasing cable volume—MTP/MPO Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.

Time saving—With the special plug and play design, MTP/MPO Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.

MPO Fiber Patch cable is terminated with MPO connector on both ends. All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.

1, The Data Center application with high dense degree environment

2, The optical fiber to the building

3, The internal connector application in fiber equipment.

MPO products’ Details& Standard:

Cable Parameters-12F Microfiber cable

MPO Patch cable/trunk cable ’s Specification:

MPO End-Face 3D Interference Index

Features:

• Low insertion loss, high return loss
• MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
• Economical solution for mass-termination of fiber
• Designed for low loss and standard loss SM and MM applications

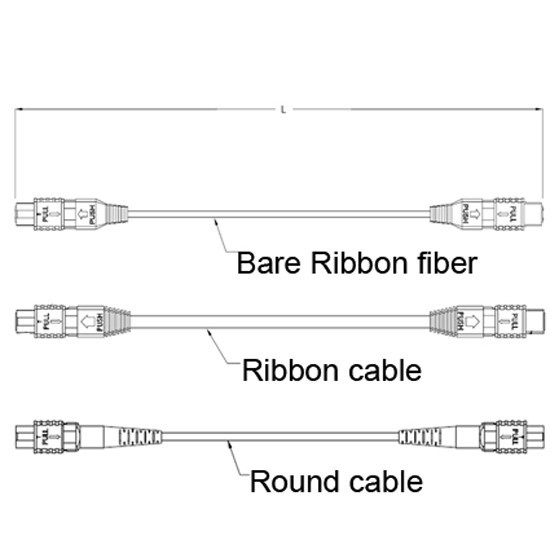

• Ruggedized round cable, oval cable and bare ribbon options available
• Color coded housings available to differentiate fiber type, polish type and/or connector grade
• Good in repeatability and exchangeability

Packaging & Delivery:

Packaging Details

1.Fumigation of wood drum, plywooden drum or wooden drum
2.carton box
3.customized

Port: Shenzhen

Packaging

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.

1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

---

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
