CPRI Outdoor Duplex Fiber Patch Cable Anti - UV
CPRI Outdoor Duplex Fiber Patch Cable Anti - UV
CPRI Outdoor Duplex Fiber Patch Cable Anti - UV
CPRI Outdoor Duplex Fiber Patch Cable Anti - UV
CPRI Outdoor Duplex Fiber Patch Cable Anti - UV
CPRI Outdoor Duplex Fiber Patch Cable Anti - UV
CPRI Outdoor Duplex Fiber Patch Cable Anti - UV
CPRI Outdoor Duplex Fiber Patch Cable Anti - UV
Specifications
Brand Name :
OMC or OEM
Model Number :
CPRI LC-LC SM Duplex 2F 7mm 30M
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T,creit card, paypal, alipay
Supply Ability :
300000 pcs per month
Delivery Time :
3-5 days after payment confirmed
Packaging Details :
One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Quality Level :
IEC Grade C
Insertion loss :
<0.2dB (Typical), 0.3dB (Max)
Return Loss :
UPC>50dB
100% 3D interference tested :
Available
Clean end face ferrule :
100% clean, no dust, no water, no scratch
OEM service :
OEM is available
Certification :
ROHS and ISO
Description

CPRI Outdoor LC - LC Fiber optic patch cables OS2 SM Duplex ARMORED patch cord 30M LSZH 7mm Black,Anti-UV

CPRI fiber patch cable for the new generation wireless base stations(WCDMA/TD-SCDMA/WiMax/GSM). Such productscan be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditionsand adverse weather conditions. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becomingthe standard connectorinterface.

Products info

Connector LC to LC Jacket OD 7.0mm
Fiber Mode OS2 SMF Jacket Color Black
Polish Type UPC to UPC Wavelength 1310/1550nm
Fiber Type Duplex Jacket Material LSZH outdoor/indoor
Insertion Loss Typical 0.25dB Return Loss ≥50dB
Operating Temperature -40°C to 75°C Storage Temperature -45°C to 85°C

Cable specification

Fiber Count

CableDimension

mm

CableWeight

kg/km

Tensile (N)

 Crush(N/100mm)

Min. Bend Radius

(mm)

Range of Temperature
LongTerm Short Term LongTerm ShortTerm Dynamic Static
2 7.0 42 200 400 300 1000 20D 10D -20-+70
2 5.0 24 150 300 300 1000 20D 10D -20-+70

Note:

1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;

3. D is outer diameter of the round cable;

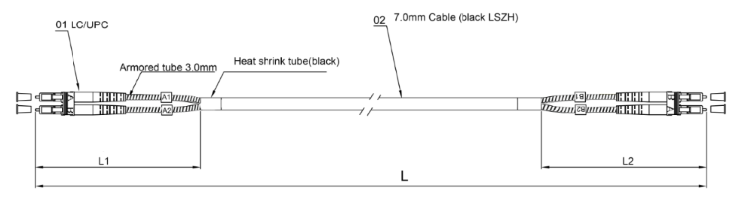

Cable drawing.

CPRI Outdoor Duplex Fiber Patch Cable Anti - UV

Application

· 3G,4G base station used

· Aerospace & Defence

· Equipment diagnosis

· FTTA ,FTTP, FTTX,WIMAX

· BBU, RRU, RRH, LTE

CPRI Outdoor Duplex Fiber Patch Cable Anti - UV

CPRI Outdoor Duplex Fiber Patch Cable Anti - UV
