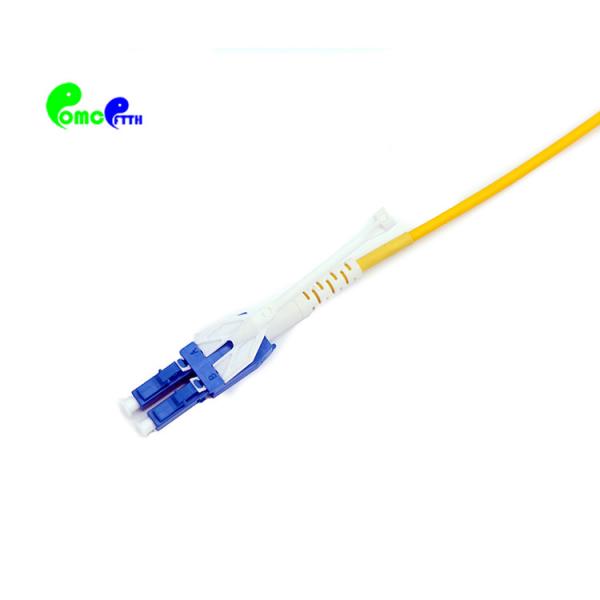

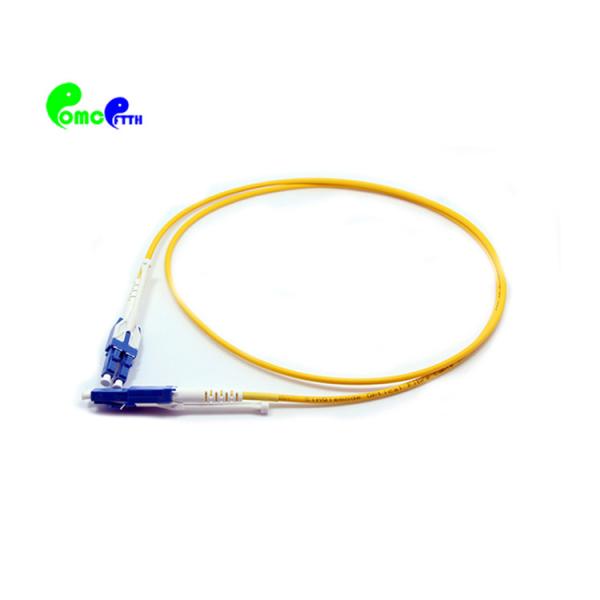

Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Specifications
Brand Name :
OMC or OEM
Model Number :
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T,creit card, paypal, alipay
Supply Ability :
300000 pcs per month
Delivery Time :
3-5 days after payment confirmed
Packaging Details :
One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Certification :
ROHS and ISO
Products :
Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm
Insertion loss :
≤0.3dB(IEC Grade C); ≤0.12dB(IEC Grade B)
Return Loss :
SM UPC ≥ 50dB(min); SM APC ≥ 60dB(min); MM PC ≥ 35dB(min)
Clean end face ferrule :
100% clean, no dust, no water, no scratch
Pull Tab :
Yes for pull function in installation
Fiber mode :
Single Mode / OM1 / OM2 / OM3
Cable type :
2F Uni-tube cable 3.0mm OD
AB Polarity Switchable :
Yes
Description

Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm

The uni-boot LC connector With Pull Tap is a Chinese independent intellectual property rights connector. It has a unique design that allows to switch polarity without using any tooling. The Pull Tap is very easy to grab to pull out from LC adapter. Makes the installation Job become easy and high efficient.

The Uni-boot LC patch cable utilizes a special “round duplex” cable that allows duplex transmission within a single 2mm cable ,cable materials including LSZH, Plenum and Riser.

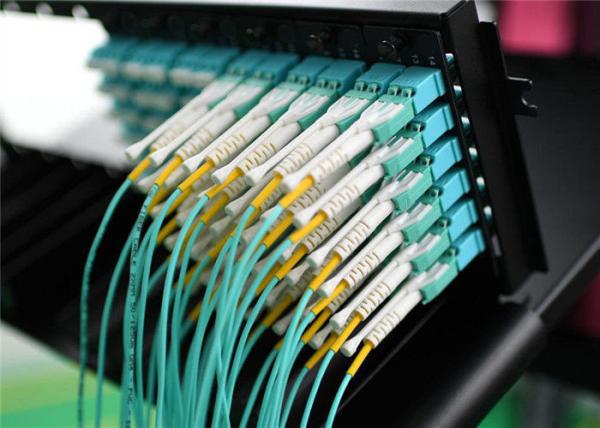

Our Uni-boot LC fiber patch cable reduces cable management space by up to 30% compared to standard patch cables. It reduces cable management space comparing to standard patch cables. As a result of these features our uniboot patch cable offers improved airflow and visibility of equipment within a high density network environment.

OMC's LC Uniboot cable assemblies offer the best solution for high-density applications, data centers, interconnect and cross connector, private networks and premise installations.

Products Materials

Optical specification:

Fiber Connector

Pull Tab Uniboot LC to

Pull Tab Uniboot LC

Fiber Type

SM:Yellow/Blue/White;

OM1&OM2: Orange;

OM3:Aqua;

OM4:Aqua/Violet/ Magenta

Cable OD&Jacket

2.0mm/3.0mm/3.5mm PVC/LSZH

Fiber Counts

2 Fibers

Insertion Loss

≤0.3dB(IEC Grade C)

≤0.12dB(IEC Grade B)

Return Loss

SM UPC ≥ 50dB(min)

SM APC ≥ 60dB(min)

MM PC ≥ 35dB(min)

Pull-out Force

100N

Durability

500 Cycles

AB Polarity Switchable

Available

Operating Temperature

-40 to + 85°C

Geometric Specification( if Customer requested)

Items

Parameter

Polishing

PC

APC

ROC

LC

7~ 25

5 ~ 12

Apex Offset

≤ 50

Fiber Spherical Height

±100

Angle

± 0.5

8 ± 0.5

End-face Quality (SM)

SM UPC SM APC

Zone

Range (μm)

Scratches

Defects

Reference

A: Core

0 to 25

None

None

IEC 61300-3

-35:2015

B: Cladding

25 to 115

None

None

C: Adhesive

115 to 135

None

None

D: Contact

135 to 250

None

None

E: Rest of ferrule

None

None

End-face Quality (MM)

MM PC

Zone

Range (μm)

Scratches

Defects

Reference

A: Core

0 to 65

None

None

IEC 61300-3

-35:2015

B: Cladding

65 to 115

None

None

C: Adhesive

115 to 135

None

None

D: Contact

135 to 250

None

None

E: Rest of ferrule

None

None

Length Tolerance

Overall Length(L)(m)

length of tolerance(cm)

0<L<1

+5/-0

1<L<10

+10/-0

10<L<40

+15/-0

40<L

+0.5% x L/-0

Product Highlights

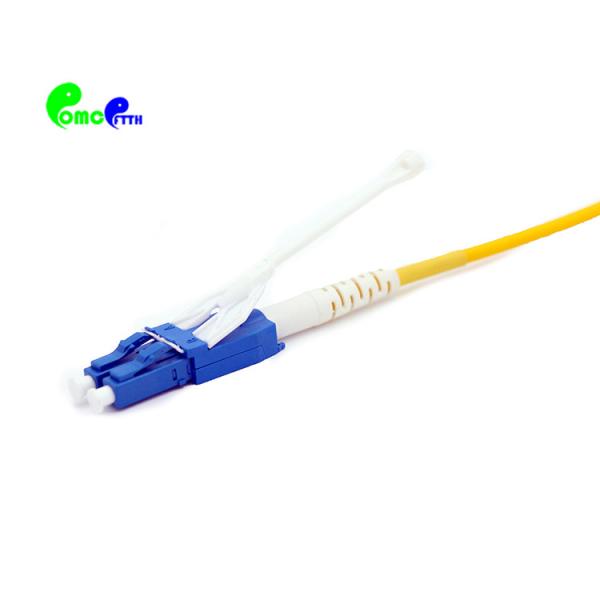

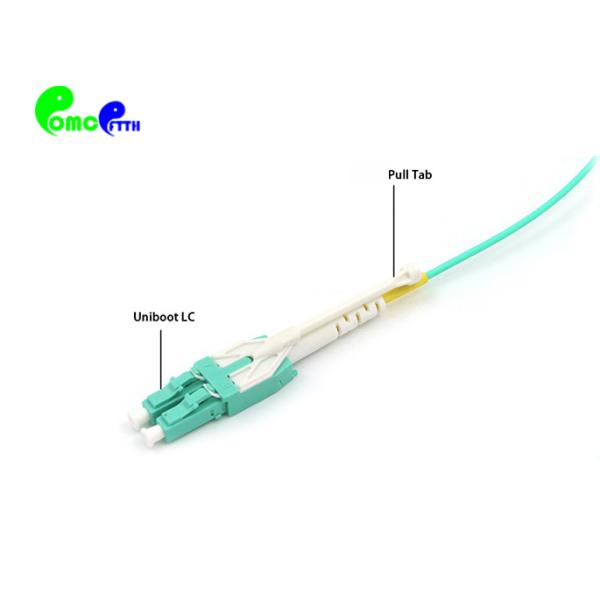

Uniboot LC Pull tab patch Cable, Easy for Plug and unplug With the Pull Tab.

Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm

High Quality Fibre Optic Cable Guarantee

Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.

Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm

Polarity Switcha Uniboot LC - LC Duplex Fiber optic patch cables with Pull Tab Single Mode / OM1 / OM2 / OM3 3.0mm

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.
