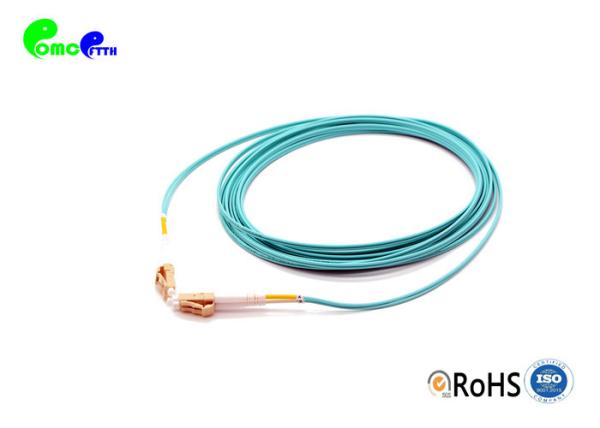

OM3 50 / 125 Multimode LC to LC 10G Fiber Patch Cord 2.0mm LSZH Zipcord for 10G application data center

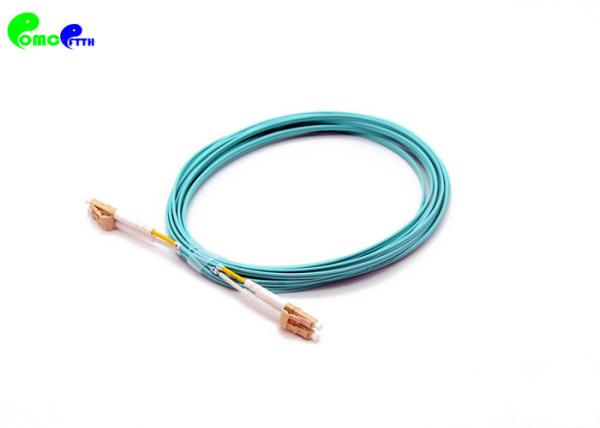

OM3 50 / 125 Multimode LC to LC 10G Fiber Patch Cord 2.0mm LSZH Zipcord for 10G application data center
OM3 50 / 125 Multimode LC to LC 10G Fiber Patch Cord 2.0mm LSZH Zipcord for 10G application data center
OM3 50 / 125 Multimode LC to LC 10G Fiber Patch Cord 2.0mm LSZH Zipcord for 10G application data center
Specifications
Brand Name :
OMC or OEM
Model Number :
OM3 50 / 125 Multimode LC to LC 10G Fiber Patch Cord 2.0mm LSZH Zipcord for 10G application data center
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T,creit card, paypal, alipay
Supply Ability :
300000 pcs per month
Packaging Details :
One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Delivery Time :
3-5 days after payment confirmed
Certification :
ROHS and ISO
Products :
OM3 50 / 125 Multimode LC to LC 10G Fiber Patch Cord 2.0mm LSZH Zipcord for 10G application data center
Insertion loss :
<0.2dB (Typical), 0.3dB (Max)
Return Loss :
PC>35dB
Clean end face ferrule :
100% clean, no dust, no water, no scratch
Fiber&Cable :
BIF OM3 50/125 2.0mm Duplex
Polairty :
A to B
Description

OM3 50 / 125 Multimode LC to LC 10G Fiber Patch Cord 2.0mm LSZH Zipcord for 10G application data center

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.

The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.


This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.

Products info

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM3 50/125μm BIF
Wavelength 850/1300nm 10G Ethernet Distance 300m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB
Fiber Grade G651 Minimum Bend Radius 7.5mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Cable Jacket LSZH Cable Diameter 2.0x4.1mm
Polarity A(Tx) to B(Rx) Operating Temperature -20~70°C

End-face Quality (MM)

MM PC

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None

IEC 61300-3

-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Bend Insensitive Fiber Optic Cable Structure

A unique refractive trench with low refractive index glass layer in BIF, which reduces in light dispersion upon twisting and bending, ensuring network transmission stably and fast.

OM3 50 / 125 Multimode LC to LC 10G Fiber Patch Cord 2.0mm LSZH Zipcord for 10G application data center

Applications


Telecommunications, Cable TV
LAN, WAN, MAN
Measurement
Sensor technologies
Medical instrumentation and measurement techniques
Industrial applications

Technical performance

YOFC bend insensitive fiber

7.5mm minimum bend radius

Insertion loss and return loss testing

End-face inspection

3D interferometer test



Packaging & Labeling

This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.

High Quality Fibre Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.

OM3 50 / 125 Multimode LC to LC 10G Fiber Patch Cord 2.0mm LSZH Zipcord for 10G application data center

How to Choose The Right Fiber Optic Cable Type?

Designation Fiber Dia.(μm) Type Fast Ethernet 100BASE-FX 1 Gigabit Ethernet 1000BASE-SX 1 Gigabit Ethernet 1000BASE-LX 10Gbps Ethernet 10GBASE 40Gbps Ethernet 40GBASE SR4 100Gbps Ethernet 100GBASE SR4
OM1 62.5/125 Multimode 2000 Meters 275 Meters 550 Meters 33 Meters Not supported Not supported
OM2 50/125 Multimode 2000 Meters 550 Meters 550 Meters 82 Meters Not supported Not supported
OM3(Laser Optimized) 50/125 Multimode 2000 Meters 550 Meters 550 Meters 300 Meters 100 Meters(SR4) 100 Meters(SR4)
OM4(Laser Optimized) 50/125 Multimode 2000 Meters 550 Meters 550 Meters 400 Meters 150 Meters(SR4) 150 Meters(SR4)
Singlemode 9/125 Singlemode 2000 Meters 5km at 1310nm 5km at 1310nm 10km at 1310nm N/A N/A

PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

How to correctly choose between PVC, LSZH and OFNP?

Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.

OM3 50 / 125 Multimode LC to LC 10G Fiber Patch Cord 2.0mm LSZH Zipcord for 10G application data center

Company Information

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
