100% Core Filling Outside Plant Fiber Optic Cable Durable High Tensile Strength
100% Core Filling Outside Plant Fiber Optic Cable Durable High Tensile Strength
Specifications
Brand Name :
OMC or OEM
Model Number :
Stranded Loose Tube No-metallic Strength Member No-Armored
Place of Origin :
China
MOQ :
500M
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal, Credit Card
Supply Ability :
1000000KM per month
Delivery Time :
Within a week
Packaging Details :
1KM in a wooden drum
Place of Origin: :
Guangdong, China (Mainland)
Brand Name: :
OEM or OMC
Model Number: :
Stranded Loose Tube No-metallic Strength Member No-Armored
Fiber Count: :
2-144F
Flammability Rating: :
LSZH
Coating Color: :
Black
Tensile Strength (long/short term): :
400/1320N
Crush Load (long/short term): :
200/1000 (N/100mm)
200/1000 (N/100mm): :
10D/20D (mm)
Operating Temperature: :
-20 to +60°C
Certification :
ROHS and ISO
Description

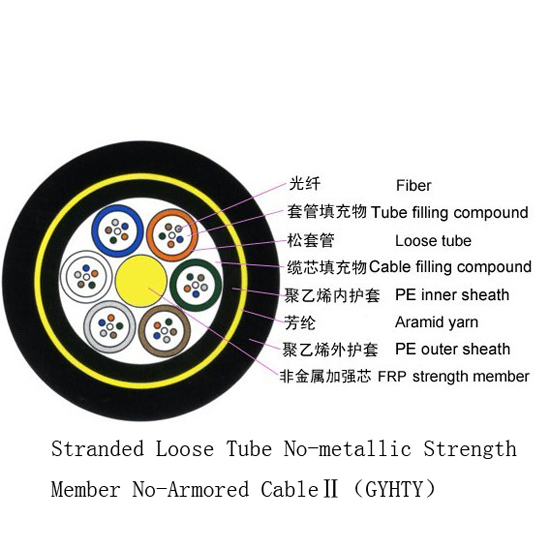

Stranded Loose Tube No-metallic Strength Member No-Armored CableⅡ GYHTY Outdoor Fiber Cable

Product details

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. Then, a layer of aramid yarn is applied as additional strength member and the cable is completed with a polyethylene (PE) outer sheath.

Characteristics

  • Good mechanical and temperature performance
  • Aramid yarn strength member ensures good performance of tensile strength
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Crush resistance and flexibility
  • The following measures are taken to ensure the cable watertight:
  • Single Fiber Reinforced Plastic as the central strength member
  • Loose tube filling compound
  • 100% cable core filling

Standards: IEC 60794-1.

Technical Parameters.

Part No. Fibers Tubes

Cable OD

(mm)

Weight

Kg/km

Tensile strength

Long term/short term

(N/1m)

Crush resistance

Long term/short term

(N/1m)

Bending Radius

Static/Dynamic

(mm)
GYFTY-2~6X 2~6 1 10.7 90 600/1500 300/1000 10D/20D
GYFTY-8~12X 8~12 2 10.7 90 600/1500 300/1000 10D/20D
GYFTY-14~18X 14~18 3 10.7 90 600/1500 300/1000 10D/20D
GYFTY-20~24X 20~24 4 10.7 90 600/1500 300/1000 10D/20D
GYFTY-26~30X 26~30 5 10.7 90 600/1500 300/1000 10D/20D
GYFTY-32~36X 32~36 6 10.7 90 600/1500 300/1000 10D/20D

Note:

Suffix X denotes fiber type.

The nominal value of the PE outer sheath thickness is 1.8mm. The nominal value of the PE inner sheath thickness is 0.8mm.

100% Core Filling Outside Plant Fiber Optic Cable Durable High Tensile Strength

Package

OMC offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.

100% Core Filling Outside Plant Fiber Optic Cable Durable High Tensile Strength
