Specifications
Brand Name :
OMC or OEM
Model Number :
H010
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, Credit Card
Supply Ability :
100000 pcs per month
Delivery Time :
3-7 days
Packaging Details :
One piece in a paper carton
Place of Origin: :
Guangdong, China (Mainland)
Brand Name: :
OMC or OEM
Model Number: :
H010
Application: :
Telecom
Certification: :
RoHS
Color: :
Black
Material: :
PC, ABS, PPR
Warranty: :
3 Years
Dimension: :
430x180x125 (mm)
Weight: :
2500g-2825g
cable size: :
Φ8 —Φ20(mm)
Capacity: :
Bunchy: 12—96 (Cores)
cable port: :
6 pieces
Description

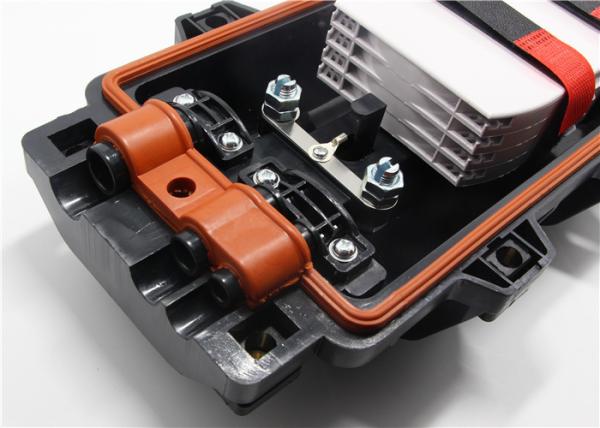

H010 Inline type 6 port Black IP65-68 Plastic Fiber Optic Joint Closure

FOSC is a device which have function of optical transmission link, providing several of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.

OMCH010

1. Scope of application

This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

The scope of application is: aerial, underground, wall-mounting, duct-mounting, handhole-mounting. The ambient temperature ranges from -40℃ to +65℃.

2. Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (LxWxH) 430x180x125 (mm)
Weight (excluding outside box) 2500g-2825g
Number of inlet/outlet ports 3 (pieces) on each side (total 6 pieces)
Diameter of fiber cable Φ8—Φ20 (mm)
Capacity of FOSC

Bunchy: 12—96 (Cores)

Ribbon: max. 144(Cores)

2.2 Main components

No. Name of components Quantity Usage Remarks
1 Housing(bottom) 1 set Protecting fiber cable splices in whole

Internal diameter:

430*186*63 (mm)
2 Housing(cover) 1 set Protecting fiber cable splices in whole

Internal diameter:

430*186*63(mm)
3

Fiber optic splice tray

(FOST)

 Max.6 trays (bunchy) or Max.4trays (ribbon) Fixing heat shrinkable protective sleeve and holding fibers Suitable for: Bunchy: 12,24(cores) Ribbon: 3 (pieces)
4 Foundation 1 set Fixing fiber cable, reinforced core and FOST
5 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
6 port plug 6 pieces Sealing empty ports
7 Fixed bolt 6 sets Fixing the house

2.3 Main accessories and special tools

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Earthing wire 1 piece Putting through between earthing devices To put through as per actual requirement
7 Abrasive cloth 1 piece Scratching fiber cable
8 Labeling paper 1 piece Labeling fiber
9 M8 Special wrench 1 pieces Fixing bolts of housing and insert plate
10 M10 Special wrench 1 piece Tightening nut of reinforecd core
11 Instruction manual 1 piece Standard installation

2.4 package

NO. specification carton size(cm) capacity N.W Remarks
1 inner box 43*19*14 1pcs 2.6-2.9kg Configuration as per weight
2 outer box 74*40*45 10pcs 26-29kg Configuration as per weight
